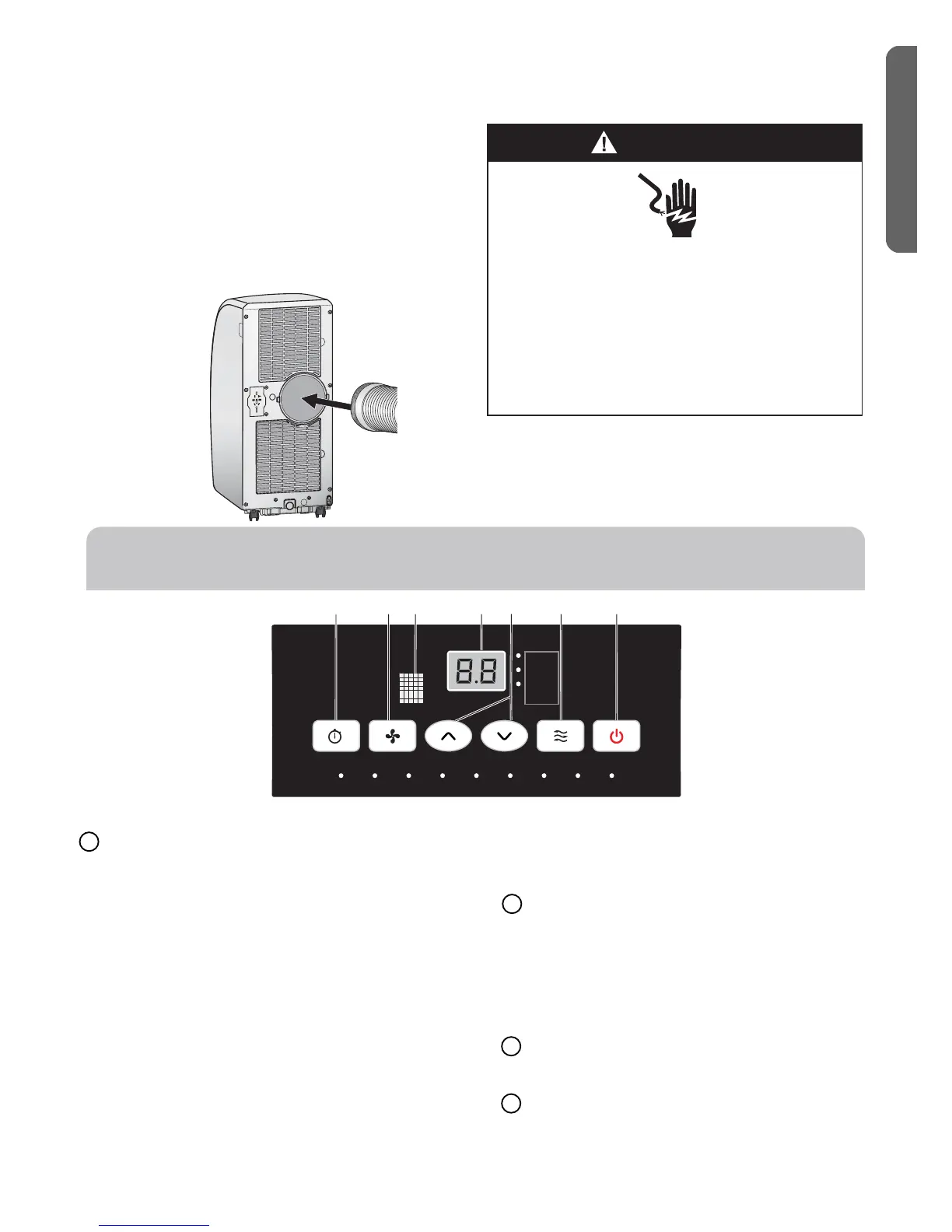

STEP 5 - CONNECT EXHAUST HOSE
TO THE AIR CONDITIONER
IMPORTANT: When connecting the hose, the air conditioner
must be close enough to the window that you will not
dislodge the window seal plate. Once the hose is connected,
move the air conditioner 20” (51 cm) from the wall.
1. Align the notches on the connector end of the exhaust
hose with the ridges in the opening on the back of the air
conditioner.
2. Holding the air conditioner with one hand, snap the
connector end of the hose into the air outlet on the back
of the air conditioner.
CONTROL PANEL
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Ïäìïøõè÷òçòöòæäñõèöøï÷ìñçèä÷ëĤõèòõ
electrical shock.
ENGLISH
STEP 6 - COMPLETE INSTALLATION
1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Reset button on the power cord to ensure the
safety plug is providing power to the air conditioner.
7
Timer
°C
Hr
°F
High Low Water Full Cool Fan Dehum Sleep POWER
A B C D E F G
BUTTONS
A TIMER BUTTON
Program a time from (1-hour to 24-hours) for the air
æòñçì÷ìòñèõ÷ò÷øõñØģòõØñàëèñäÝìðèÍèïäüìö
programmed, the Timer indicator light will illuminate.
While the air conditioner is operating:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number
of hours you want the air conditioner to continue to
òóèõä÷èåèéòõè÷øõñìñêØģ
NOTE: àäì÷äóóõòûìðä÷èïü%öèæòñçöéòõ÷ëèÝøõñ¡Øģ
time to be saved.
While the air conditioner is o:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number
of hours you want the air conditioner to remain o before
turning On.
NOTE: Wait approximately 5 seconds for the Turn-On
time to be saved.
To cancel the timer:
• Press the Timer button once, the hours remaining will
ĥäöëóõèöö÷ëè÷ìðèõåø÷÷òñäêäìñäñç÷ëè÷ìðèõúìïïåè
canceled.
B FAN SPEED BUTTON
Ýëèéäñöóèèçæäñåèäçíøö÷èçéõòðÕòúöóèèç÷òÑìêë
speed when the air conditioner is in operation.
NOTE: Ýëèéäñöóèèçæäññò÷åèäçíøö÷èçúëèñ÷ëèøñì÷ìö
in Dehum mode.
•Press the Fan Speed button to toggle among the two
speeds. The corresponding fan speed indicator will
illuminate.
C REMOTE CONTROL SIGNAL RECEIVING WINDOW
Aim the Remote Control at this window so the Control will
receive the signal.
D CONTROL PANEL DISPLAY
Displays the Set Temperature in degrees Fahrenheit or
degrees Celsius, or the hours remaining in a Time Delay.
The corresponding indicator light will illuminate.
