HSU-09(12)HA/HVA/RHA103/R2(DB) Capacity
43
Domestic air conditioner
outdoor temp.
(humidity 46%)
DB/WB 16℃
19
℃
22℃
15
℃
2069 2251 2339
25
℃
2078 2210 2321
30
℃
2451 2623 2694
35
℃
2765 2890 2971
40
℃
3075 3154 3249
45
℃
3429 3600 3641
HSU-09HVA103/R2(DB)
performance curves

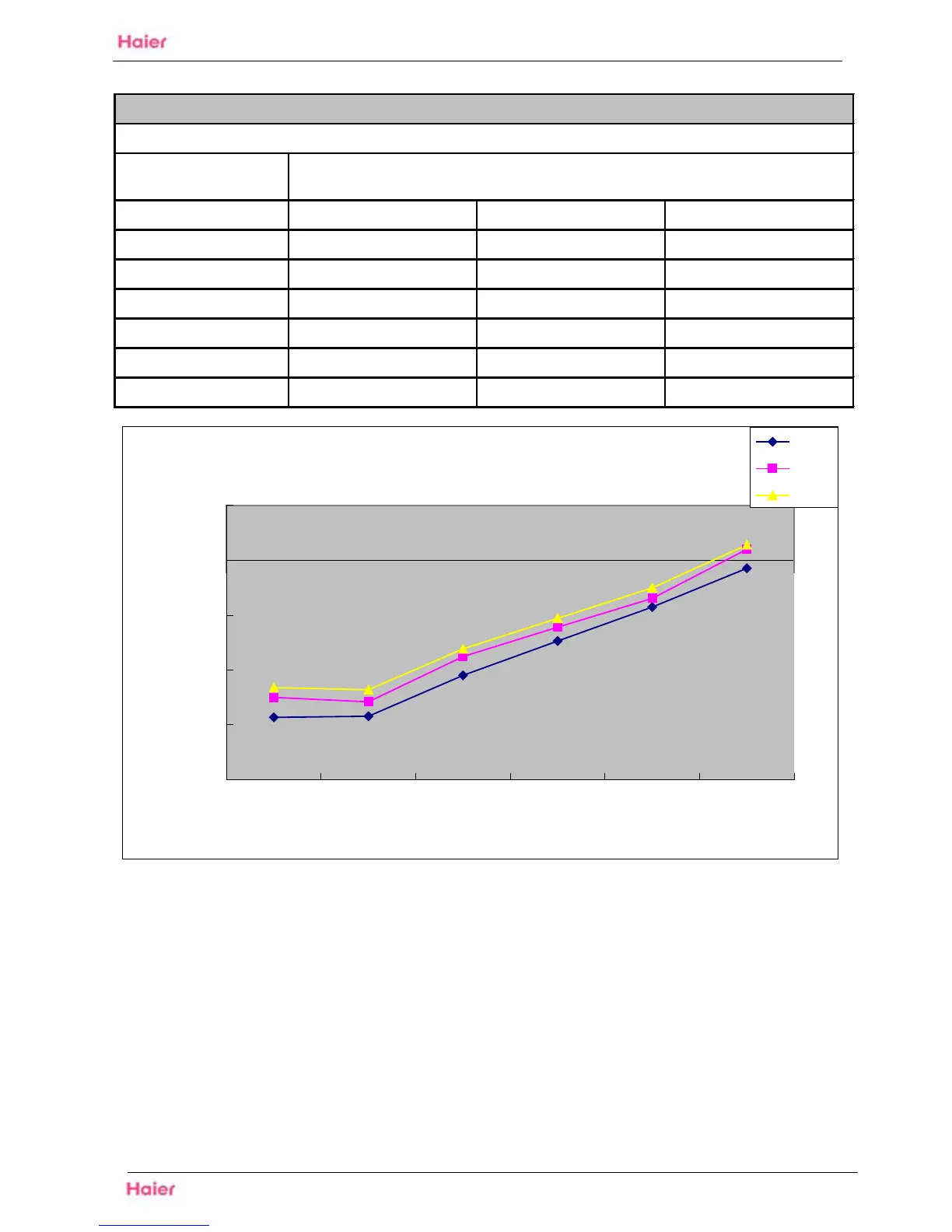

COOLING DISCHARGE PRESSURE
.talbe
in
door temp.
COOLING DISCHARGE PRESSURE
1500
2000
2500
3000
3500
4000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
DISCHARGE PRESSURE
16℃
19℃
22℃
