HSU-09(12)HA/HVA/RHA103/R2(DB) Capacity
54
Domestic air conditioner
outdoor temp.
(humidity 46%)
DB/WB 15℃
20
℃
25℃
－
15
℃
2106 2274 2439
－
10
℃
2172 2363 2585
－
5
℃
2427 2543 2752
0℃ 2393 2563 2764
5
℃
2552 2733 2858
10℃ 2920 3065 3370
15
℃
3419 3602 3670
20
℃
3060 3433 3603

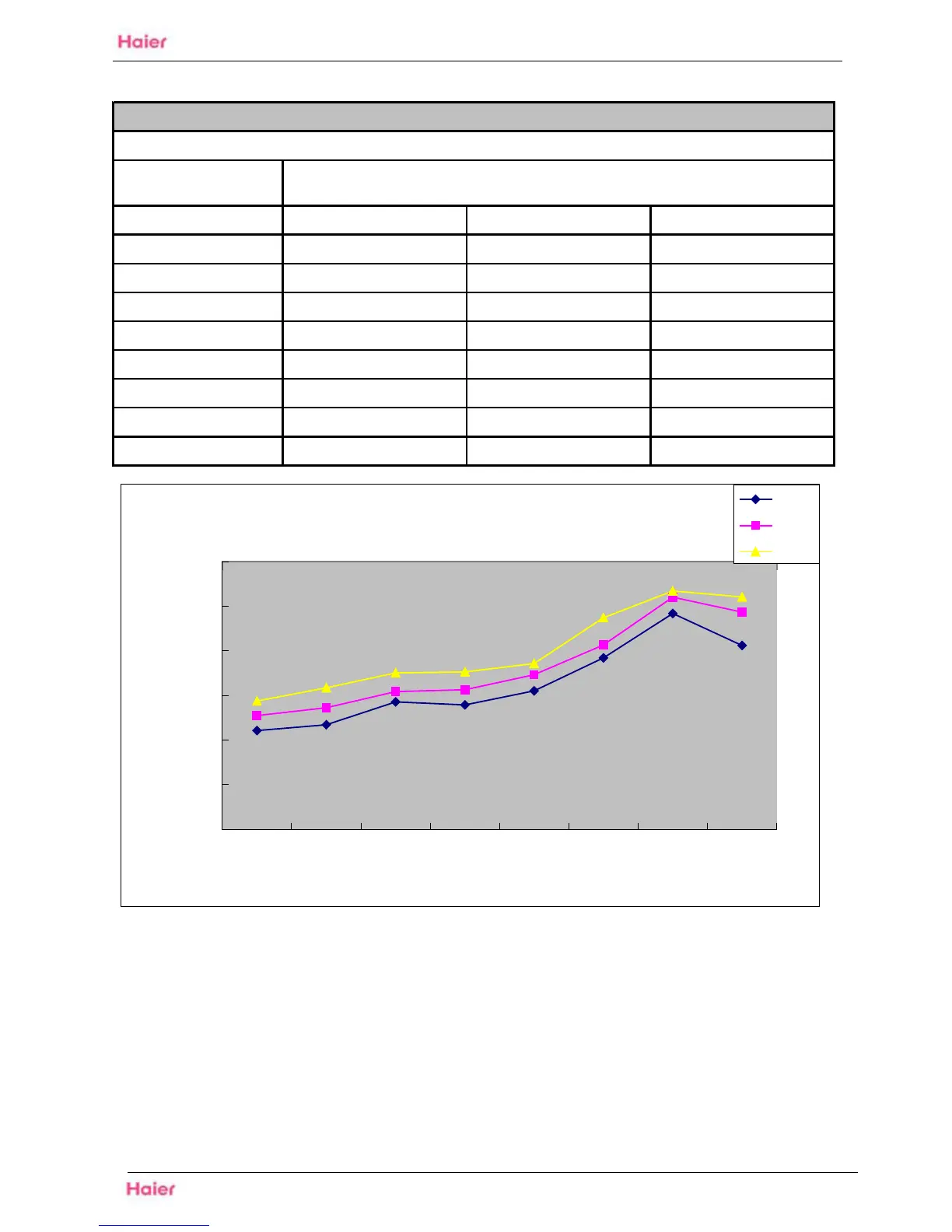

HSU-09HA103/R2(DB) performance curves
HEATING DISCHARGE PRESSURE.talbe
in
door temp.
HEATING DISCHARGE PRESSURE
1000
1500
2000
2500
3000
3500
4000
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
DISCHARGE PRES SURE
15℃
20℃
25℃
9.7 Heating Discharge Pressure Curves
