HSU-09(12)HA/HVA/RHA103/R2(DB) Capacity
53
Domestic air conditioner
outdoor temp.
(humidity 46%)
DB/WB 16℃
19
℃
22℃
15
℃
619 688 721
25
℃
645 711 729
30
℃
648 716 728
35
℃
658 718 750
40
℃
692 758 790
45
℃
721 788 818

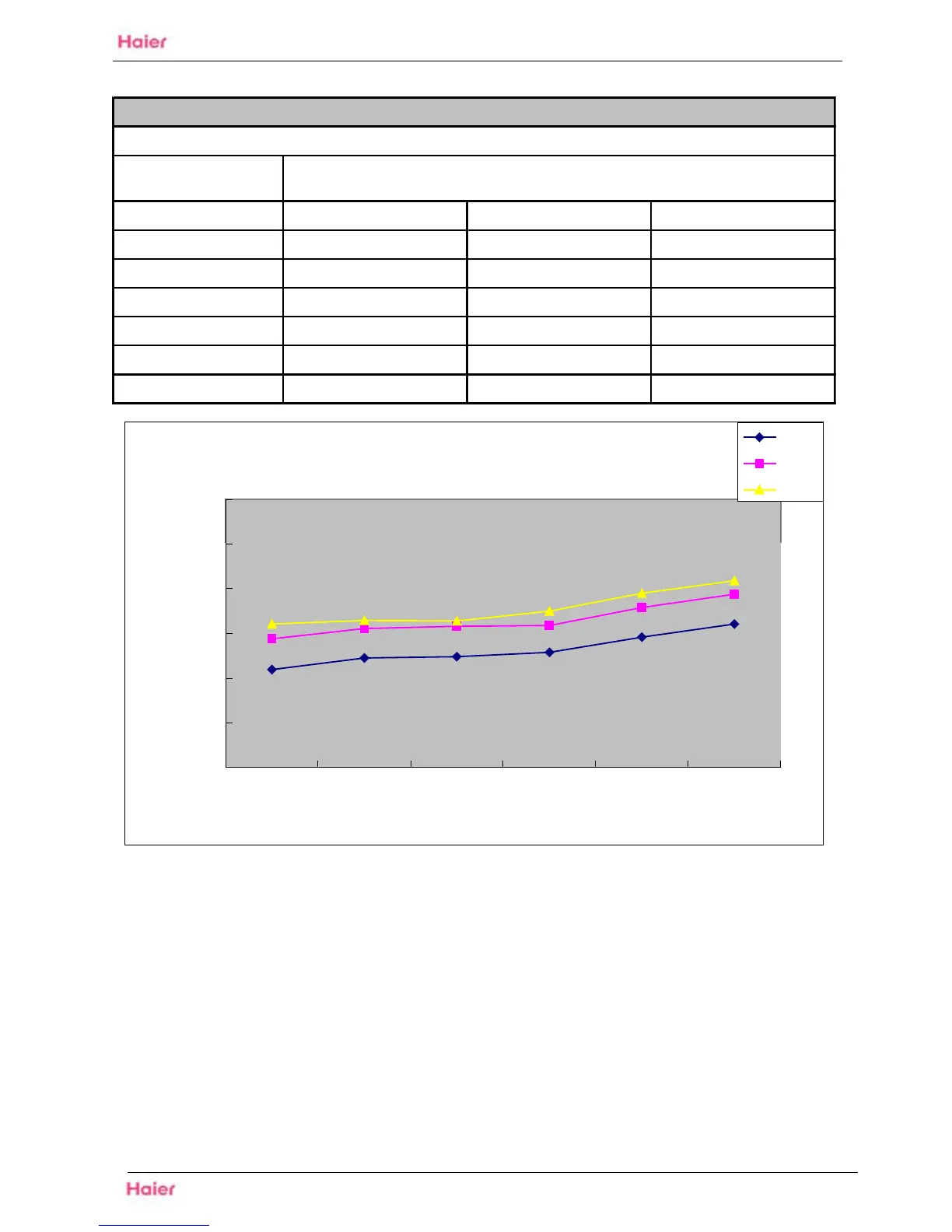

HSU-12RHA103/R2(DB) performance curves
COOLING SUCTION PRESSURE
.talbe
in
door temp.
COOLING SUCTION PRESSURE
400
500
600
700
800
900
1000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
D
ISCHARGE PRESSURE
16℃
19℃
22℃
