Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
1 2 345 6 7 Average
standard
deviation
data of cycle yr.m.d
2011.04.11 2011.04.11 2011.04.12 2011.04.12 2011.04.13 2011.04.14 2011.04.15
Base Load
Part A Part B Part B Part A Full load Full load Full load
Measured Programme
cotton 40℃ cotton60℃ cotton40℃ cotton 60℃
Main wash cold water
consumption
L 12.5 13.0 13.2 12.5 18.8 18.7 18.9 15.4 3.218
Main wash hot water consumption L
Total hot water onsumption L
Total cold water onsumption L 41.0 41.6 39.7 39.9 47.6 41.3 45.1 42.3 2.933
Total water onsumption L 41.0 41.6 39.7 39.9 47.6 41.3 45.1 42.3 2.933
Unit water consumption L/kg 5.9 5.9 5.7 5.7 6.8 5.9 6.4 6.0 0.419
Annual water consumption for
total 220 cycles （（AWc））
L
Main wash duration min 116 137 117 137 137 138 138 131 10.212
Heating time min 12 20 12 20 21 21 21 18 4.220
Programme time min 166 188 166 188 187 185 187 181 10.296
Electrical energy consumption
（
for programme）
kWh 0.624 0.897 0.623 0.880 0.858 0.879 0.880 0.81 0.125
Total cold water correction energy kWh 0.013 0.013 0.017 0.015 0.025 0.017 0.019 0.017 0.004
Total hot water correction energy kWh
Total energy consumption（
Wt） kWh 0.637 0.910 0.640 0.895 0.883 0.896 0.899 0.823 0.126
Unit energy consumption Kwh/kg 0.091 0.130 0.091 0.128 0.126 0.128 0.128 0.118 0.018
Energy consumption for (LU) kwh
Energy consumption for (LO) kwh
Energy consumption for （
O） kwh
Energy consumption for
programme running
kwh
kwh
Energy consumption for SAEc kwh
Energy Efficiency Index
%
A+++ A++ A+ A
B C D
Energy Efficiency Class
9309
AEc
SAEc
EEI
=
=
=
0.05
=
=
1.61
1.63
48.4
Energy consumption for single Low power mode in total 220 cycles
181.04
Annual energy consumption for
total 220 cycles （
AEc）
184.33
Energy consumption for total 220 cycles
=Wt*220
380.70
=

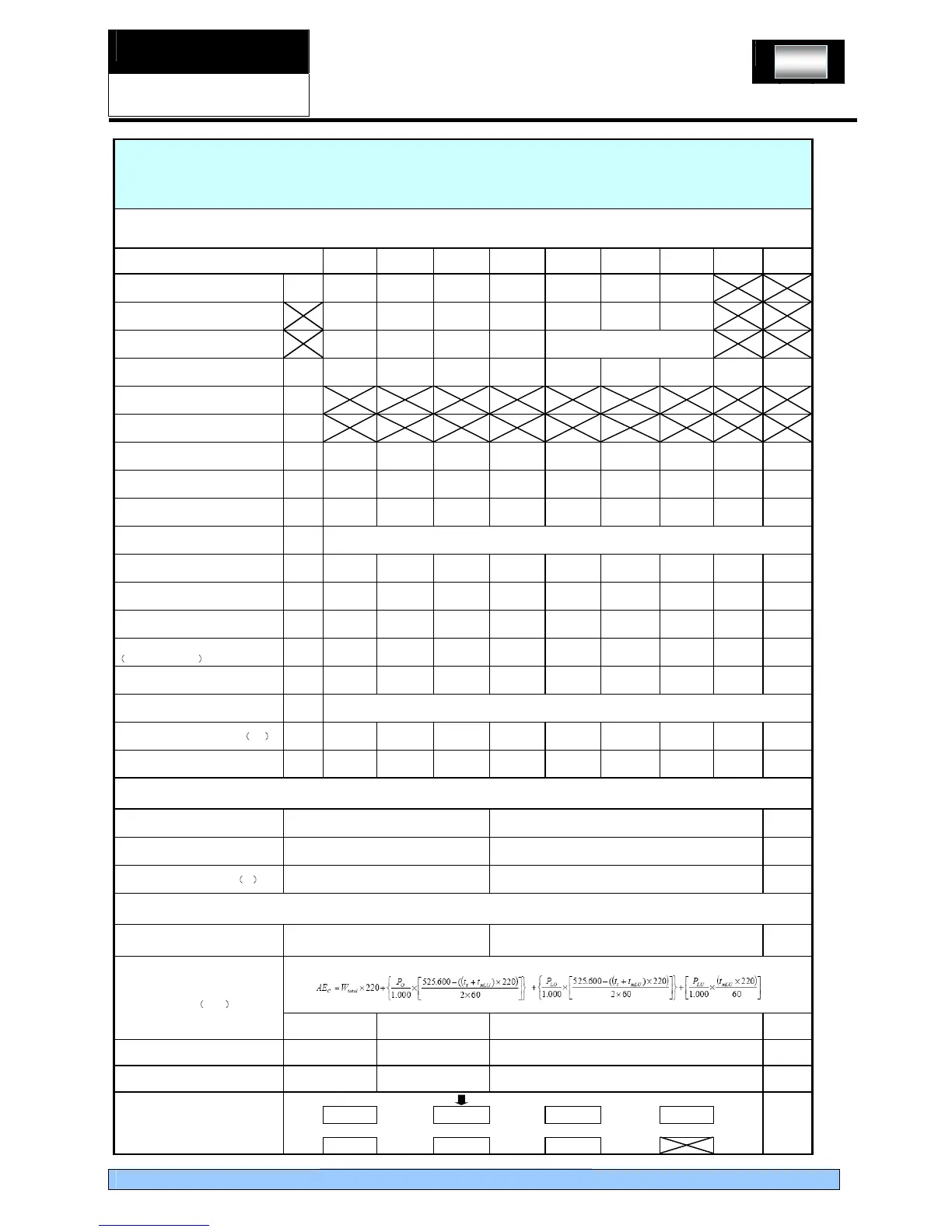

Energy labelling for electrical clothes washing machines for household use
Cycle data,parameters and results
N/A
cotton60℃
Cycle:
HW70-1202D
9

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
