Haier HWF05XCK - Prepare Window for Installation

B
A
A
C
D
E
F
B
A
B

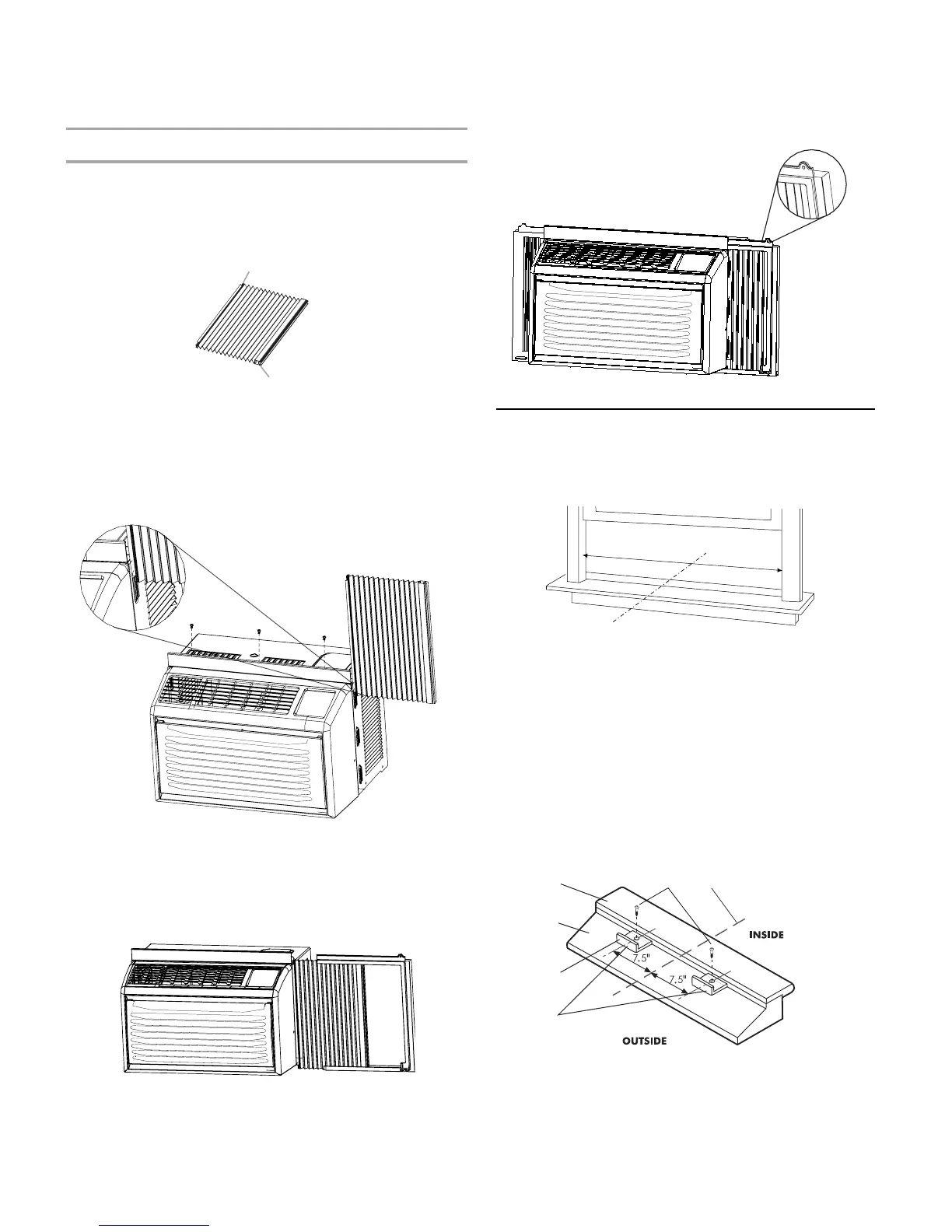

NOTE: Attach curtains to the air conditioner before placing the air
conditioner in window.
1. Place the tabbed side of the side curtain in the track on the
right-hand side of the air conditioner cabinet.
3. Slide the side curtain frame into the top channel on the top
of the air conditioner and the track on the bottom of the air
conditioner.
4. Slide the side curtain frame as close to the air conditioner
as necessary to lock the side curtain to the frame.
5. Repeat above steps for the left-hand side curtain and
frame.
Prepare Window for Installation
1. Measure the width of the window opening.
2. Mark the center line on the inside windowsill.
3. Install the Window lock bracket behind the inner windowsill, with
the short side of Window lock bracket as shown.Use the 2 wood
screws 31/32” provided.
The Window lock bracket helps to hold unit securely in place.Be
VXUHWRSODFH:LQGRZORFNEUDFNHWHGJHÀXVKDJDLQVWEDFNRILQQHU
sill.
A. Tabbed side of side curtain
B. Lock edge side of side curtain
A. Width of window opening
B. Center line
A. Center line
B. ⁄” screws
C. Inner sill
D. Outer sill
E. Short side
F.
Window lock bracket
2. Slide the side curtain down the track until the curtain is
aligned with the top and bottom of the air conditioner
cabinet.
Install Side Curtains
6
NOTE: Your model may differ from the one shown.
