A
C
D
B
NOTES:
ʄ Handle the air conditioner gently.
ʄ Be sure your air conditioner does not fall out of the opening
during installation or removal.
ʄ The place where the power cord exits the air conditioner should
be no more than 6 ft (183 cm) from a grounded outlet.
ʄ Do not block the louvers in the front panel.
ʄ Do not block the louvers on the outside of the air conditioner.

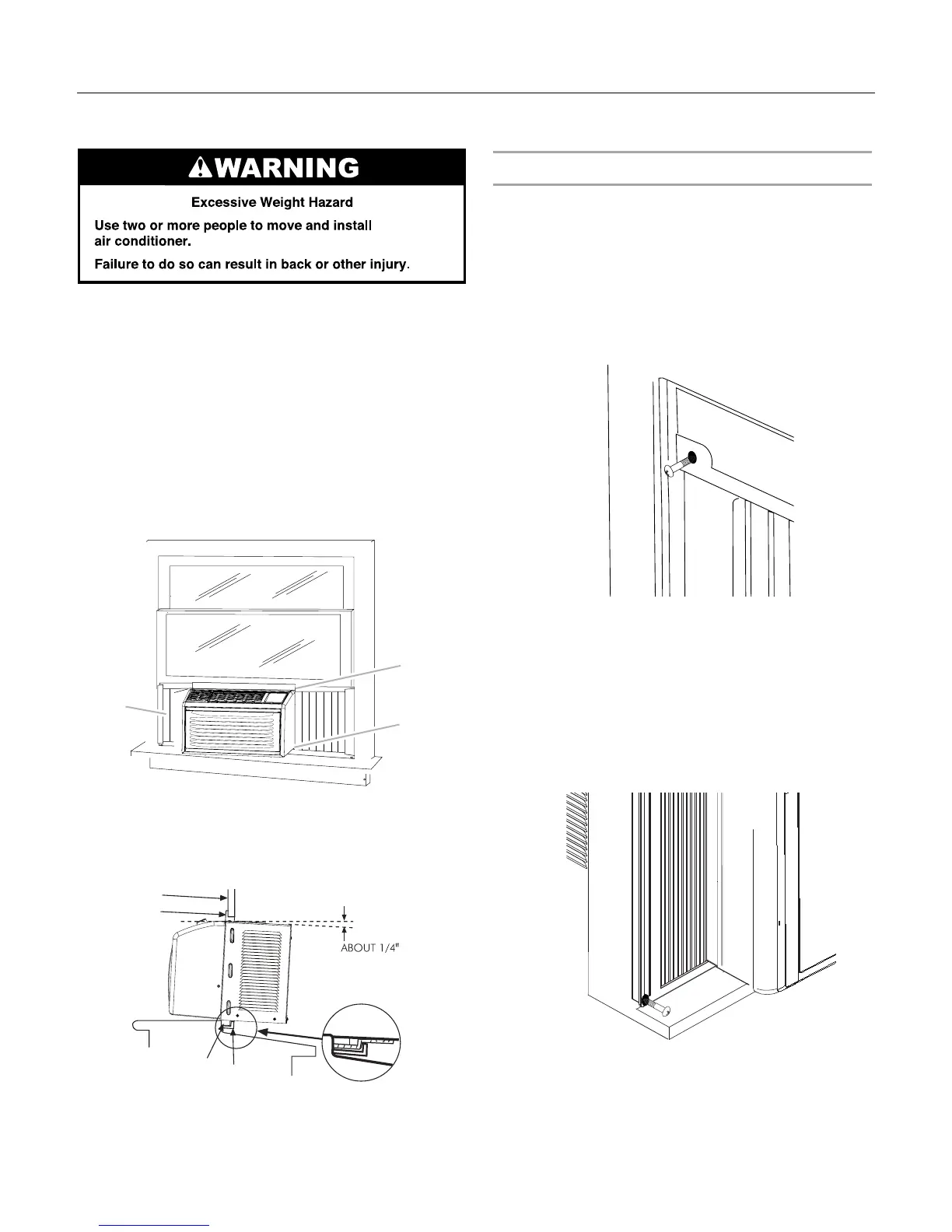

1. Center the air conditioner in the window. Make sure the bottom
guide of the air conditioner drops into the notches of the
basepan angle.Lower the window sash behind the top channel
to hold the cabinet in place
NOTE: Your model may differ from the one shown.
3XOOWKHOHIWKDQGFXUWDLQRXWXQWLOLW¿WVLQWRWKHZLQGRZ
channel.
2. Use a ⁄” drill bit to drill a starter hole through the top hole in
the side curtain and into the window sash.
3. Insert one of the ⁄” screws through the top hole of the
lefthand curtain and into the window sash.
4. Repeat for the right-hand curtain.
A. Side curtain against window channel
B. Window sash behind top channel
C. Bottom channel in behind windowsill
A. Window frame
B. Top channel
C. Bottom guide
D.
Window lock bracket
Position Air Conditioner
Attach Side Curtains to Window
7
Top View
Bottom View
5. Use a ⁄” drill bit to drill a starter hole through the bottom hole
in the side curtain and into the window frame.
6. Insert one of the ⁄” screws through the bottom hole of the
left-hand curtain and into the window frame.
7. Repeat for the right-hand curtain.
