PAGE 6 INSTALLATION REQUIREMENTS
IMPORTANT: evresbO all governing codes and ordinances. Check the location where the air
conditioner will be installed. Make sure you have everything necessary for correct
installation.
THE LOCATION SHOULD PROVIDE:
• A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air
conditioner, for models:
HWF05XCP-L
NOTE: oD not use an extension cord, plug adapter, surge protector or multi-outlet adapter.
•
Free movement of air in the room to be cooled.
•
A large enough opening for the air conditioner. (See Fig.1)
•
The air conditioner must not be installed in a through-the-wall sleeve
or in a wall. It can only be installed in a double-hung window.
NOTE: The outside cabinet louvers must not be obstructed by bushes,
trees, etc. Air must be able to pass freely through the cabinet
louvers. (See Fig.2)
WINDOW INSTALLATION
LOCATION REQUIREMENTS

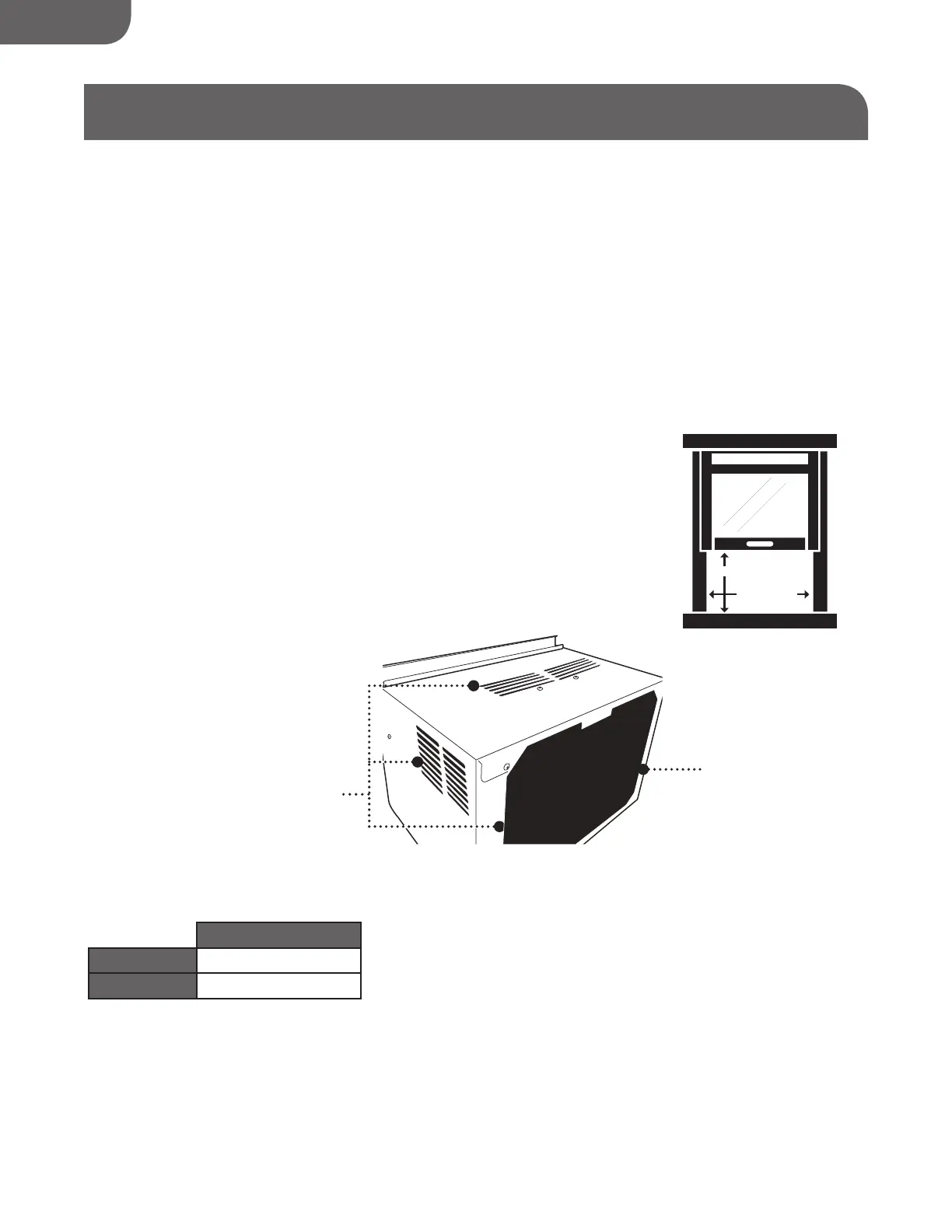

Fig. 1
AIR DISCHARGE
Window opening measurements: (See Fig. 1)
HWF05XCP-L
A. Width 21-7/8"-36"
B. Height 13-3/8"
CABINET LOUVERS
Fig. 2
A-WIDTH
B-HEIGHT
