Installation of drainage hose
Install drainage hose

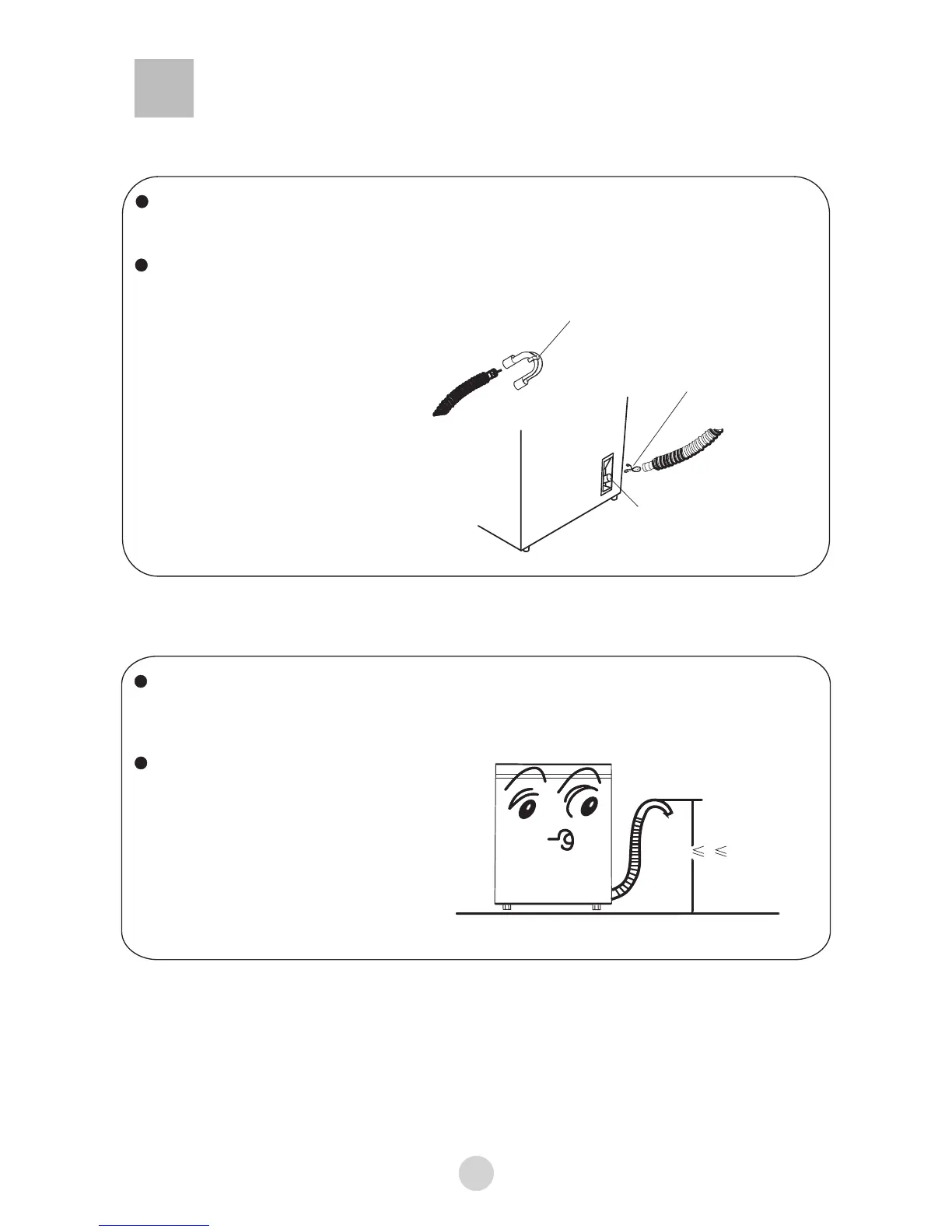

First connect the drainage hose to the connection point on the lower
left side of the cabinet, and fasten with drain hose hoop (provided).
Connect drain hose guide on to the outside of drainage hose. To guide
the drain hose over the tub or standpipe the hose guide MUST be fitted
to the drain hose
Drain hose neck guide
Drain hose joint
Drain hose hoop
Placement of Drainage Hose
0.85m h 1.2m
The height of the standpipe or tub should be between 850 - 1200 mm.
To avoid syphoning, the drain hose should not extend more than 20 mm
from the end of the guide.
Ensure drainage hose is held in place
to avoid leaks or spills.
