INSTALLATION
-8-

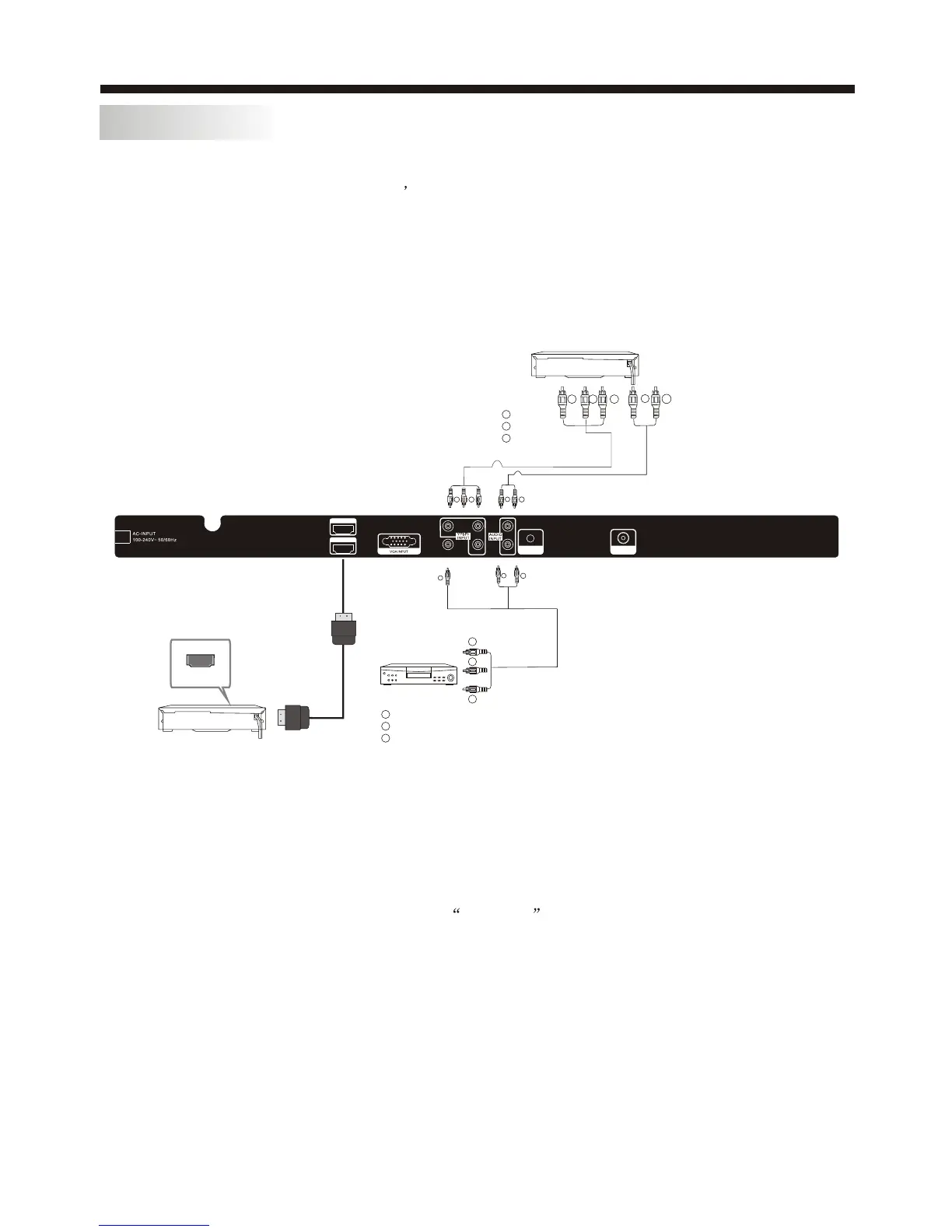

AV EQUIPMENT
This TV provides two groups of AV, one group of YPbPr for convenient connection to VCR, DVD or other
video equipment. Please refer to the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i.
Note: 1.AV2 share the audio input channel
2.When HDMI 1 port get DVI signal, the PC Audio channel is changed to
receive the audio for HDMI1 port.
To au dio
outputs
with
terminal
VIDEO EQUIPMENT
VIDEO EQUIPMENT with YPbPr
Yellow (video)
White(audol L)
Red(audio R)
Y
W
R
RW
Y
output
To video
R
G
B
R
G
B
Pr
Y
Pb
R
G
B
Y
W
HDMI
L
R
AV1
Pr
Y
Pb
PC
AUDIO INPUT
RF INPUT
HDMI2 INPUT
HDMI1 INPUT
R
W
R
W
