-5-

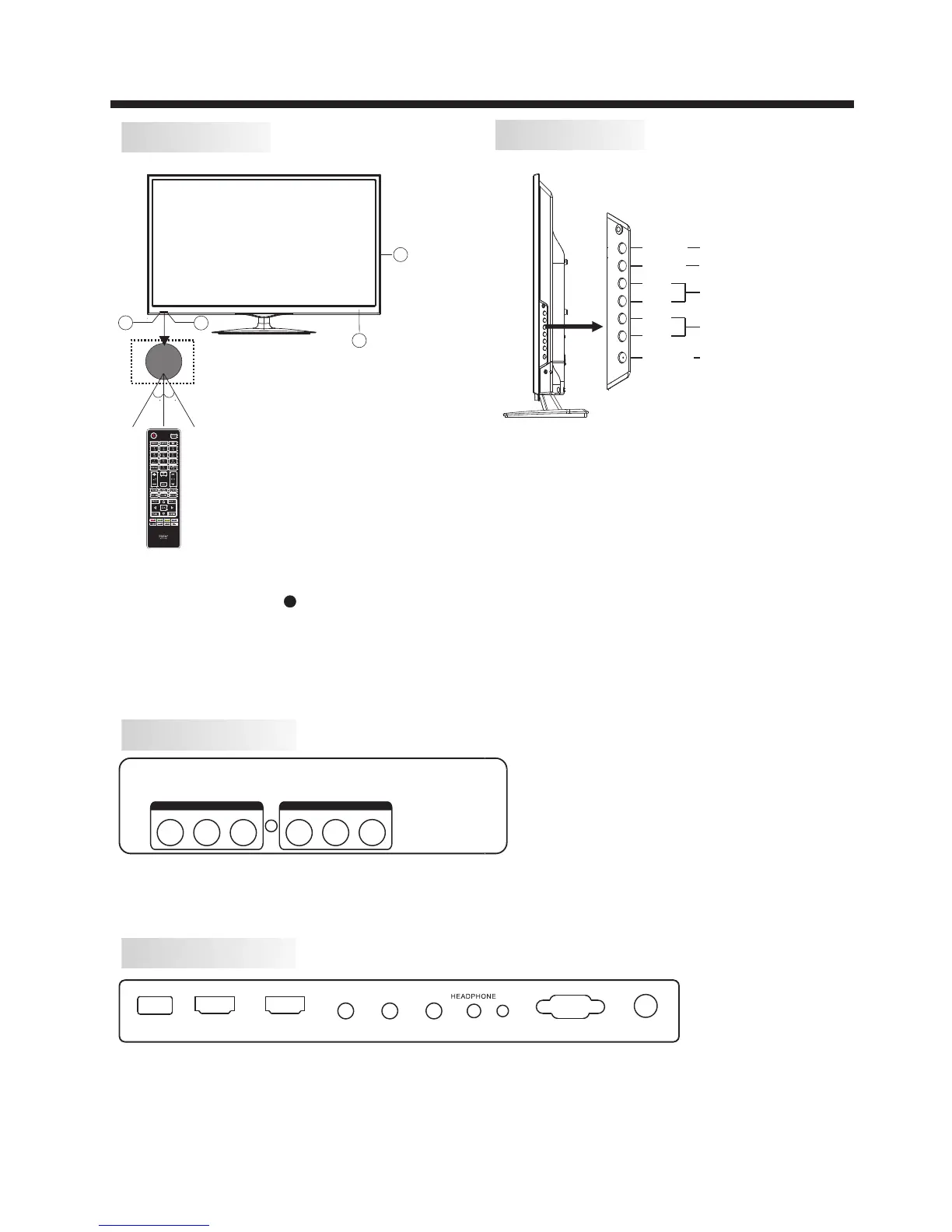

INSTALLATION
Front panel
KEYBOARD
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．CH+/CH-
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
4．VOL+/VOL-
Adjust sound level.
In MENU mode, press“VOL+”or“VOL-”to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
REAR AV Connections
All the terminals are (from left to right):
AV INPUT, AV OUTPUT.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections (SIDE)
All the terminals are (from left to right):
USB, HDMI2, HDMI1, YPbPr INPUT, HEADPHONE, PC AUDIO, VGA, RF.
Note: When HDMI port get DVI signal, the audio signal receives from the PC
Audio channel.
AV IN
VIDEO
L R
VIDEO
L R
AV OUT
HDMI2 HDMI1USB
VGA
PC AUDIO
RF
Y Pb Pr
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
4:
Power button: Press the Power Button to
turn the unit on or off.
30 30
1
2
4
3
SOURCE
MENU
VOL+
VOL-
CH+
CH-
STANDBY
①
②
③
④
⑤
