Haier LE29F2320 User Manual

-6-

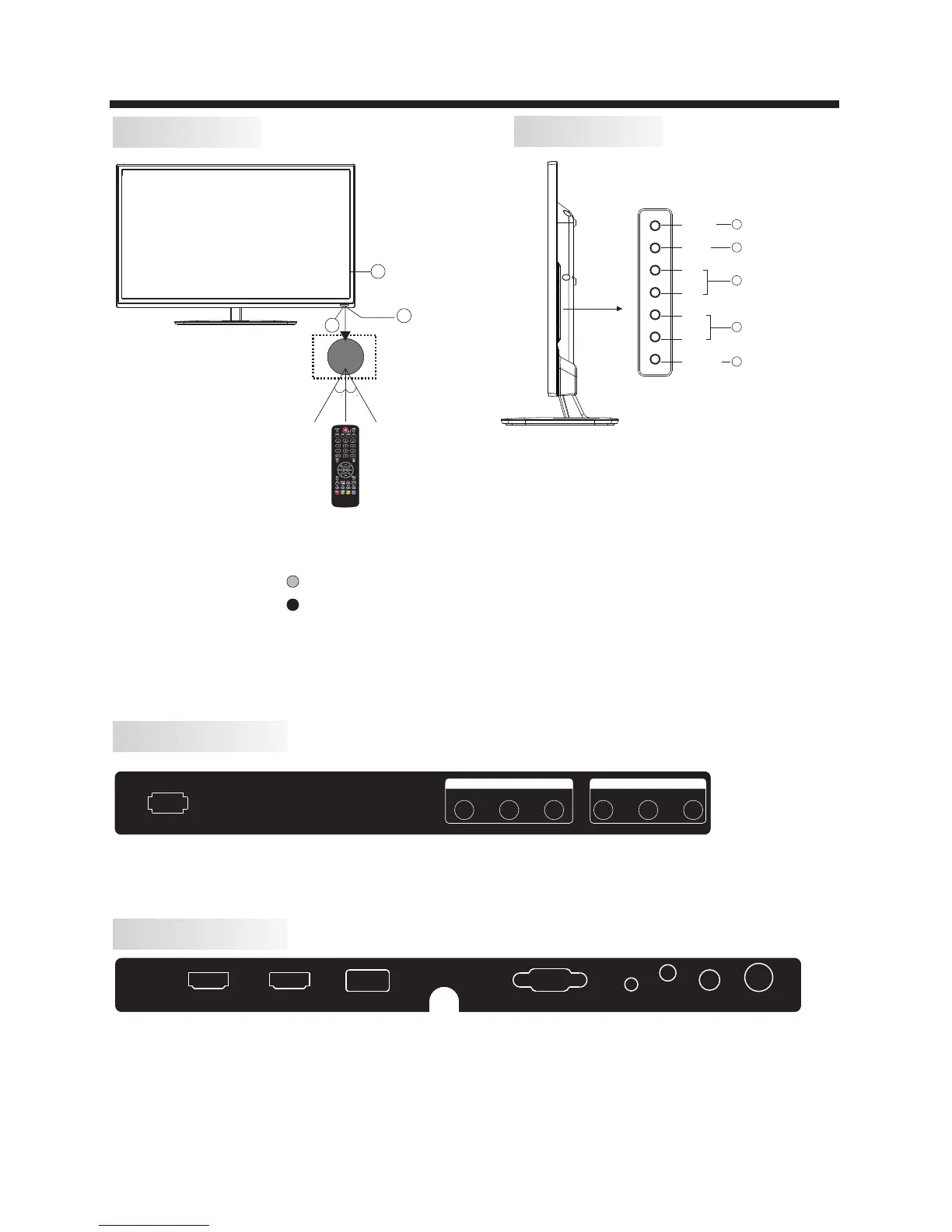

INSTALLATION
Front panel
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
R F
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and component (YPbPr) share the R and L audio inputs.
AC-INPUT
100-240V~50/60Hz
VIDEO L R Y
Pb
Pr
COMPOSITE COMPONENT
30 30
1
2
3
MENU
CH+
CH-
VOL+
VOL-
2
SOURCE
1
3
4
STANDBY
5

Haier LE29F2320 Specifications

General

Response time	6.5 ms
Display diagonal	29 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LED backlighting type	-
Viewing angle, vertical	170 °
Viewing angle, horizontal	160 °
3D	No
PC in (D-Sub)	Yes
HDMI ports quantity	0
USB 2.0 ports quantity	1
Product color	Black
Panel mounting interface	200 x 100 mm
Power consumption (standby)	- W
Sustainability certificates	ENERGY STAR
Package depth	132.08 mm
Package width	800.1 mm
Package height	530.1 mm

Weight and Dimensions

Depth (without stand)	50.04 mm
Width (without stand)	665.48 mm
Height (without stand)	440.69 mm
