INSTALLATION
-9-
AV EQUIPMENT
There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player,
DVD player, or other video equipment through these ports.
There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back
of your TV. You can connect a VCR, cable box, or other video equipment to these jacks.

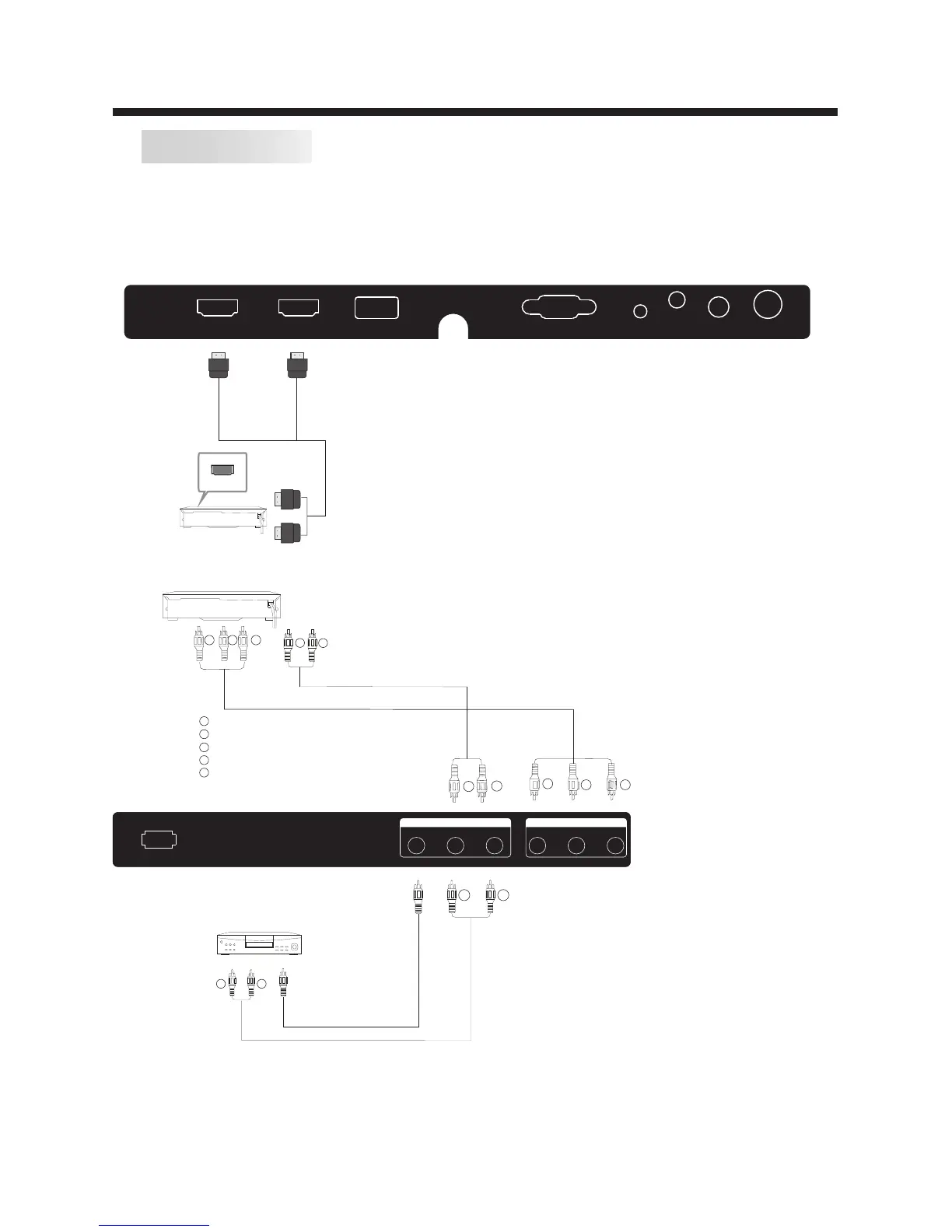

Please see the diagram below. You may also need to refer to the owner's manual of the device
that you are trying to connect.
HDMI
The television's inputs can be connected to the following types of equipment: VCR, multi disc player,
DVD, camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
G
B
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
G
B
R
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
R F
AC-INPUT
100-240V~50/60Hz
VIDEO L R Y
Pb
Pr
COMPOSITE COMPONENT

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Haier LE29F2320 and is the answer not in the manual?

Haier LE29F2320 Specifications

General IconGeneral
Response time6.5 ms
Display diagonal29 \
Display brightness300 cd/m²
Display resolution1366 x 768 pixels
Native aspect ratio16:9
LED backlighting type-
Viewing angle, vertical170 °
Viewing angle, horizontal160 °
3DNo
PC in (D-Sub)Yes
HDMI ports quantity0
USB 2.0 ports quantity1
Product colorBlack
Panel mounting interface200 x 100 mm
Power consumption (standby)- W
Sustainability certificatesENERGY STAR
Package depth132.08 mm
Package width800.1 mm
Package height530.1 mm
Weight and Dimensions IconWeight and Dimensions
Depth (without stand)50.04 mm
Width (without stand)665.48 mm
Height (without stand)440.69 mm
