Service Manual
Model No.:LE39B9000
Chapter 3. Disassemble and Assemble
3-1. LE39B9000

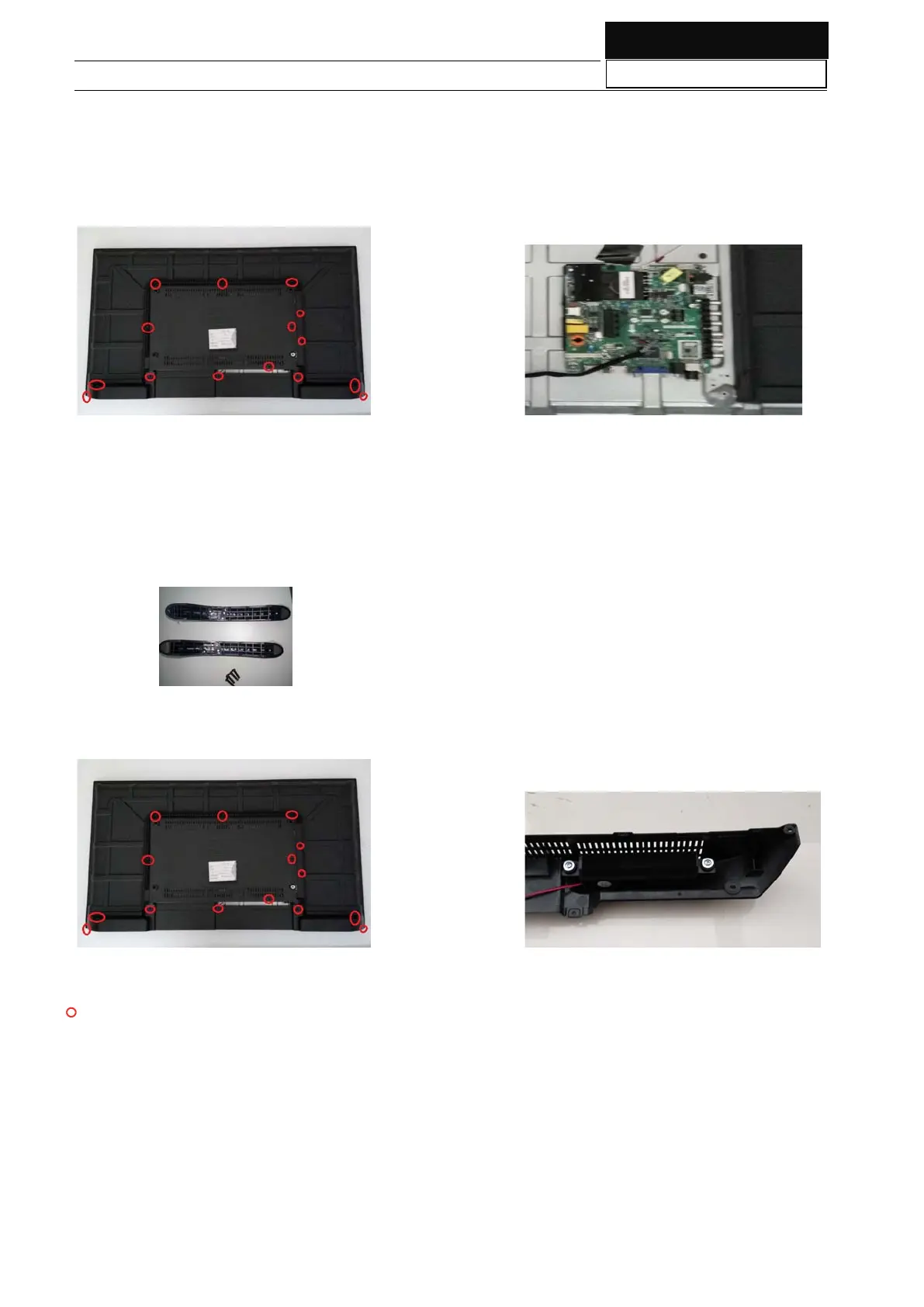

3-1-1. Remove the Stand 3-1-3. Remove the Mainboard
1. Remove the screws indicated with
red circles in above picture.
2. Remove the Mainboard Module.
1. Lay down the TV set .
2. Remove the four screws from the stand which
in the picture above,
3. Remove the stand.
3-1-4. Remove the Speaker
Remove the Speaker indicated by red
circle in below picture
3-1-2. Remove the Back Cabinet
1.Remove the thirteen screws indicated with red circles.
2.Flip machine, panel side up.
3.Carefully raise the Front shell from bottom.
To Next Page
