INSTALLATIONINSTALLATION
-6-

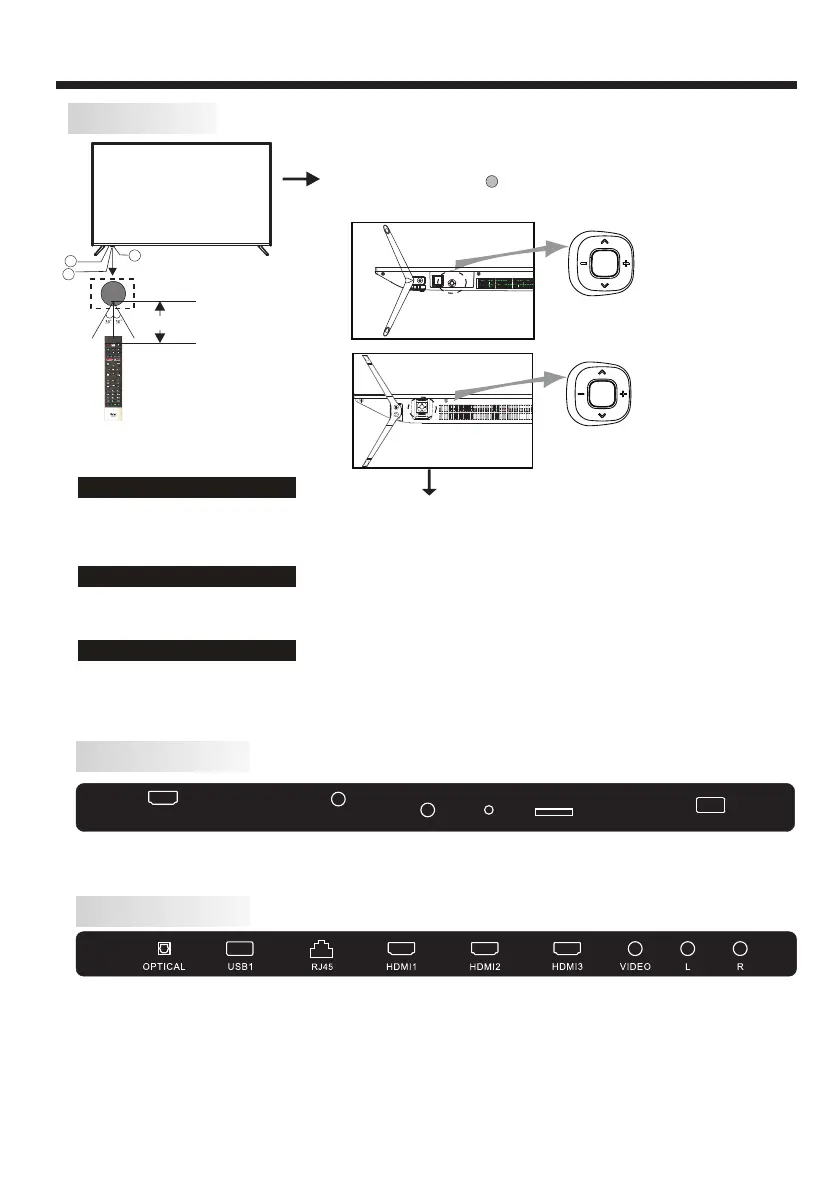

All the terminals are (from left to right):
HDMI4(ARC), ANT IN, Mini YPbPr, EARPHONE, TF, USB2.
All the terminals are (from left to right):
OPTICAL output, USB1, RJ45, HDMI1, HDMI2, HDMI3, VIDEO, AUDIO input(L/R).
REAR AV Connections (SIDE)
REAR AV Connections
Note:
VIDEO and YPbPr share one audio channel.
When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
3
2
1
≤8m
Middle key
Up and down keys
Left and right keys
In the non-menu page,Under the menu page, press the left and
right keys to adjust
the volume addition and subtraction.
In the standby mode, press the middle button to turn on the TV.
In the boot state, press the middle button to shut down.long
In the non-menu page, you can adjust the TV channel under the
program addition and subtraction;
Under the menu page, you can move the cursor up and down.
Under the menu page,
function equivalent to the OK key.
HDMI4
(ARC)
MINI YPbPr TF
USB2
EARPHONE
ANT IN
(ANTENNA/CABLE)
Front panel
Bottom
Bottom
(43")
(50"/55"/58"65")
