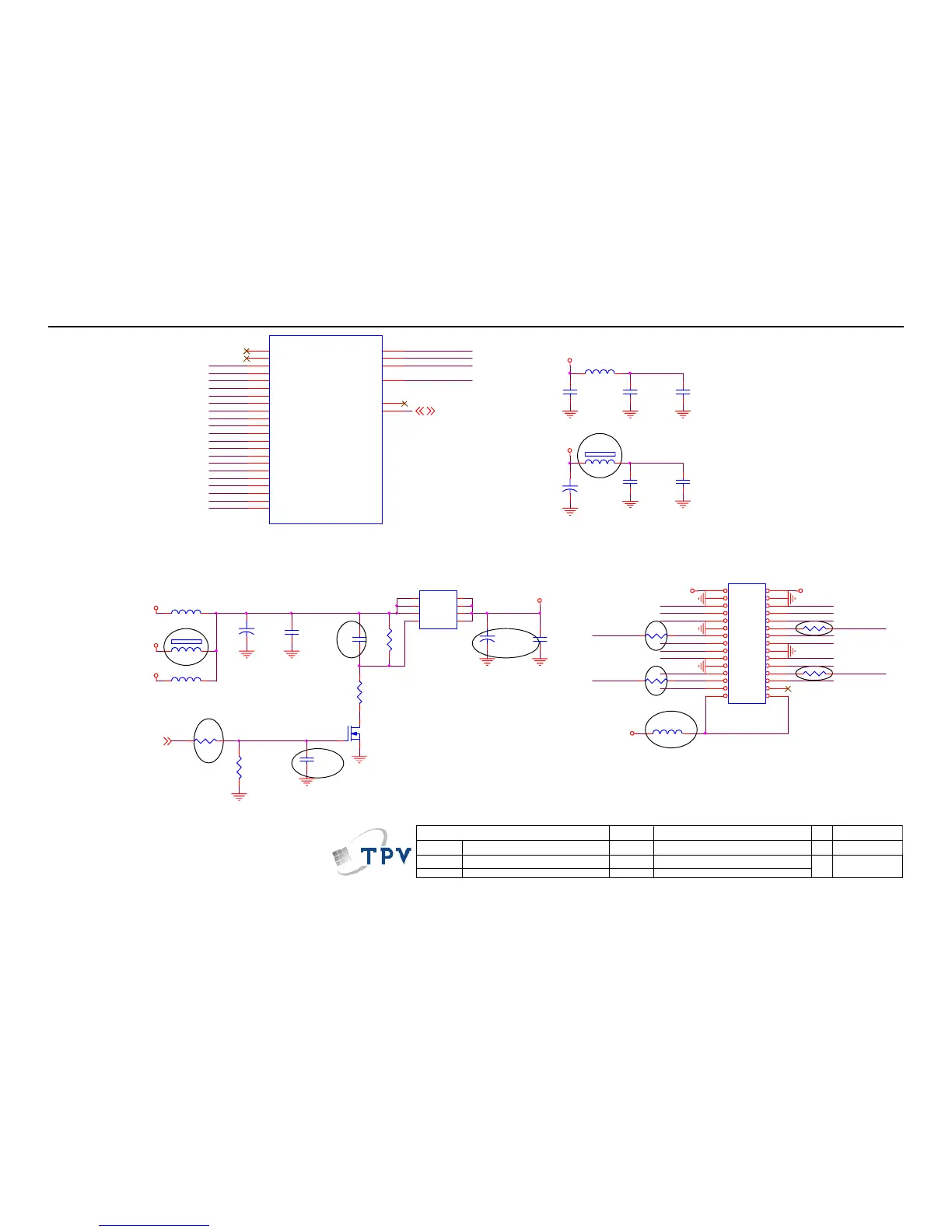

26”LCD TV Haier LT26M1CA&LT26M1C
49
C301
1uF6.3V
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
CN301
NC/CONN
For 26" Panel
LVDS 12V
R305
10K OHM 1/10W
R302
100K OHM 1/10W
+
C310
220uF/16V
+
C305
100uF/16V
+
C308
NC/100uF/16V
Q301
2N7002 SOT-23
C303
1uF/16V
L303
NC/BEAD
C302
10uF/10V
C309
0.1UF16V
R307
1M OHM 1/10W
C306
1uF/16V
L301
NC
C307
0.1UF16V
C311
0.1UF16V
C304
0.1UF16V
12V
+5V
LVDSVDD
LVDSVDD
LVDSVDD
AV33
AV33
DV33
CI_POCE1# 20
LVDSVDD_EN9
S
1
S
2
S
3
G
4
D
8
D
7
D
6
D
5
U301
AO4449 -7A/-30V
LO = > LVDS POWER OFF
HI = > L V DS POWER ON
1 2
FB302
BEAD
3A
A5P
FB301
BEAD
C312
NC/1uF/16V
AVDD33_LVDS
AVDD33_LVDSA
220
AVDD33_LVDSB
229
AVDD33_LVDSC
238
AVDD33_VPLL
217
TP2
218
TN2
219
A9P
221
A9N
222
A8P
223
A8N
224
A0N
244
A0P
243
A2N
242
A2P
241
CK1N
240
CK1P
239
A3N
237
A3P
236
A4N
235
A4P
234
A5N
233
A5P
232
A6N
231
A6P
230
CK2N
226
CK2P
225
A7N
228
A7P
227
U401C
MT5335PKU
33T8027 30 GP
AVDD33_VPLL
FB303
BEAD
R308
22 OHM 1/10W
NC FOR FFC Board
LVDS OUT
OEM MOD EL Size
Rev
Date
Sheet of
TPV MOD EL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 C
A4
722Friday , April 11, 2008
715T2848-H
<
称爹 >
LVDS OUT
T2848-H-X-X-2-032408
T1= 0.74ms>0.47ms
A0PA0N
A1N
A2N
A1P
CK1N
A2P
A4N
A5N
A3NCK1P
A4P
A7P
A6N
A3P
CK2P A7N
CK2NA6P
SELLVDS 3.3V
R310
22 OHM 1/10W
AVDD33_LVDS
AVDD33_LVDS
R311
22 OHM 1/10W
R309
22 OHM 1/10W
AVDD33_VPLL
AVDD33_LVDS
1 2
L302
BEAD
R306
51K OHM 1/10W
1206
A0N
A7P
A3P
A2P
CK2N
A4N
CK1P
A7N
A1N
A5P
CK2P
A2N
A6N
A6P
A3N
CK1N
A4P
A5N
A1P
A0P
DV33
