ICEMAKER ACCESSORY INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for local
inspector’s use.
• IMPORTANT – Observe all governing codes and
ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires basic
mechanical skills.
• Completion time – 20–60 minutes
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
Icemaker Accessory Kit IM4D:
An IM4D icemaker accessory kit is available at extra cost.
To order, call GE Appliances at 800.GECARES
(800.432.2737) or visit GEAppliances.com. In Canada, visit
GEAppliances.ca or call 800.561.3344.
ON
OFF
Icemaker
Feeler Arm
Power
Switch

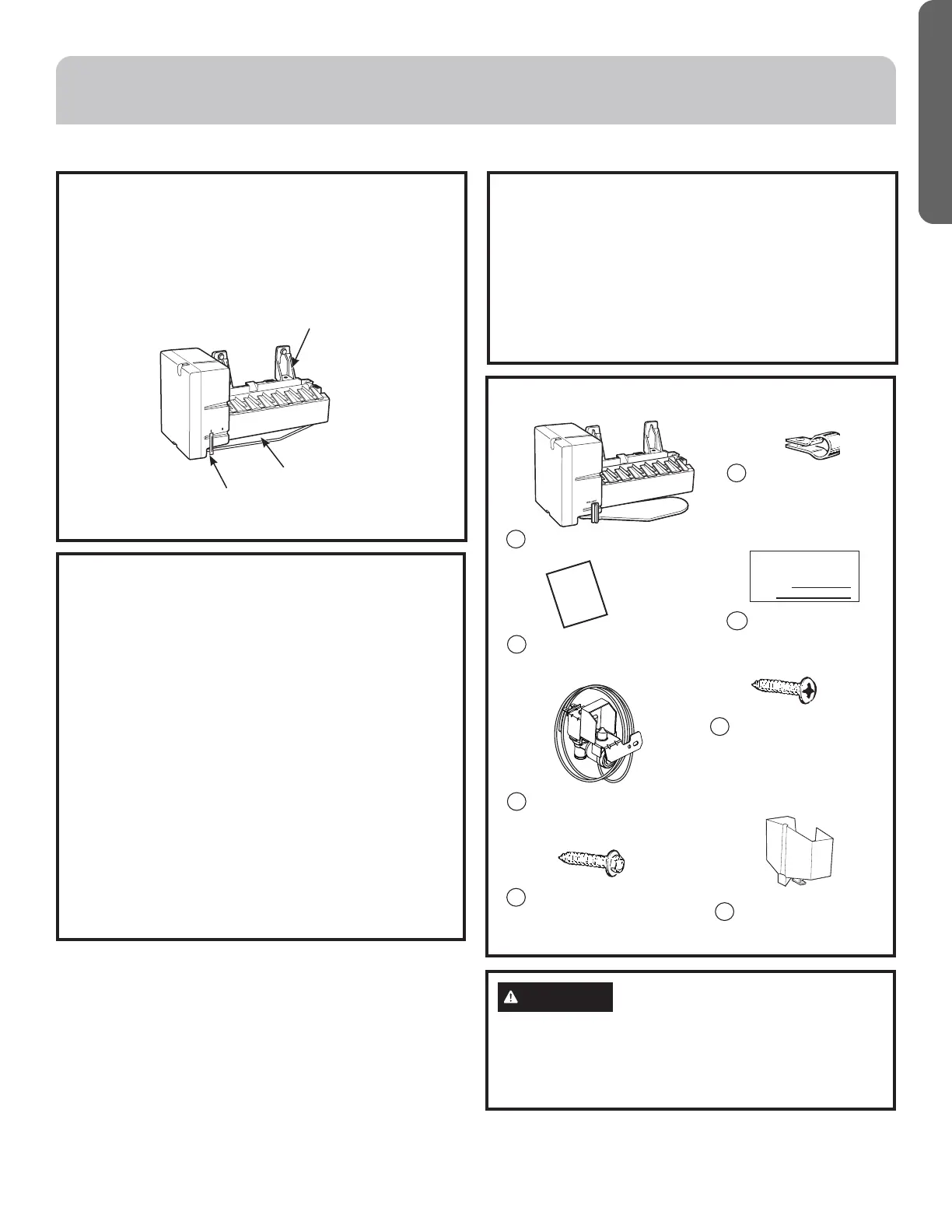

ITEMS NEEDED FROM IM4D KIT
Damage – Shipment/Installation
¿ If the unit is damaged in shipment, return the unit to the
store in which it was bought for repair or replacement.
¿ If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
¿ If the unit is damaged by the installer (if other than the
customer), repair or replacement must be made by
arrangement between customer and installer.
Installation Instructions
2
Hex-Head Screw
for Water Line Clamp (3/4”)*
5
Water Valve and
Tube Assembly
3
Icemaker
1
Installation
Instructions
Water Line Clamp
(strain relief), for house
water line
6
10
Phillips Head Screws,
for mounting icemaker (2)
(7/8”)*
Warranty Label
7
ICEMAKER
WARRANTY VERIFICATION
Date Installed
Dealer
13
Icemaker Fill Cup
(side-mounted)
WARNING
Connect to potable water supply only.
A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40 and
120 psi (275-827 kilopascals)
READ AND SAVE THESE INSTRUCTIONS
