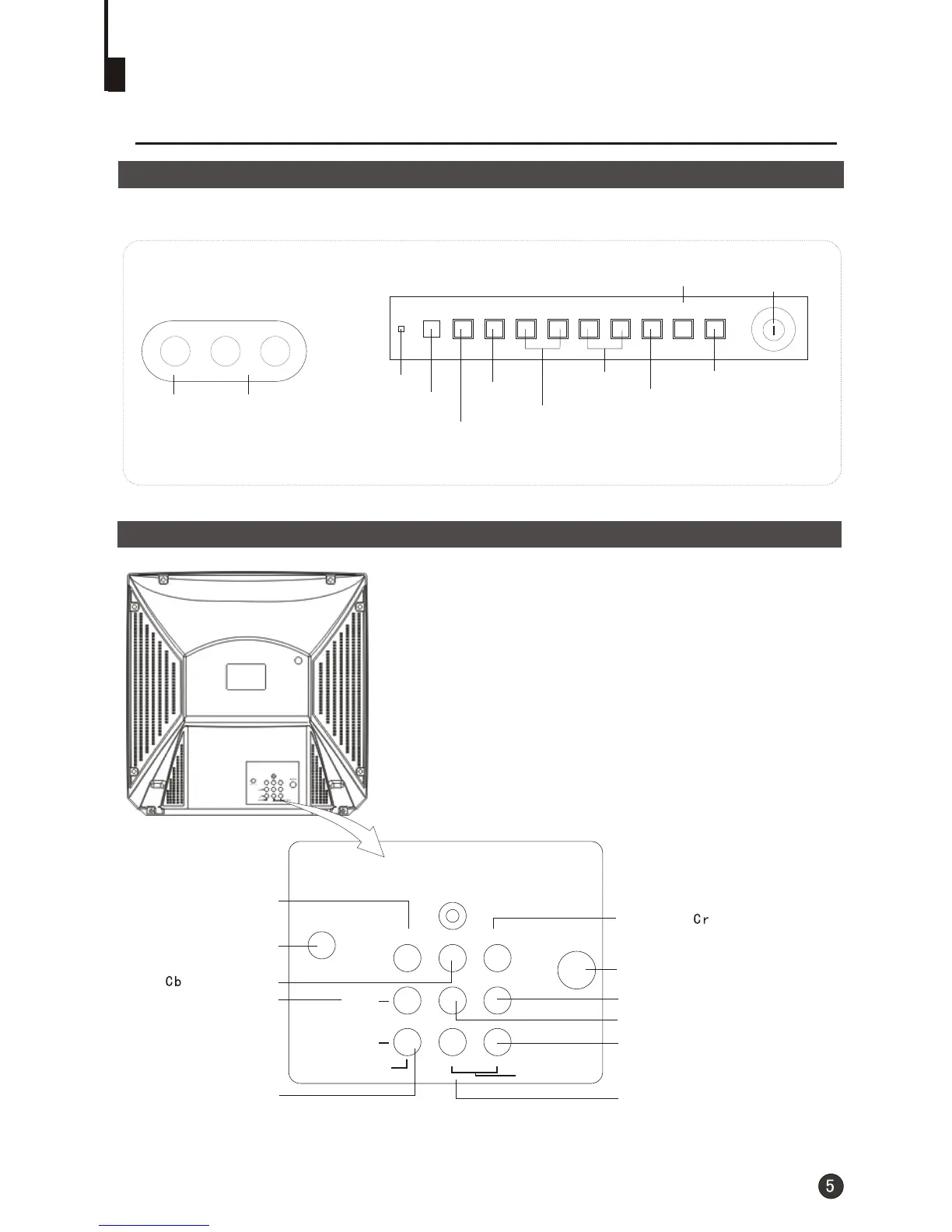

Function Buttons and External
Connections
Rear panel of the TV set
Front panel the TV set
Video
Audio
Power Indicator
Signal Receiver
TV/DVD
Menu
Volume up/ down
Channel Position
up/down
OPEN
CLOSE
PLAY
STOP
Play the DVD
Power Switch
Open/close the DVD
Stop the DVD
VIDEO L-AUDIO-R
TV/DVD MENU V- V+ CH- CH+
Coaxial terminal
Video input terminal
Video output terminal
Antenna/ CATV input socket
Audio right channel output terminal
Audio left channel output terminal
Audio right channel input terminal
Audio left channel input terminal
DVD Video Y input terminal
DVD Video input terminal
DVD Video input terminal
COAXIAL
OUT
IN
VIDEO
AUDIO
L R
Y
Cb Cr
ANT IN
