Haier XQB60-C User Manual

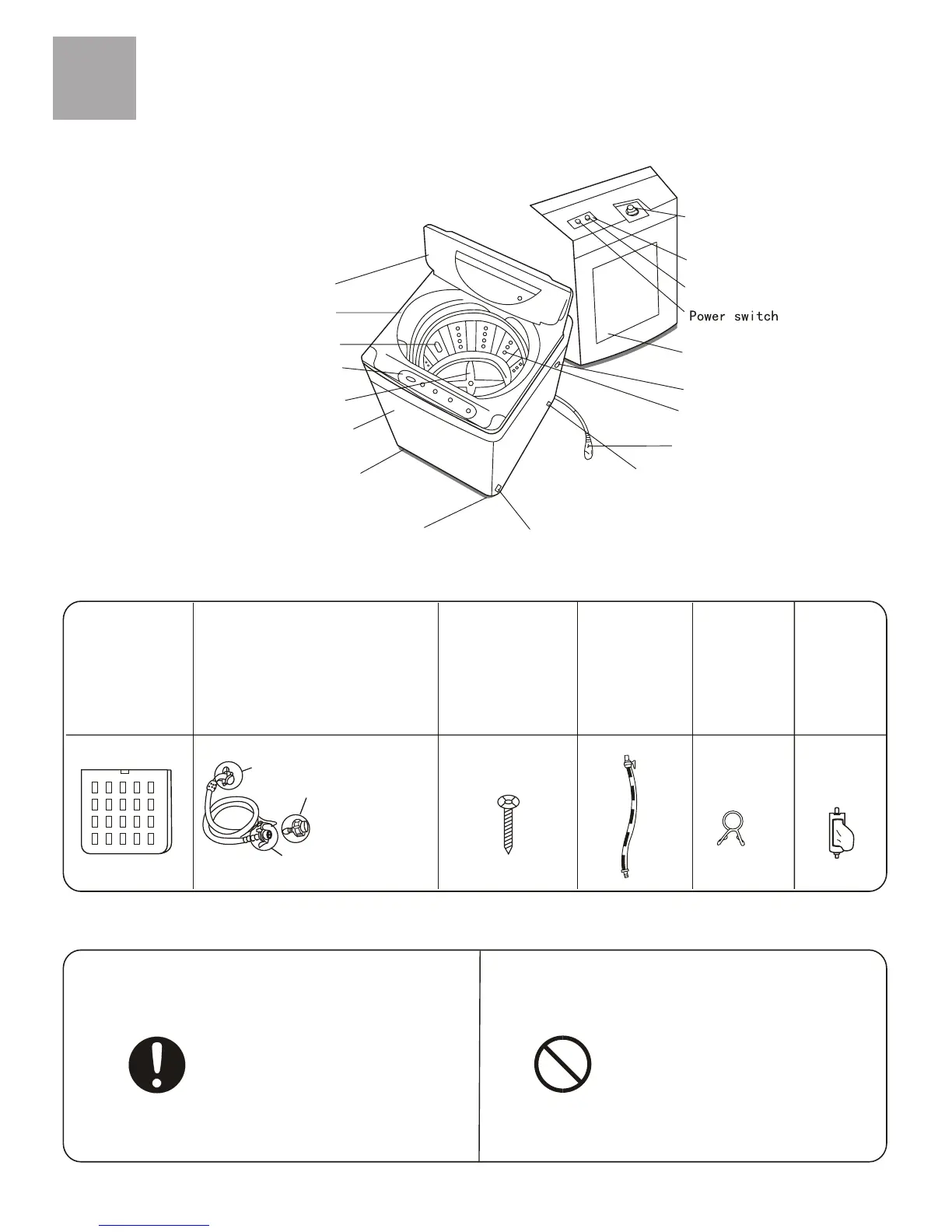

Names of the parts
Before using
Before using
Before using
Before using
Meaning and description of the symbols
Accessories
Contents marked with
that symbol are related
to the safety of the
product and the personal
safety of the users. Failure
to comply with the
instruction could cause
damage of the machine
or injure the personal
safety of the user.
Warning
mark
Top lid
Control panel
Lint filter(Installed by user)
Control panel film
Pulsator
Cabinet
Base frame
Adjustable foot
seam
Adjustable foot
Inner drain hose
Power line
Inner tub
Cabinet handle
Back cover
Water level Switch
Control panel film
Water valve
Bottom plate
(1 piece)
The end connecting to
the washing machine
The end connecting to
the water inlet hose jointer
Jointer connecting
the water inlet hose
to the water faucet
Water inlet hose
(2 pieces)
Water inlet
hose jointer
(2 pieces)
Tapping screw
ST4x 16
(1 pieces)
Drain hose
(1 pieces)
Hose clamp
(1 pieces)
Lint filter
(1 piece)
Contents marked with
that symbol are actions
forbidden to perform.
Failure to comply with
the instruction could
result in damage of the
machine or injure the
personal safety of the user.
Forbidding
mark

Haier XQB60-C Specifications

General

Rated voltage frequency	220-240V ~ 50Hz
Rated washing power	415W
Rated spinning power	315W
Rated washing / spinning capacity	6.0kg
Water level/Water quantity (about)	50L/High, 42L/Middle, 34L/Low
Max water consumption	About 150L (the highest water level, normal program)
Water inlet pressure	0.03MPa-0.78MPa

Weight and Dimensions

Weight	About 33kg
Dimensions (mm)	L 540 W 540 H 875
