4. Maintenance and adjustment of the machine
The machine must be disconnected from its power source before maintenance, adjustment, replacement or
cleaning procedures. Only use spare parts that are supplied by the manufacturer or your retailer. If the guards of
the machine have to be removed for maintenance, they must always be reattached before the machine is activat-
ed. After maintenance and adjustment measures, the machine must be test run according to the instructions in
Section 3.3.
4.1. Disconnecting the machine from its power source
Tractor-powered model
Turn off the tractor and disconnect the machine’s cardan shaft from the tractor.
Electrically-powered model
Turn off the machine and disconnect the power cable from the socket.
Ensuring that the machine is inactive
Once you have disconnected the machine from its power source, always ensure that the machine is completely
inactive before performing any other measures!
4.2. Adjusting the log length
The Hakki Pilke Falcon firewood processor is equipped with a mechanical log measurement device with an incre-
mented adjustment value of 25–50 cm.
1. Open the machine guard.

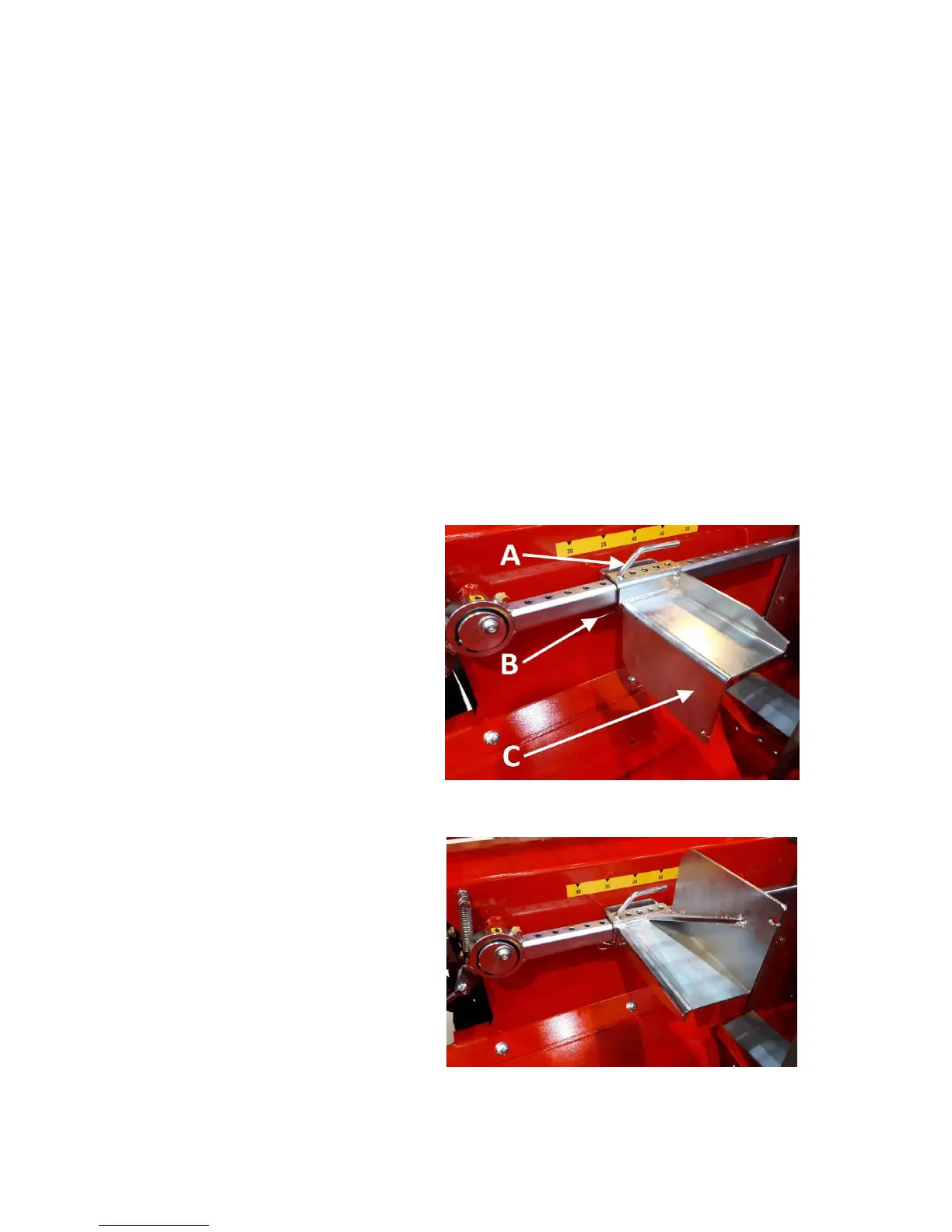

2. When the wood limiter is in the
splitting position, set it to the
desired length by removing cot-
ter pin B (Figure 14) in the lim-
iter's locking pin and by pulling
out locking pin A. Lock the lim-
iter plate C in the desired posi-
tion. Re-insert locking pin A and
cotter pin B.
Note! Turn the limiter plate to
the correct position according to
the thickness of the log. (See
Figures 18 and 19).
Note! Limiter plate C features
holes at different intervals,
which means that the fine tuning
can be conducted with the suita-
ble combination.
