4.6. Out-feed conveyor belt adjustment and cleaning out-feed conveyor

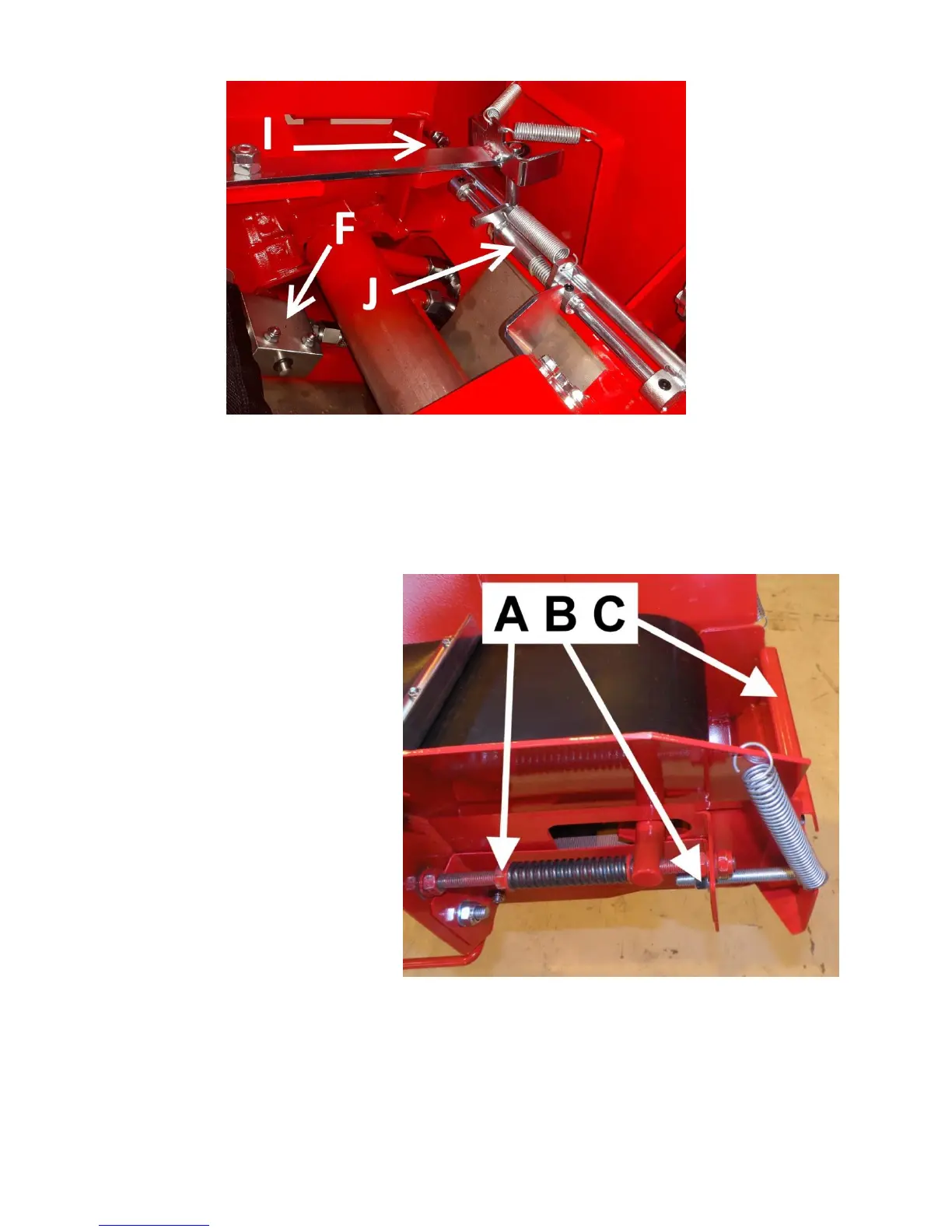

The tightness and alignment of the out-feed conveyor’s belt can be adjusted using nuts A in Figure 20 (2 pcs).
Loosen adjustment nut A on the side to which you wish the belt to run. Do not tighten the belt excessively to
prevent the spring being compressed.
The Hakki Pilke Falcon firewood proces-
sor features a cleaning conveyor that
separates debris and sawdust from the
processed firewood.
The following things significantly affect
the operation of the debris removal de-
vice: the angle of the out-feed conveyor,
the speed of the belt and the distance of
separation plate C (Figure 20) from the
upper roller of the conveyor. In other
words, the debris separation result is
better the steeper the angle (however,
no more than 40 degrees), the lower the
speed and the longer the distance be-
tween separation plate C and the upper
roller. The distance of separation plate C
is optimised at the factory in conjunction
with the testing of the machine. Howev-
er, the adjustment can be changed, if
necessary.
Debris removal can also be deactivated
by turning the mechanism under the con-
veyor and locking it in place with the
designated latch.
