18

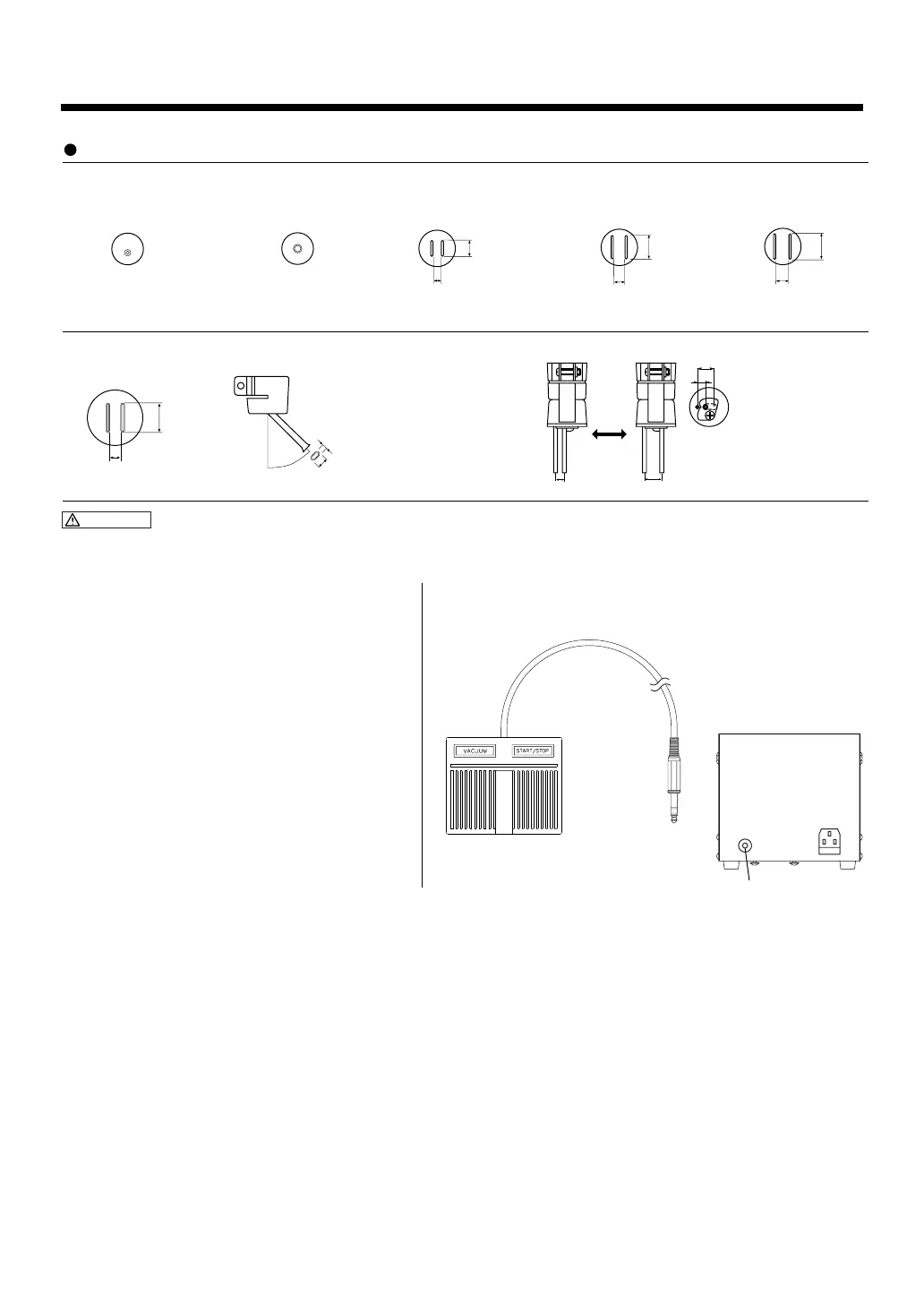

Foot-switch jack
Foot-switch
(sold separately)
Insert the foot-switch plug into the
foot-switch jack on the back of the station.
●FOOT-SWITCH
The foot-switch can be used to perform the
same operation as the start button and the
vacuum button on the handpiece.
A1124B Single φ2.5
(0.09)
φ2.5 (I.D)
(0.09)
A1130 Single φ4.4
(0.17)
A1133 SOP 7.5×15
(0.3×0.59)
A1131 SOP 4.4×10
(0.17×0.39)
A1132 SOP 5.6×13
(0.22×0.51)
φ4.4 (I.D)
(0.17)
4.8 (0.19)
10
(0.39)
5.7 (0.22)
15
(0.59)
7.2 (0.28)
16
(0.63)
A1134 SOP 7.5×18
(0.3×0.7)
7.2
(0.28)
19
(0.75)
A1142B Bent Single 1.5×3
(0.06×0.12)
45¡
1.5
(0.06) (I.D)
3
(0.12) (I.D)
10
5
A1325 Dual Single φ1.5×5-10
(0.06×0.2-0.39)
Adjustable Pitch
φ1.5 (I.D)
(0.06)
5 (0.2)
10 (0.39)
The pitch
between the
two nozzles
is adjustable.
VACUUM FUNCTION INOPERATIVE NOZZLES.
CAUTION
Be sure not to use No. A1124 Single φ2.5 (0.09) and No. A1142 Bent Single 1.5 × 3 (0.06 × 0.12) nozzle
with the Hakko 852. These nozzles do not have space to blow hot air, using them with the 852 may result
in danger.
To Next Page
