Hakko Electronics 852 - Part Names; Station Components; Handpiece Components

VACUUM MODE POWER
TIME AIRTEMP
AIR CONTROL
OFF
ON

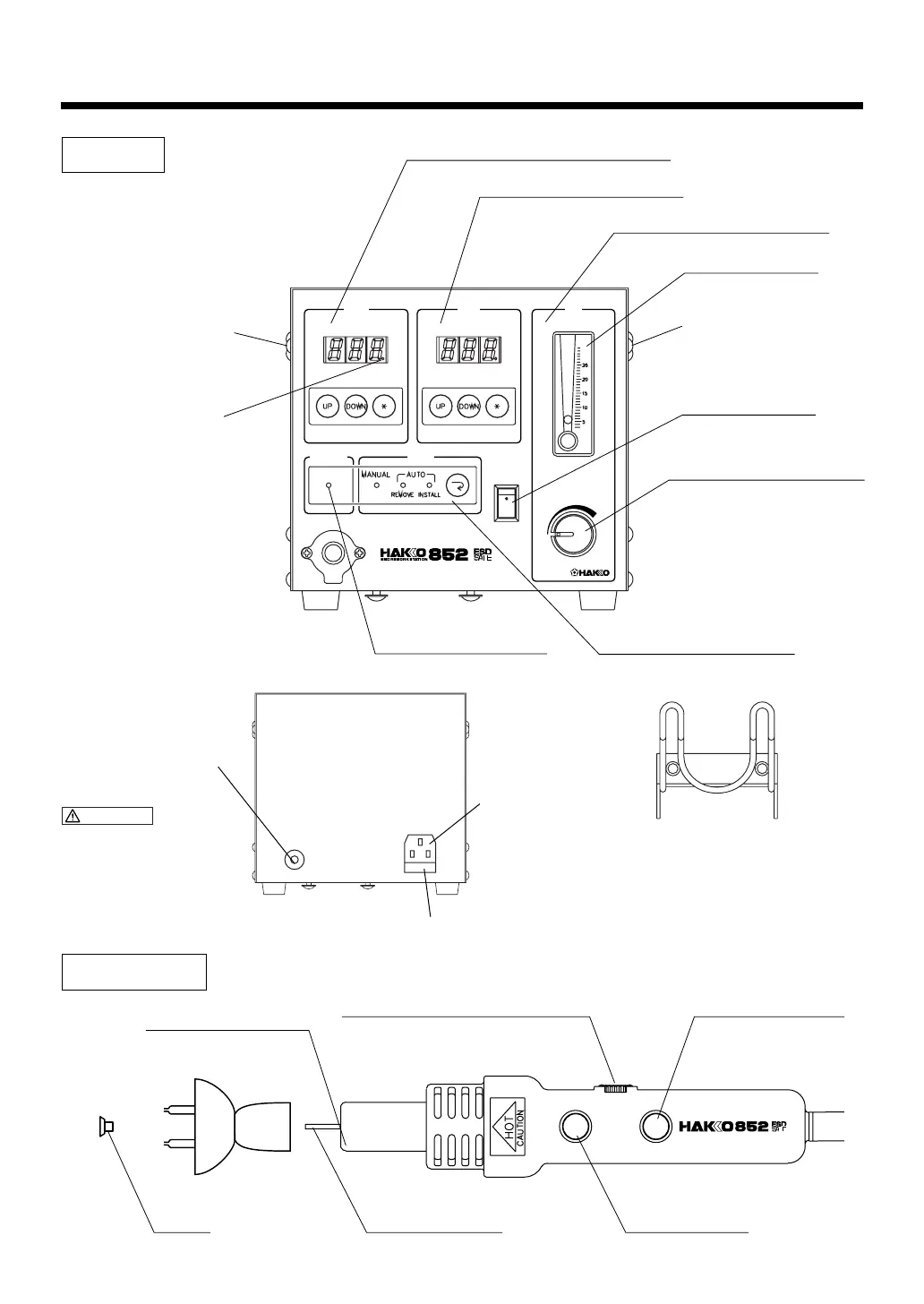

Station
Handpiece
①Temperature setting section
②Timer setting section
③Airflow setting section
④Airflow meter
⑤Power switch
⑥Airflow control knob
③Sensor (internal)
①Pad ②Vacuum pipe ④Start button
⑥Vacuum button⑤Vacuum pipe control knob
⑦Mode setting section
⑧Vacuum indicator
Handpiece holder
mounting screw
Handpiece holder
mounting screw
Heater
indicator lamp
Jack for optional
foot-switch
Power receptacle
Handpiece holder
Fuse
Nozzle (not included)
This jack is for the foot-
switch only. Do not
connect any other device.
V
S
CAUTION
PART NAMES
3
