Hakko Electronics FG-101B - PACKING LIST AND PART NAMES; Part Identification; Display Contents Overview

1

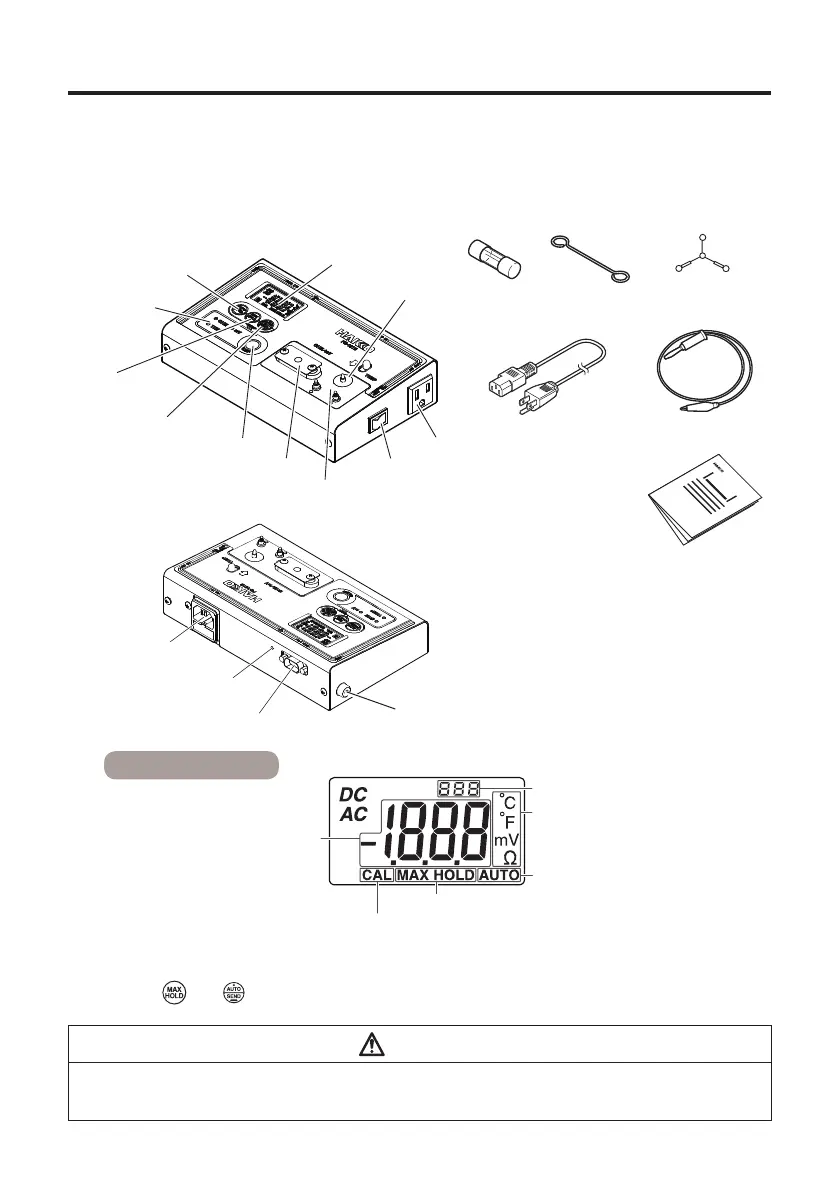

1. PACKING LIST AND PART NAMES
Please check that all items listed below are included in the package.
HAKKO FG-101B ............................................1
Fuse.................................................................1
Conductive wire ...............................................1
Sensor (qty 10) ................................................1
Ground clip ......................................................1
Power cord ......................................................1
Instruction manual ...........................................1
SYSTEM TESTER
FG-101B
Fuse
Conductive
wire
Ground clip
Blind plate
Power receptacle
LCD
AUTO ZERO button
MAX HOLD
button
SELECT button
Conductive plate
Power switch
Power cord
Protective plate
Mode display
Ground terminal (GND)
Sensor
AUTO/SEND
button
Display contents
*1 This alarm indicates sensor burnout.
If this alarm occurs, replace the sensor.
*2 When the
and buttons are held pressed simultaneously for a long time (1 sec or longer), the count
is reset.
Temperature measurement count
*2
°C

/

°F

/

mV

/

Ω

display
AUTO HOLD function
MAX HOLD function
Calibration
Display temperature, leak voltage and
tip to ground resistance/
Burnout alarm
*1
(Display of "-1" indicates burnout.

CAUTION

Do not use this product for a soldering iron which is not grounded.

Connect this product to a power receptacle equipped with a ground terminal and ground it before use.
Instruction manual
DATA I/O connection (9 pins)
Infrared output part
Inlet
HAKKO FG-101B
