5
CAUTION
• Since the main body is partially
made of resin, be careful not to
touch the tip to the main body. In
addition, also be careful not to
touch the tip to the terminal or the
slide pin.
• Although the measurement point
of the sensor undergoes special
treatment, it will deteriorate
gradually due to repeated
measurements. In order to measure
the temperature correctly, if the
measurement point is worn out,
replace the sensor with a new
one. The reference number for
sensor replacement is approx. 50
measurements.
• When ux is stuck on the terminal,
wipe it o with alcohol. (Do not use
thinner or benzin for wiping.)
• Read the values when the display
temperature is stable.

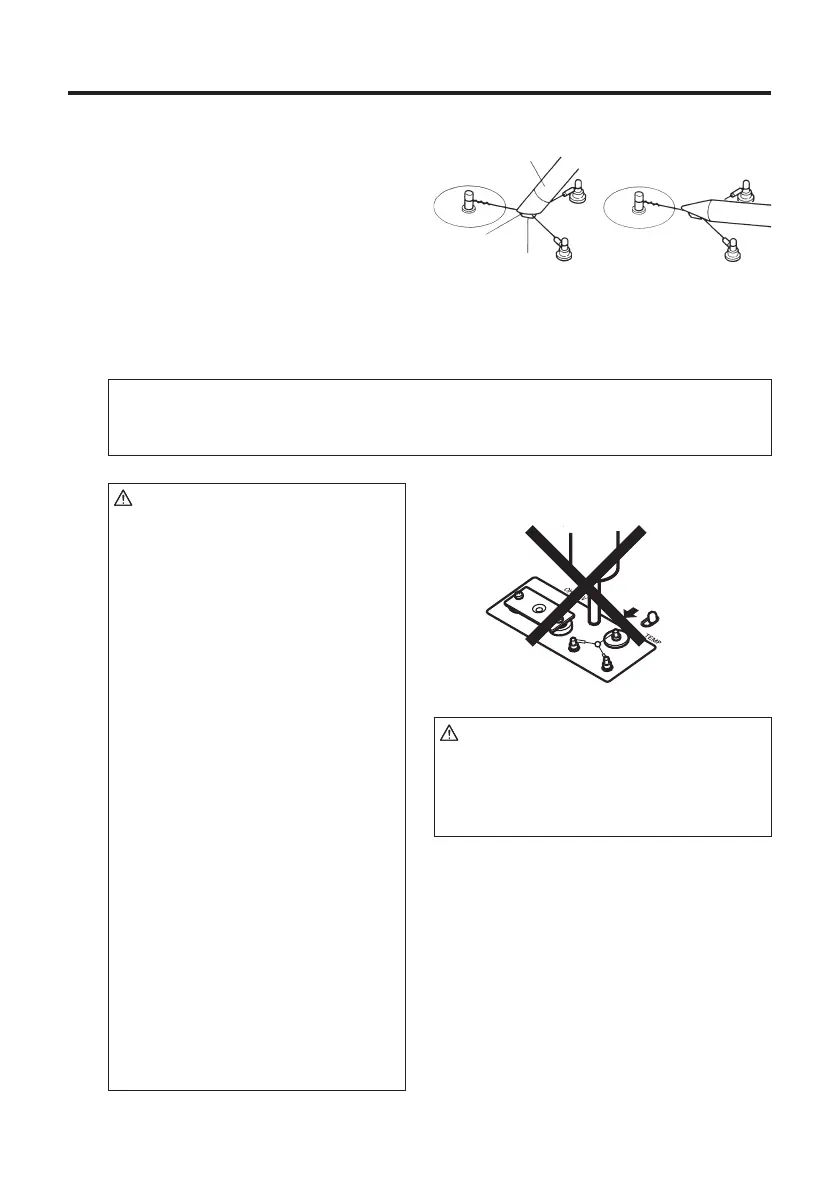

CAUTION
Do not measure the temperature by applying
hot air (HAKKO FR-811, etc.) directly to the
HAKKO FG-101B. If hot air is applied directly,
the HAKKO FG-101B will be damaged.
4-2 Measurement of tip
temperature
1) Press the SELECT button to set the
mode to "TEMP".
2) Apply a new coat of solder on
the tip and touch it on the sensor
measurement part (See the gures at
right.)
New solder
Measurement
point
Tip
NOTE:
When measuring, apply a new coat of solder on the tip. This action is required to ensure
that the conductive plate comes in rm contact with the tip.
To Next Page
