Page 17 of 33 V1.1

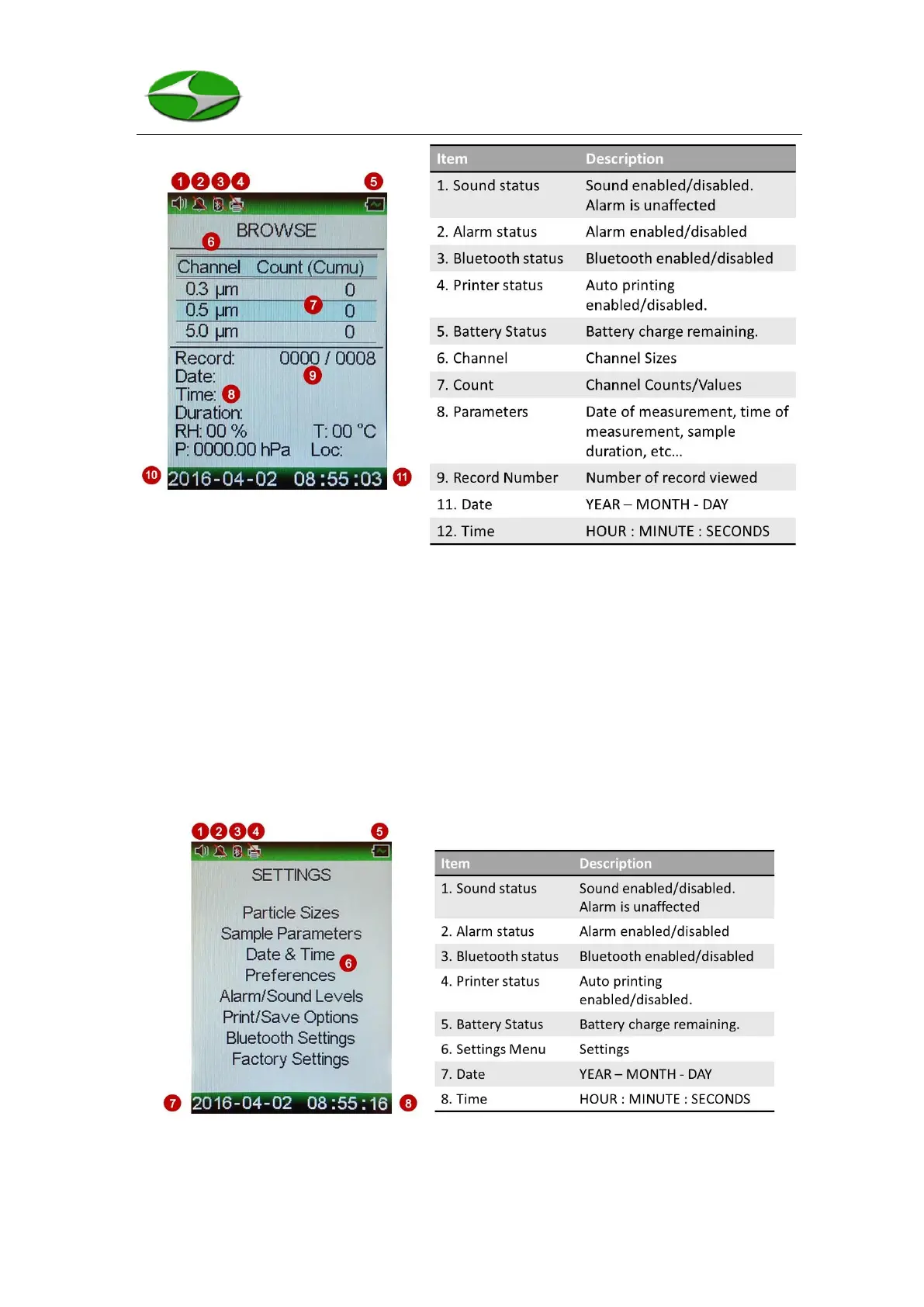

Figure 6: Browse Screen
2.3.4 Settings Screen
Figure 7 shows the Settings Screen of the HPC301. From this screen one can navigate
to the Browse Screen by pressing the UP key, the Measure Screen by pressing the
DOWN key, or enter the settings screen by pressing the ENTER key. All the unit’s
parameters are set using this screen. Figure 8 details the various parameters the user
can set.
Figure 7: Settings Screen
