HALE ESP-12 User Manual

❑ Installation
30
ESP Primer System Instruction Guide
p/n: 029-0810-01-0
WARNINGS - continued !
❑ ALWAYS USE CAUTION WHEN HANDLING OR DISPOSING OF
PROPYLENE GLYCOL.
❑ DO NOT USE ETHYLENE GLYCOL.
The tank should be a translucent, polypropylene tank to allow visual inspec-
tion of the lubricant level. Order Hale p/n: 108-0012-00-0 (4 quart / 3.8 liter
capacity), which includes the 1/8” NPT x 5/16” (8 mm) tube fitting with a #60
vent hole. (See Figure 3-10: “Typical ESP Lubricated Primer Layout.”)

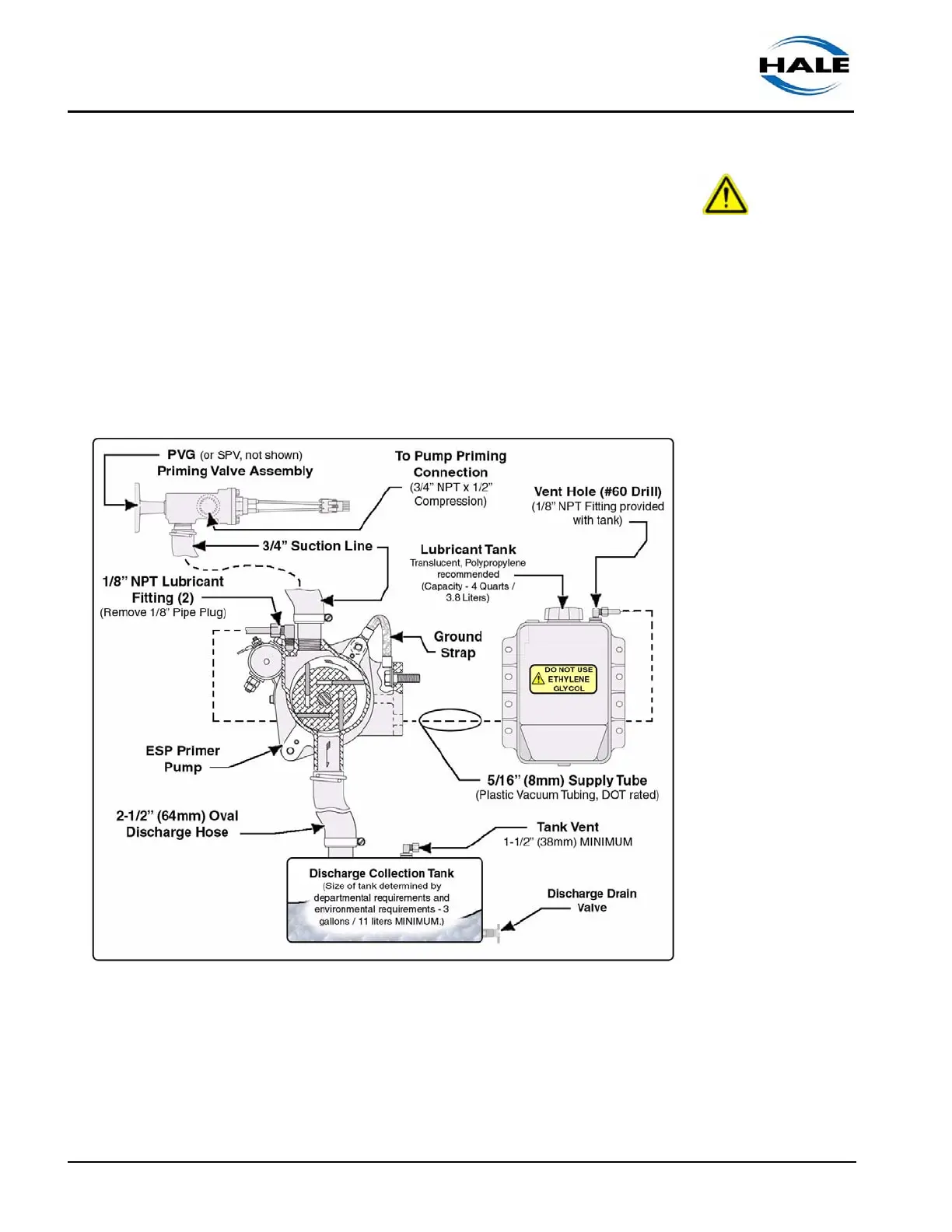

Figure 3-10: Typical ESP Lubricated Primer Layout
1. The tank should be located within proximity of the primer pump, prefera-
bly LEVEL with or BELOW the primer pump. Select a location visible to
the operator for checking and refilling.
