Hallberg-Rassy 310 Standard

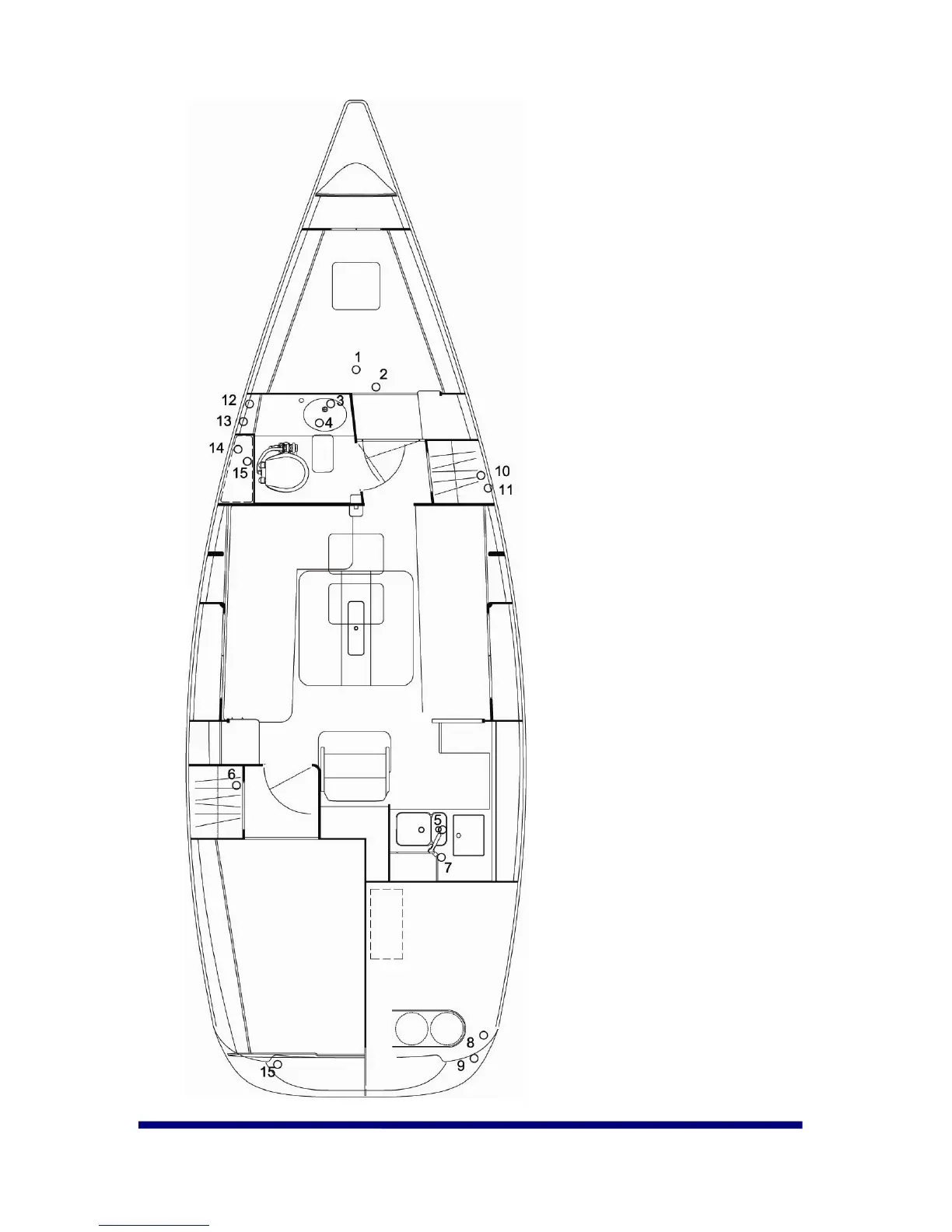

Through hull fittings overview
Divergence due to extra equipment can occur
1= Speed/depth transducer
2= Toilet in
3= Sink in WC room out
4= Toilet out
5= Galley sink out
6= Deck drain port side
7= Deck drain starboard side
8= Bilge pump out
9= Exhaust outlet
10= Breather fuel tank
11= Emergency bilge pump out
12=Shower waste pump out*
13=Holdingtank breather
14=Fresh water tank breather
15=Battery box breather
*=Not standard equipment
