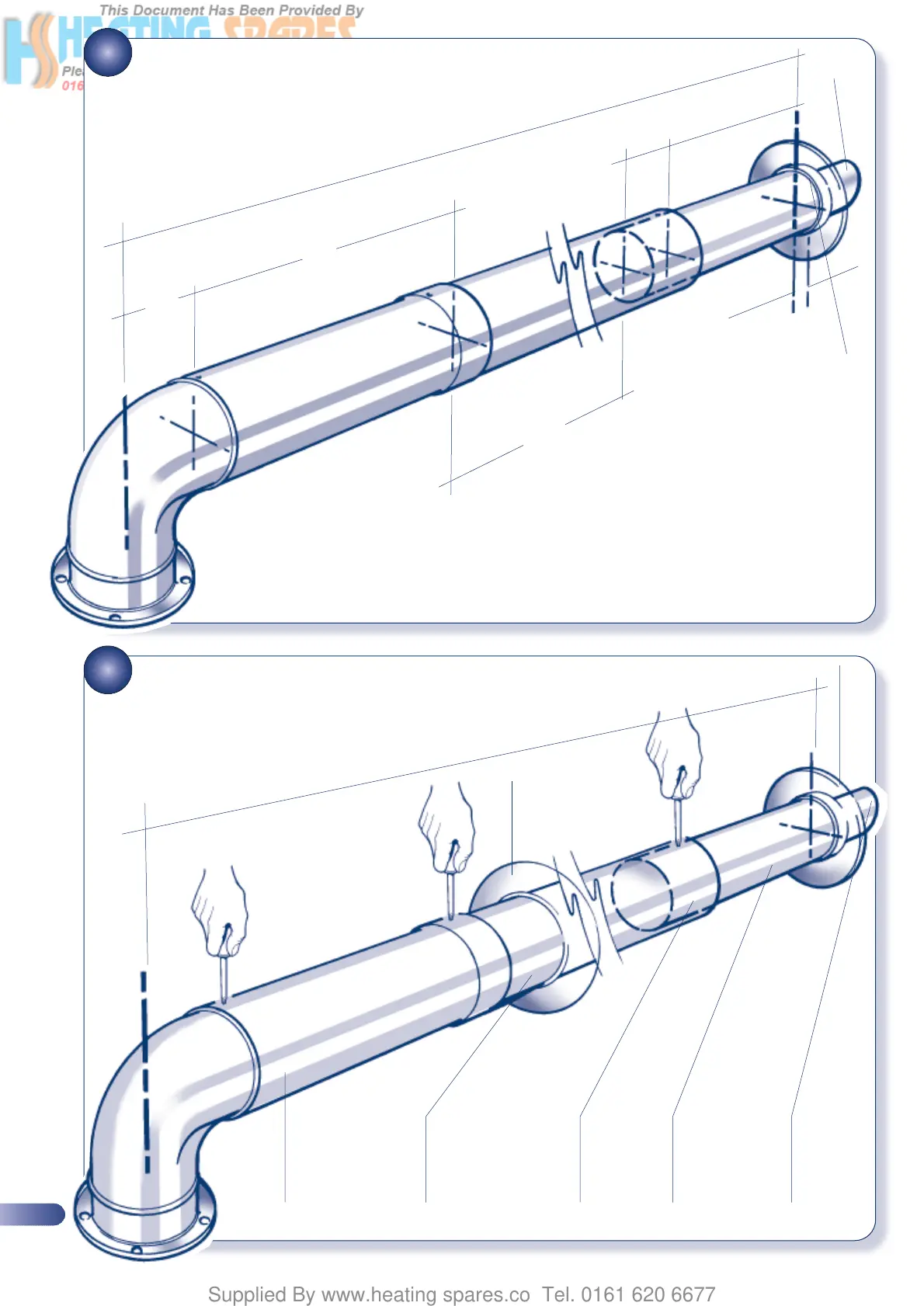

ACHIEVING THE CORRECT FLUE LENGTH
23
ASSEMBLING THE FLUE SYSTEM
INSIDE EDGE OF
EXTERNAL SEAL IN
POSITION ON AIR
DUCT
767mm
EXTENSION
MIN. OVERLAP
50mm (2in)
425mm
L
76mm
MAX. 319mm
TOP
1 SLIDE EXTERNAL SEALING RING UPTO FLUE TERMINAL
L
2
STANDARD DUCT
Push ducts fully over
elbow and drill two
3·3mm dia. holes. Secure
with self tapping screws
3 EXTENSION
Push extension duct
(if required) over standard
duct, engage fully.
Drill two 3·3mm dia. holes
and secure with
self-tapping screws
6
Drill and screw
telescopic
overlap
5 STANDARD
TERMINAL
Slide telescopic
section to achieve
length ‘L
4
Check terminal
is correctly
aligned
(see Fig. 27)
INTERNAL
SEALING
RING
17mm
16
