POOR WIRING MAINTENANCE CAN LEAD TO SHORT CIRCUITS,
DAMAGE, OR PERSONAL INJURY FROM HEAT AND POSSIBLE FIRE!
INSPECT WIRING CONNECTIONS DAILY

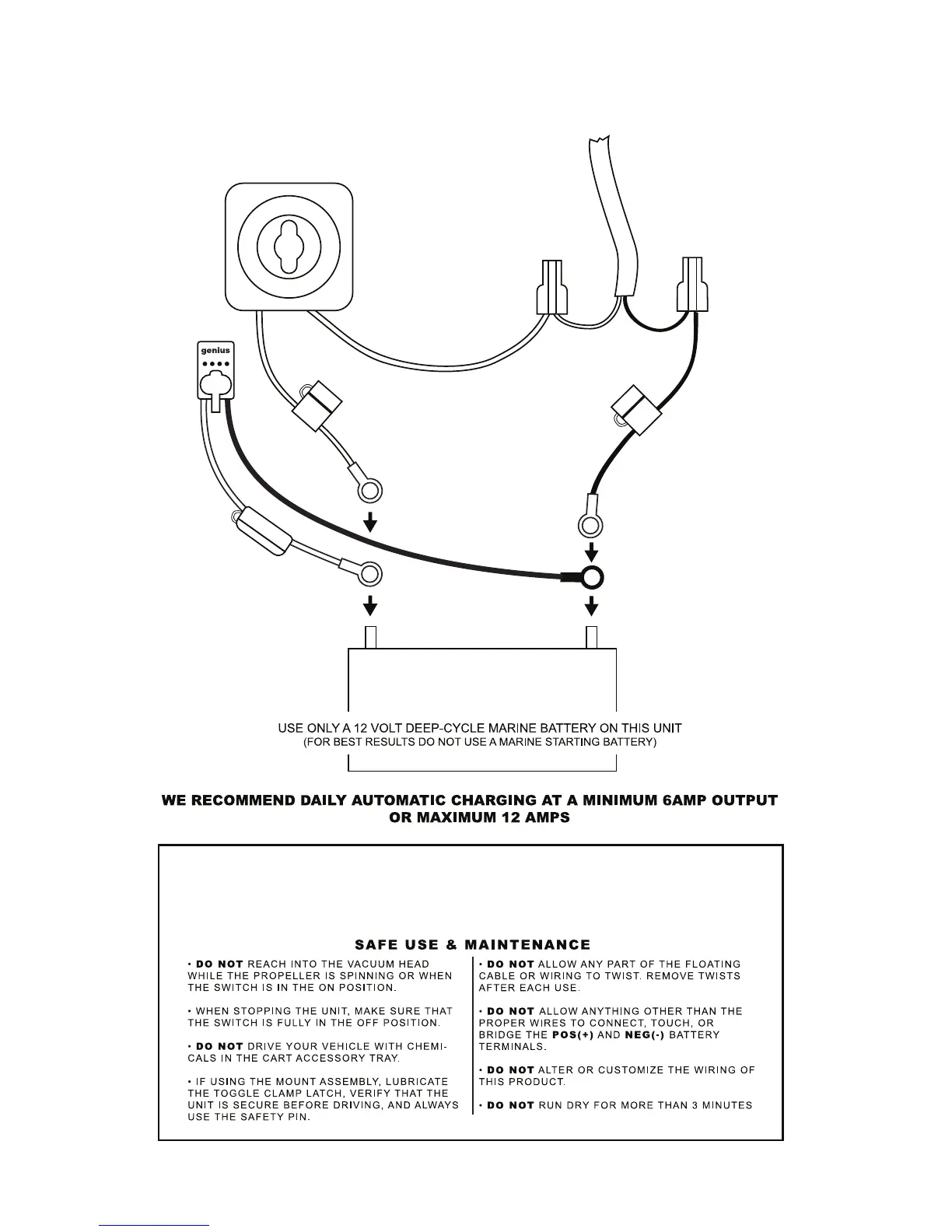

STANDARD (RED) SWITCH WIRING (HH1061 & HH1060)
+
-
POS NEG
RED
WHITE
WHITE BLACK
BLACK
12 VOLT DEEP-CYCLE MARINE BATTERY
HH1061 RED ON/OFF SWITCH
(INCLUDED ONLY WITH COMPLETE UNITS)
BLUE POWER CORD
WIRE NUT WIRE NUT
BLACK WITH RED STRIPE
NOCO GENIUS
CHARGING PORT
RED
30 AMP AUTOMOTIVE BLADE FUSE
HOLDER
(MAY BE PRESENT)
30 AMP AUTOMOTIVE BLADE FUSE
HOLDER
(MAY BE PRESENT)
10 AMP AUTOMOTIVE
BLADE FUSE
HOLDER
USER GUIDE 12
