VEHICLE MOUNT
TRAILER MOUNT
12”-16”
12”-16”
Make sure to tighten the hardware sufficiently
to avoid slippage.
Check all hardware and mount components
regularly for tightness, corrosion, and wear.
Do not transport your Hammer-Head unit with
chemicals in the accessory tray.
Secure all loose items on your Hammer-Head
unit before driving.
Refer to the clamp latch adjustment detail
(at right) to properly adjust the clamp latch.
Do not use the clamp latch without first adjusting
the fit and checking all four safety points.
WARNING!
WARNING!
WARNING!

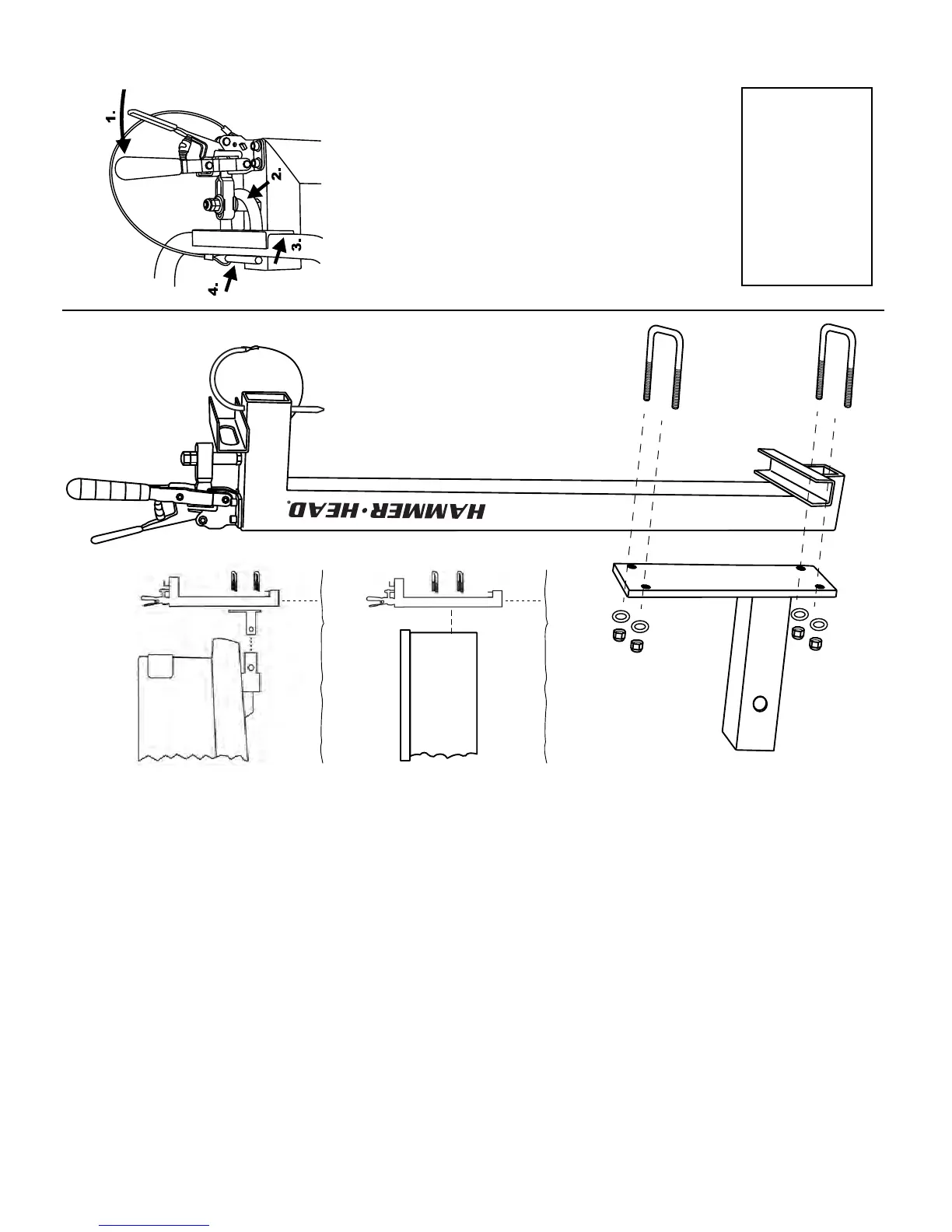

Setting up the Hammer-Head HH1300 MOUNT
ASSEMBL
Y
NOTE:
Y
our vehicle (or trailer) must have a 2” hitch
to use the mount assembly
.
If you are not using the hitch adapter for trailer mounting,
then U-bolt the Hammer-Head mount directly to the
trailer wall in an area that can support the total weight
sufficiently (approximately 130-140 lbs). The use of
straps or braces from the vehicle to the top of the
mount upright can provide additional support.
CHECK THESE FOUR SAFETY
POINTS BEFORE USING THIS
MOUNTING DEVICE:
1.
CLAMP LATCH MUST BE PUSHED
COMPLETELY FORWARD UNTIL IT
LOCKS INTO PLACE AND SPRING POPS
OPEN
2.
BOTH NUTS ON THE LATCH BOLT MUST
BE TIGHTENED DOWN AND THE BOLT
PIN SHOULD MAKE CONTACT WITH
CART MOUNT LOOP WHEN LATCHING
3.
CART FRAME MUST MAKE CONTACT
WITH MOUNT CHANNEL WHEN CLAMP
IS LOCKED DOWN
4.
ALWAYS USE THE SAFETY PIN
FAILURE TO MAINTAIN OR CHECK THIS
DEVICE COULD LEAD TO
SERIOUS ACCIDENT OR INJURY
CLAMP LATCH ADJUSTMENT DETAIL
WARNING!
HITCH ADAPTER
U-BOLT
MOUNT UPRIGHT
LOWER U-CHANNEL
CLAMP LATCH
SAFETY PIN
U-BOLT
INSTRUCTIONS:
Bolt the hitch adapter to the mount upright
using the included u-bolts so that the bottom
of the mount upright will be at least 12-16
inches from the road surface. The cart wheels
should be high enough so that they do not
make contact with steep driveways or speed
bumps. Do not set up with the cart tires rolling
on the road.
The lower u-bolt can be placed under the
lower u-channel if more height is needed
or above it if less height is needed.
THE OPERATOR
ASSUMES ALL
RESPONSIBILITY
AND RISK
ASSOCIATED
WITH THE USE
OF THIS PRODUCT
Questions? Call 561-278-8992 or email us: info@hammerheadvac.com
V1.2 02/01/18
