Hammerhead SS250 - Drive Train Components

FIG23ISEVERYTHINGEXCEPTFIG.22FIG.1

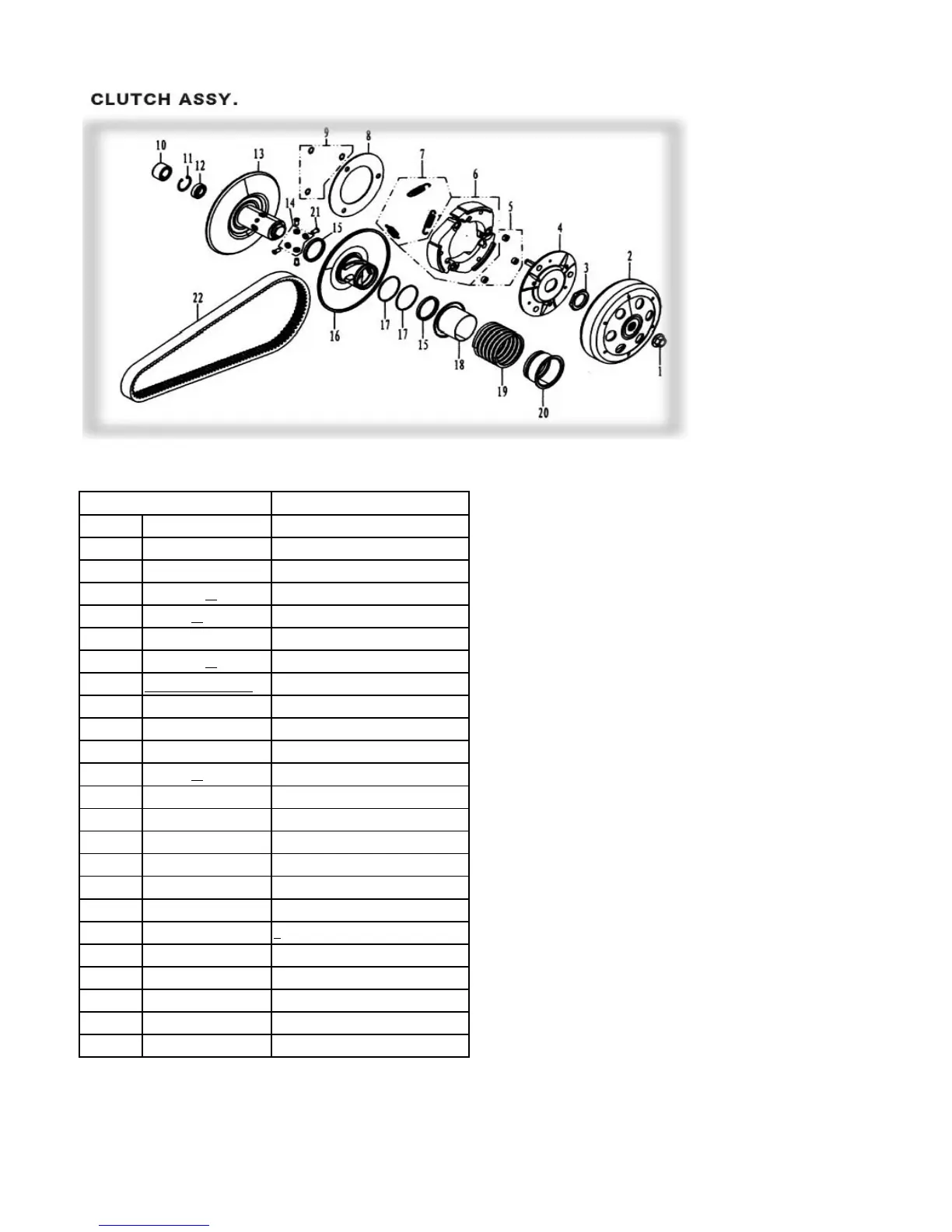

CLUTCH ASSY.
REF NO.
PART NO. DESCRIPTION
1
1
7
2MM-
05
2
008
NU
T M12X 1
.
2
5
1
172MM-052008
NUT M12X 1
.
25
2
172MM-A-052500
OUTER WHEEL,CLUTCH
3
172MM-0
52005
FLAT NUT M30X 1
4
172MM-A-052400 DRIVE DISC
5
172MM-A-052200
ABSORBER RUBBER
6
172MM-A-052600
CENTRI FUGAL BLOCK
7
172MM-A-052006 RETURN SPRING
8
172MM-A-052003 SIDE DISC
9
T896-1986-9 CIRCLIP
10
172MM-052310
ROLL BEARING 22X29X 18
11
T893.1-1986-28 CIRCLIP
12
1060902 BEARING
13
172MM-A-052300 DRIVEN WHEEL
14
172MM-A-052001 GUIDE ROUER
15
172MM-A-052104 DRIVEN WHEEL OIL SEAL
16
172MM-A-052100 MOVABLE DIVEN WHEEL
17
GB3452
0 RING
18
172MM-A-052007 SEAL BUSH
19
172MM-A-052004 CLUTCH SPRING
20
172MM-A-052009 BUSH
21
172MM-A-052002 GUIDE PIN
22
172MM-B-053000 DRIVE BELT
23 172MMͲAͲ05200
7
REARCLUTCHASSY.
