Hammerhead SS250 - Gear Box Assy

FIG.9ISEVERYTHINGEXCEPTFIG.1AND2

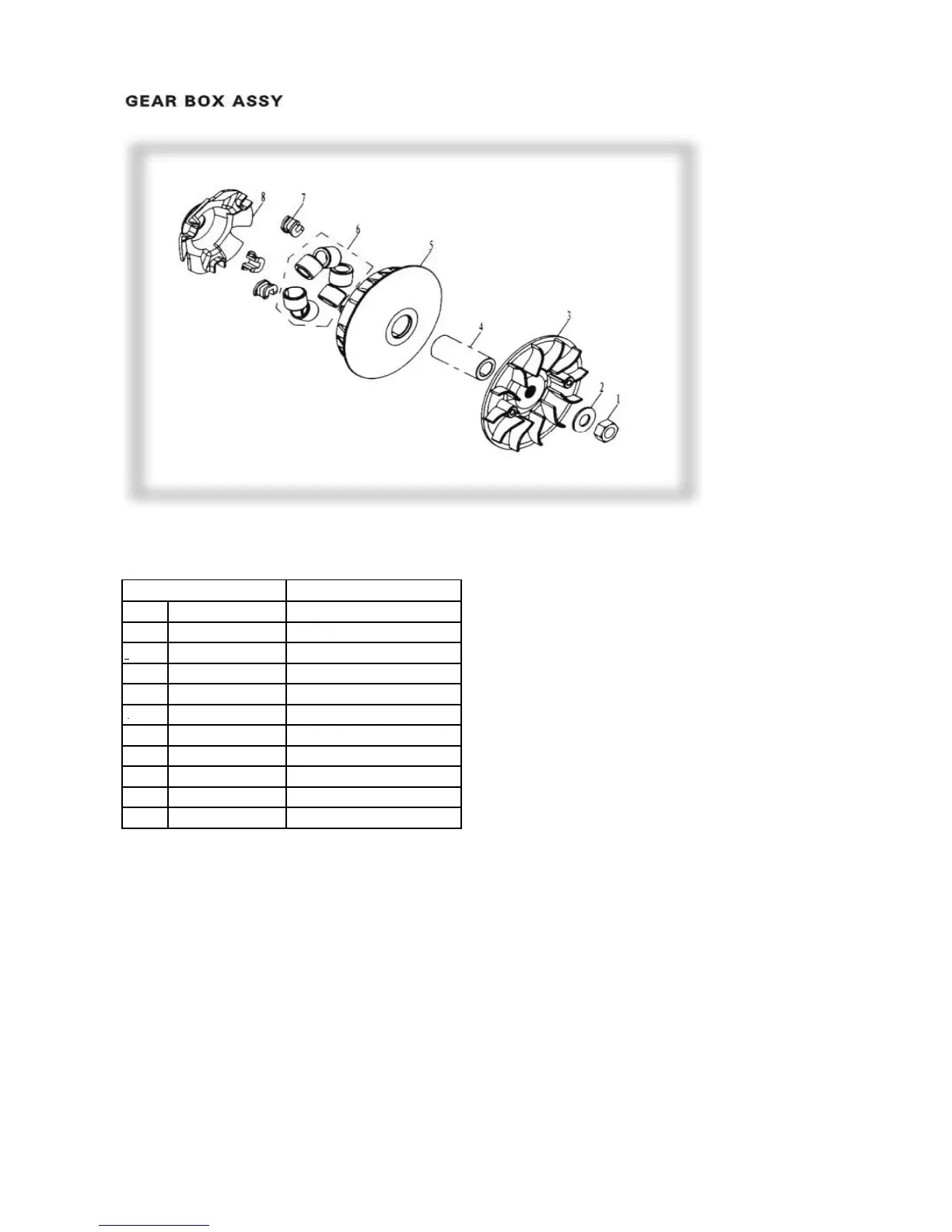

GEAR BOX ASSY
REF N
O
PART NO. DESCRIPTION
I
172MM-051007 NUT M14X 1.5
2
172MM-051006 WASHER 14.5X30X2
3
172MM-A-051005 DRIVE WHEEL
4
172MM-A-051003 DRIVE WHEEL BUSH
4
172MM A 051003
DRIVE WHEEL BUSH
5
172MM-A-051100 MOVABLE DRIVE WHEEL
6
172MM-A-051200 CENTRI FUGAL ROLLER
7
172MM-A-051004 SIDE BLOCK
8
172MM-A-051002 SLOPE PLATE
9 172MM-A-051101 FRONT CLUTCH ASSY.
