Hammond XPK-130G User Manual

5
Owner’s Manual

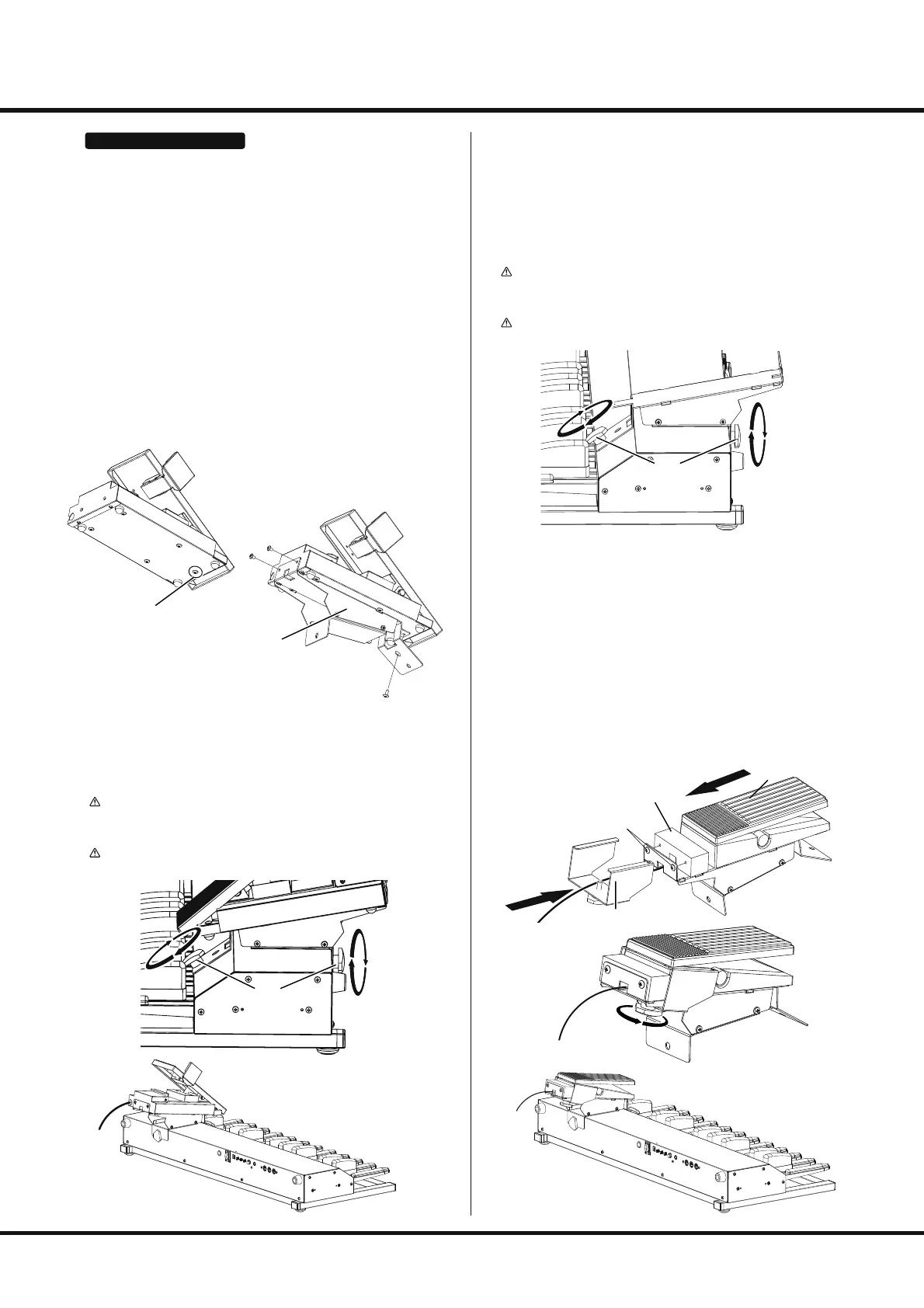

MOUNTING THE EXPRESSION PEDAL
You can mount Hammond Expression Pedals to the
XPK-200G or XPK-200GL. Please read the instructions
below on how to mount your particular Hammond Ex-
pression Pedal.
Mounting the EXP-100F/50/50J
① Remove the screw as shown from the bottom of the
Expression Pedal using a #2 Phillips screwdriver.
② Place the Expression Pedal on top of the Expression
Bracket 1.
③ Fasten the Expression Pedal to the front of the bracket
as shown using the two supplied M4 x 5mm screws.
④ Using the screw that you previously removed, fasten
the Expression Pedal to the bottom of the bracket as
shown.
⑤ Place the Expression Bracket 1 on top of the XPK-200G/
200GL as shown.
⑥ Fasten the Bracket to the XPK-200G/200GL by turning
the two supplied knob bolts clockwise.
Be sure to screw the knob bolts vertically into the panel sur-
face. Attempting to screw into the holes diagonally may cause
damage to the tapped holes.
Be sure that the Expression Pedal is securely fastened before
playing this unit, or damage may result.
③ Place the Expression Pedal on top of the Expression
Bracket 1 and route the cord through the hole in the
Bracket as shown.
④ Place the Bracket Spacer on the Expression Bracket 1 as
shown and fasten the spacer to the bracket with a
#2 Phillips screwdriver and the 2 supplied 4 x 8mm
screws.
⑤ Fasten the Expression Pedal to the Expression Bracket
1 by sliding the Expression Bracket 2 onto the Expres-
sion Pedal assembly as shown and turning the supplied
knob bolt clockwise.
XPK-200G/200GL only
Mounting the EXP-20 or V-20R
① Place the Expression Bracket 1 on top of the XPK-200G/
200GL as shown.
② Fasten the Bracket to the XPK-200G/200GL by turning
the two supplied knob bolts clockwise.
Be sure to screw the knob bolts vertically into the panel sur-
face. Attempting to screw into the holes diagonally may cause
damage to the tapped holes.
Be sure that the Expression Pedal is securely fastened before
playing this unit, or damage may result.
EXP-100F/50/50J
ExpressionBracket1
knobbolts
knobbolts
EXP-20/V-20R
BracketSpacer
ExpressionBracket2
φ4x8mmscrews
M4x5mmscrews
re-attachthe
removedscrew
temporarilyremove
thisscrew
