HAMPTON BAY 445993 - Installing the Decorative Scroll; Blade Installation

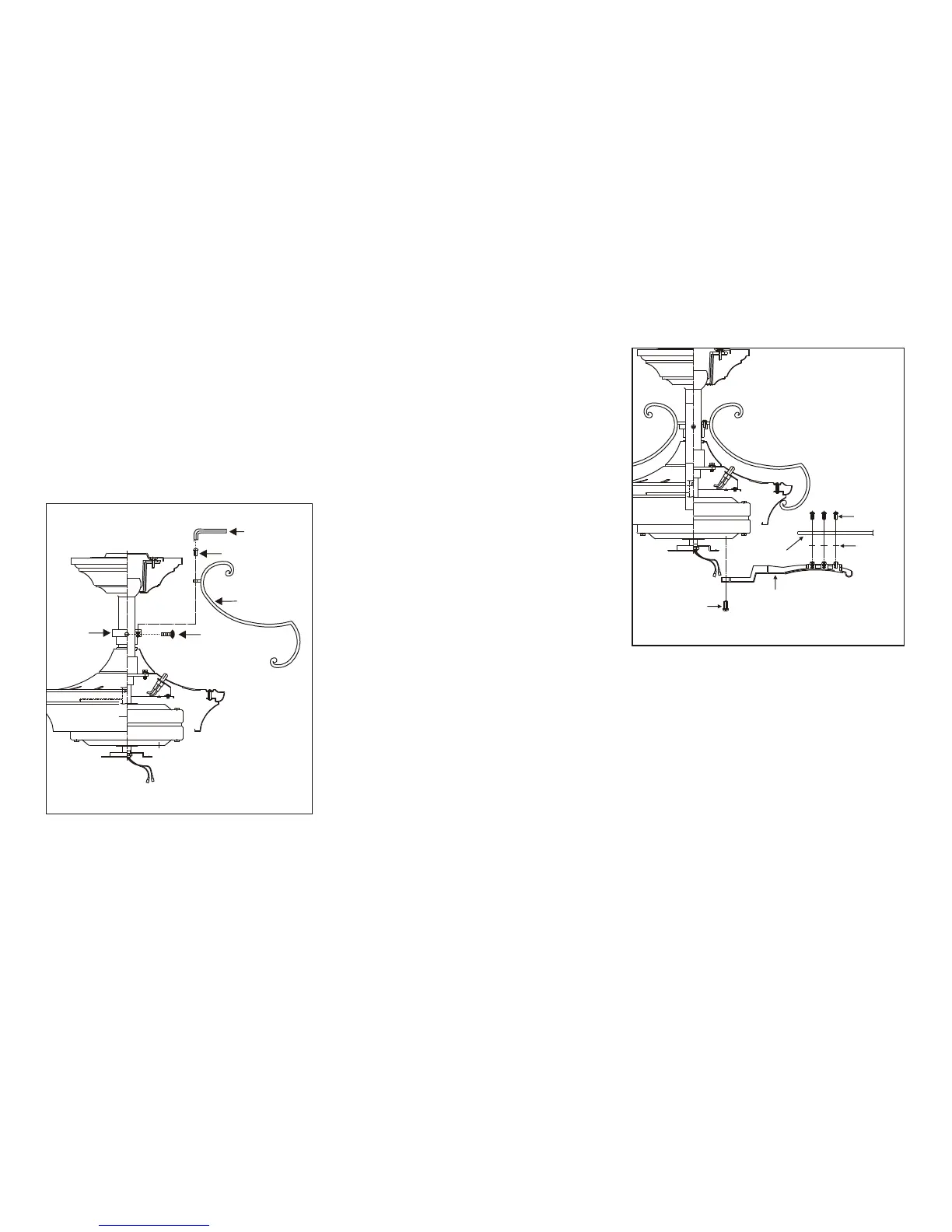

8. Blade Installation
Step 1. Attach fan blades to the blade
holder using the screws and rubber washers
provided. Tighten screws securely, repeat
procedure with remaining blades. (Fig. 18)
Step 2. Align motor holes to blade holders
and secure with screws provided, tighten
screws securely. (Fig. 18)
Figure 18
Blade
Blade holders
Screws
Screws
Rubber
washers
7. Installing the
Decorative Scroll
Install the decorative scroll to the
decorative scroll ring with the screws
provided. Be sure to tighten all screws.
Then tighten the set screw on the decorative
scroll ring. (Fig. 17)
Scroll ring
screws
Scroll
ring
Screws
Decorative
scroll arms
Allen wrench
Figure 17
