Assembly

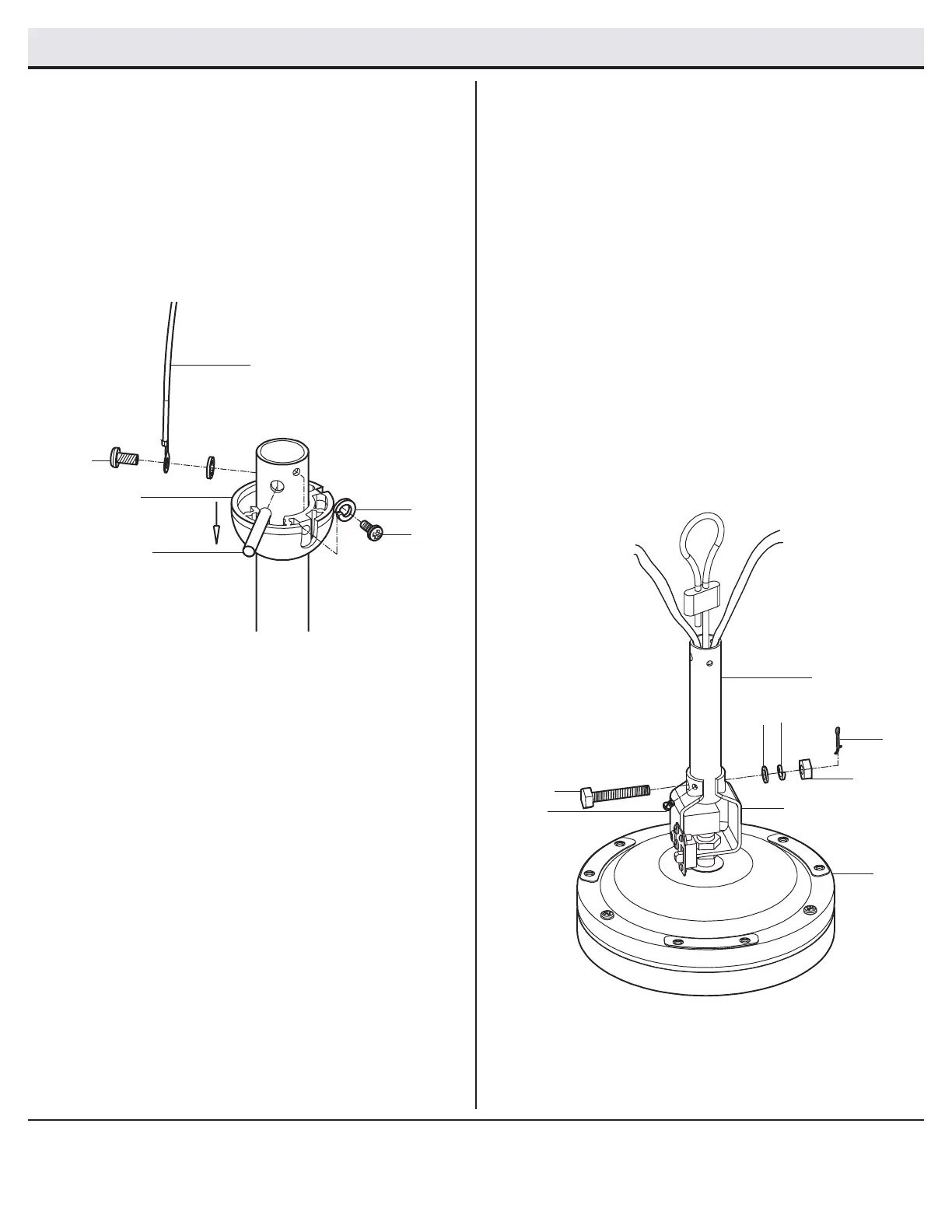

Installing the downrod
□ Route the wires exiting the top of the motor housing (G)
through the downrod (B).
□ Loosen the set screw (ZZ) from the coupler (J).
□ Insert the downrod (B) into the coupler (J) on the top of the
motor housing (G).
□ Align the holes at the bottom of the downrod (B) with the holes
in the coupler (J) and insert the hanger bolt (EE).
□ Secure the hanger bolt (EE) using the at washer (FF),
lockwasher (HH), and the hexagonal nut (GG).
□ Insert the split pin (NN) into the end of the hanger bolt (EE) and
split the ends of the split pin (NN) apart to secure the hanger
bolt (EE).
□ Tighten the set screw (ZZ) rmly.
2
B
NN
G
GG
FF
HH
J
EE
ZZ
Dismantling the ball/downrod
assembly
□ Loosen the hanger ball (H) by removing the set screw
(PP) and lockwasher (QQ) at the top of the downrod (B)
which holds the hanger ball to the downrod.
□ Slide the hanger ball (H) down the downrod (B) and
remove the support pin (RR).
□ Unscrew the green groundwire (I) located at the top of
the downrod (B) by unscrewing the screw (SS) on the
downrod (B).
1
I
PP
QQ
H
SS
RR
