5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

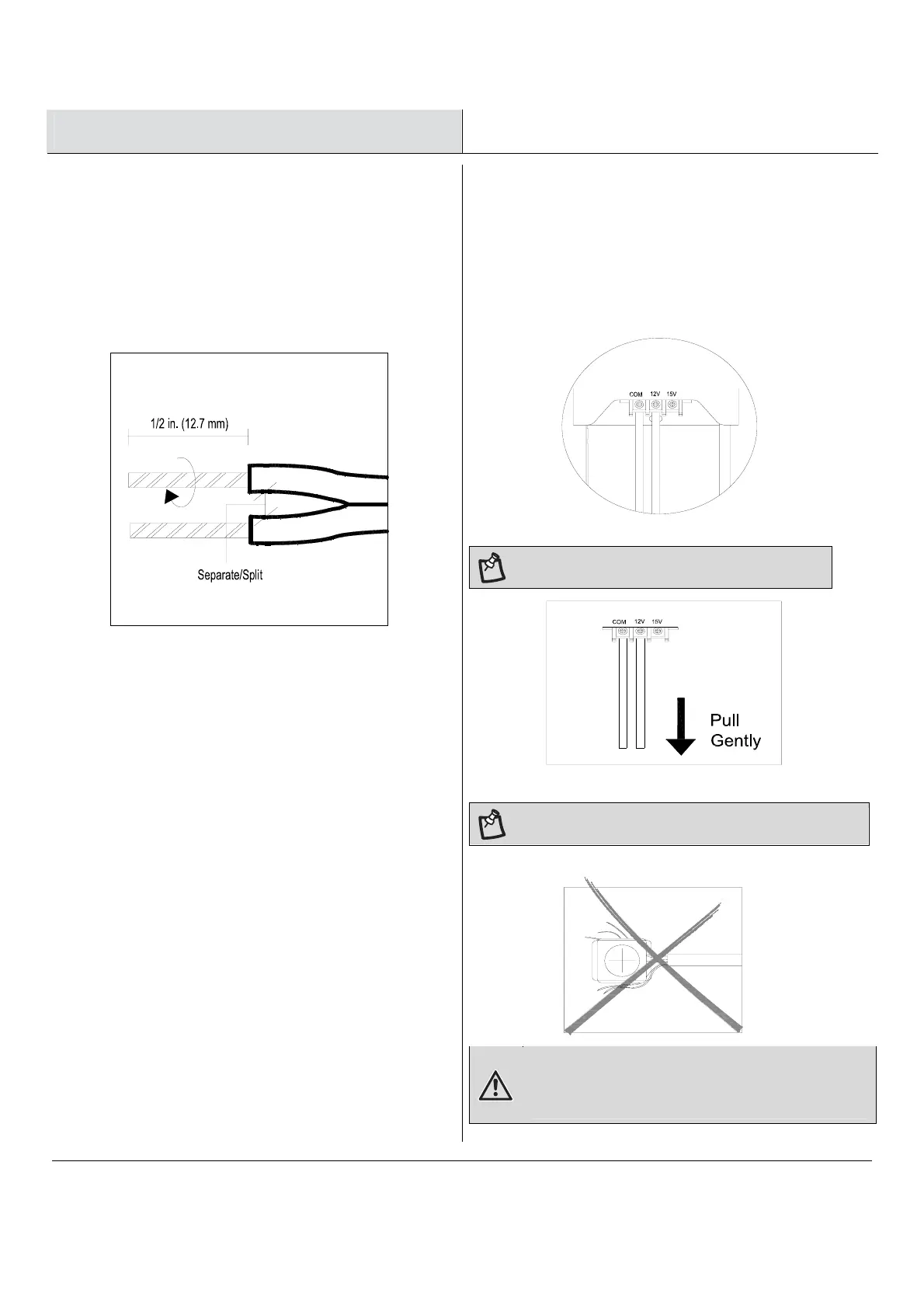

Installation
1
Preparing the Cable
2
Connecting the Cable to the
Transformer
Being careful when splitting NOT to expose the copper wire, remove
the landscape wire insulation 1/2 in. from both wires and twist ends.
Also, refer to strip length guide on the transformer.
Lay the transformer on a flat, stable surface and insert the stripped
end of one wire under the terminal clamping plate “COM”. Then
tighten the screw. Repeat this procedure for clamping plate “12V” or
“15V”.
See cable selection chart for correct voltage tap.
NOTE: Gently pull on the landscape wire to
verify if the connection is strong.
NOTE: Verify that there are no loose cable strands.
WARNING: Risk of Fire
Make sure there is no wire insulation under the clamping
plate and firmly tighten the terminal screws.
To Next Page
