Assembly - Standard Ceiling Mount

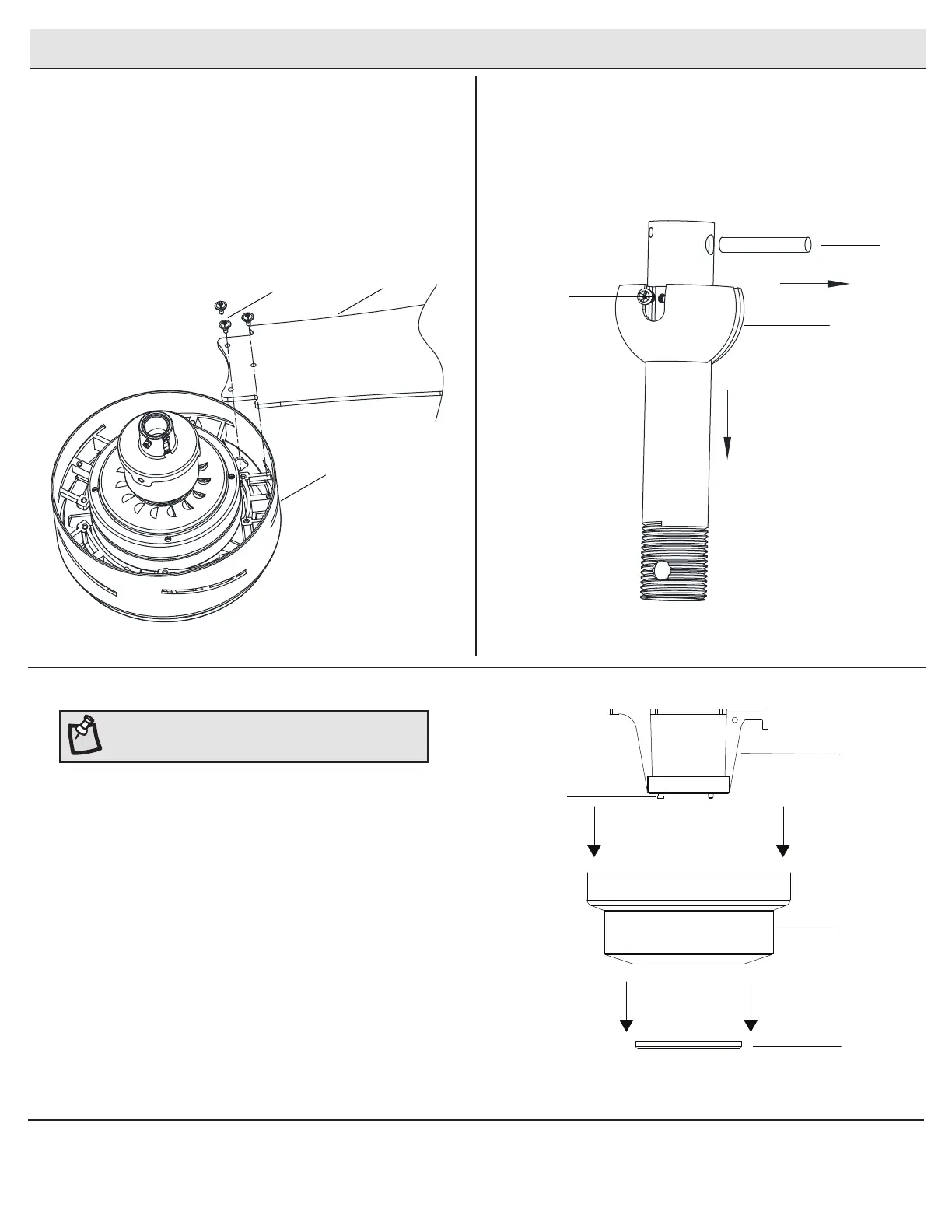

Attaching the blades
□ Attach a blade (F) to the fan motor assembly (E) by inserting
the blade (F) into slots in the side of the fan motor assembly (E)
and aligning the three screws holes in the blade with the holes
in the center ywheel and secure with screws (AA).
□ Make sure all the screws are rmly tightened.
□ Repeat these steps for the remaining blades.
1
Remove the hanger
ball from downrod
□ Remove hanger ball from downrod by loosing the set screw and
removing the pin as shown in illustration. Keep parts. Remove
preassembled keeper pin and cross pin from downrod. Keep
parts
2
AA
F
E
Hanger ball
Set screw
Pin
Preparing for standard mounting
□ Pull off the canopy bottom cover (JJ) from the canopy
□ Loosen the two canopy screws (HH) located on the bottom of the
mounting bracket (A), and turn the canopy counterclockwise
to remove the mounting bracket (A) from the canopy (C).
3
A
C
JJ
HH
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
