HAMPTON BAY FP-51186D User Manual

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
1

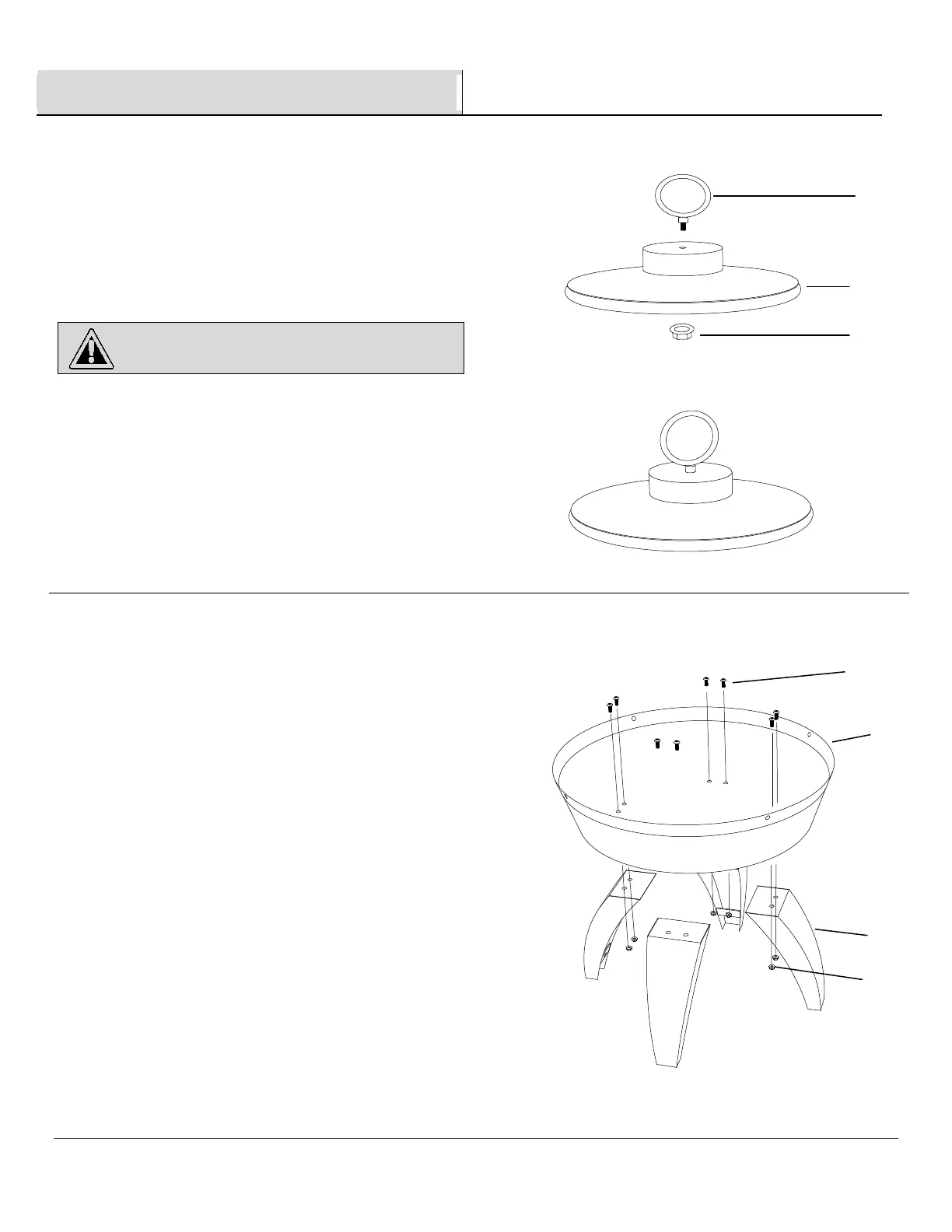

Assembling the mesh cover
□ Insert the handle (A) into the hole of the chimney
cover (B).
□ Attach the handle (A) to the chimney cover (B) using
a nut (DD). Securely tighten with an M6 wrench (not
included).
CAUTION:
Wear gloves during assembly.
2
Assembling the stand
□ Attach the stands (G) to the chimney bottom (F) using
M6 x 14 mm bolts (BB) and M6 nuts (DD).
□ Hand tighten the bolts (BB) and nuts (DD). Do not
over-tighten.
BB
G
Assembly
A
B
F
DD
DD

HAMPTON BAY FP-51186D Specifications

General

Brand	HAMPTON BAY
Model	FP-51186D
Category	Outdoor Fireplace
Language	English
