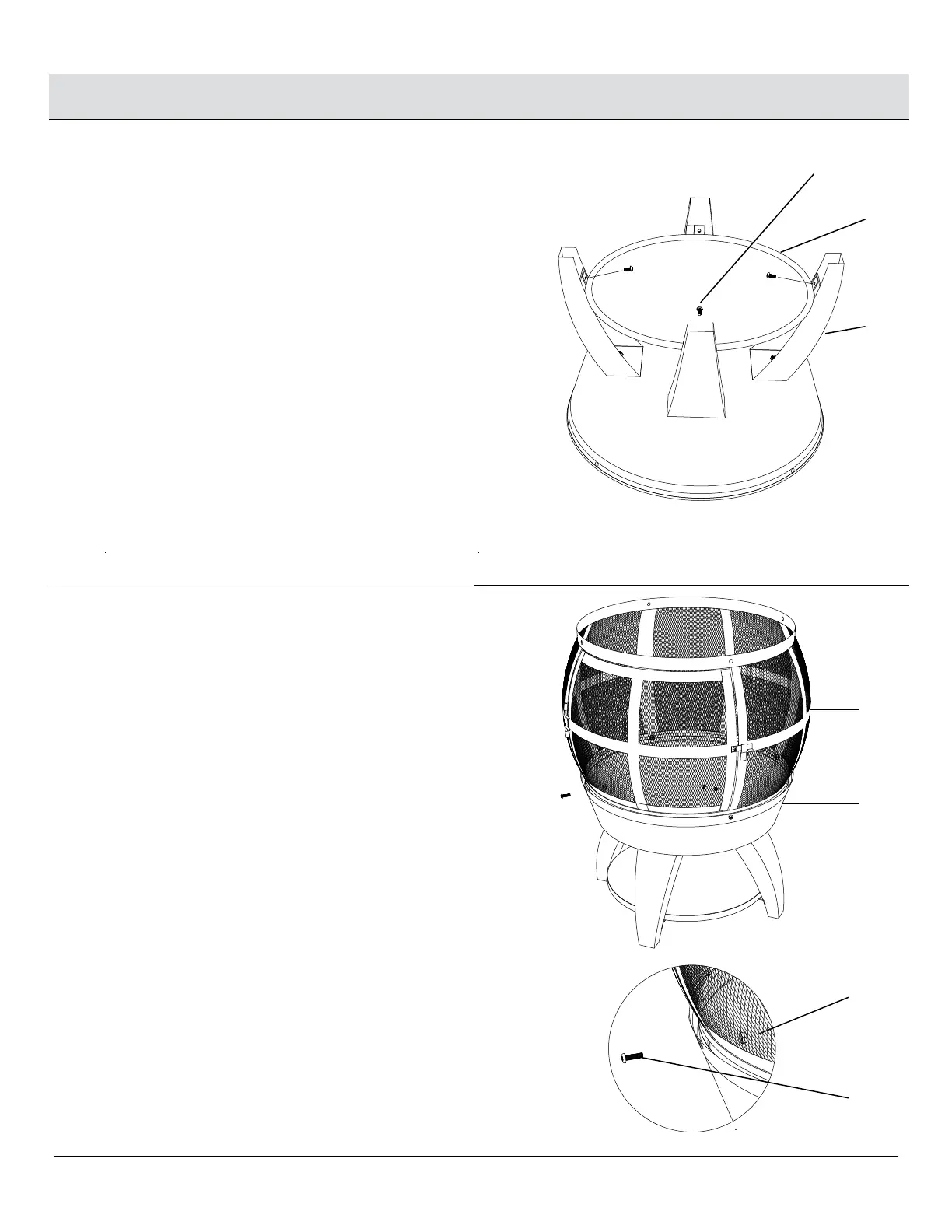

Assembly (continued)
3
Attaching the tray
□
Attach the tray (H) to the stand (G) using M6 x 12mm
bolts (AA).
□ Securely tighten each bolt (AA) with a Philips
screwdriver (not included).
4
Attaching the mesh screen
□ Attach the mesh screen (E) to chimney bottom (F)
using M6 x 25 mm bolts (CC) and M6 nuts (DD).
H
E
AA
G
□ Securely tighten each bolt (CC) and nut (DD) with an
M6 wrench and Philips screwdriver (not included).
F
CC
DD
