HAMPTON BAY FP-51186D User Manual

7
Assembly (continued)
5

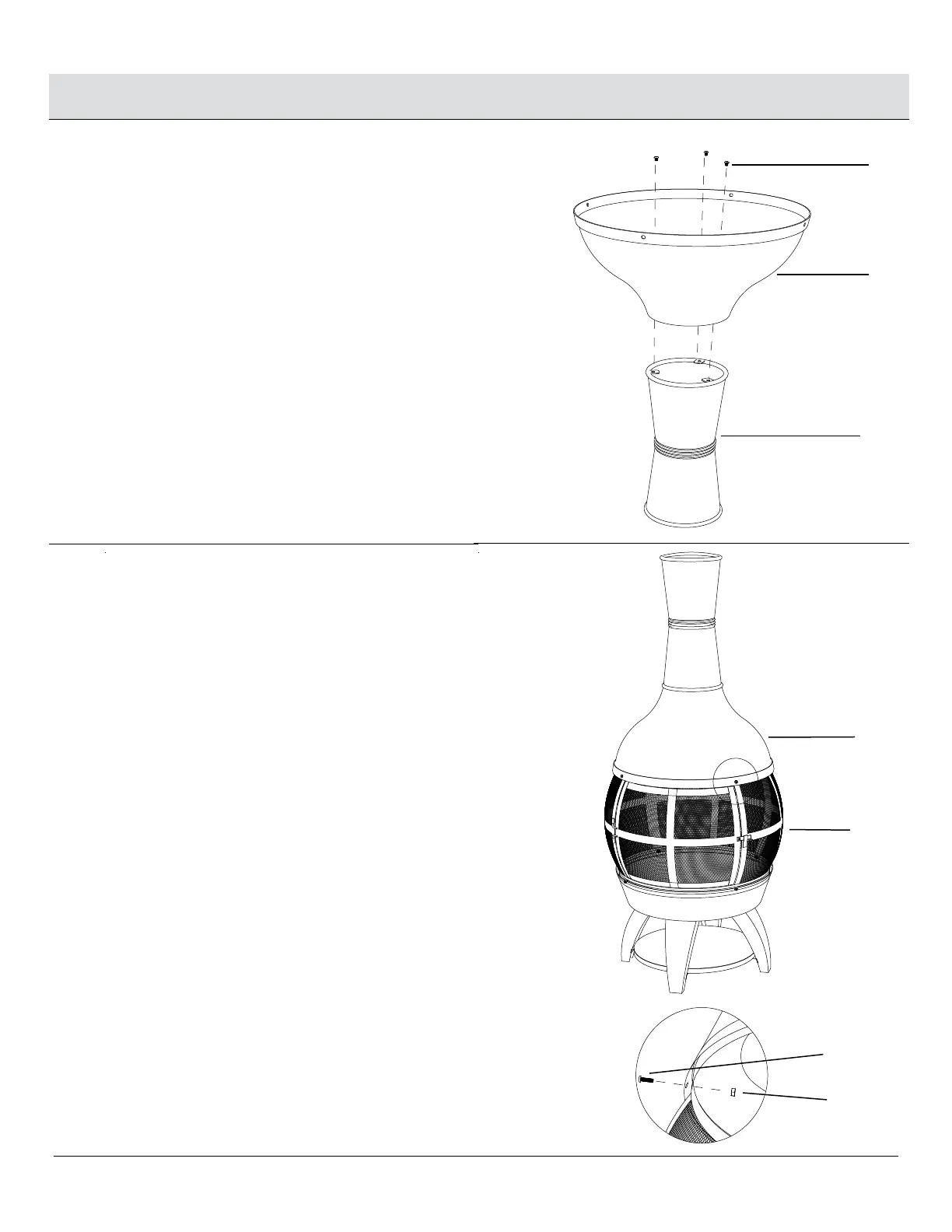

Attaching the chimney top
□
Attach the chimney top (D) to the chimney flue (C)
using M6 x 12 mm bolts (AA).
□
6
Attaching the chimney flue
□ Attach the chimney top (D) to the mesh screen (E)
using M6 x 25 mm bolts (CC) and M6 nuts (DD).
D
AA
C
□ Securely tighten each bolt (CC) and nut (DD) with an
M6 wrench and Philips screwdriver (not included).
D
Securely tighten each bolt (AA) with a Philips screwdriver
(not included).
E
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
CC
DD
