HAMPTON BAY FT-116 - Assembly Instructions; Assemble Mesh Cover and Stand Components

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
1

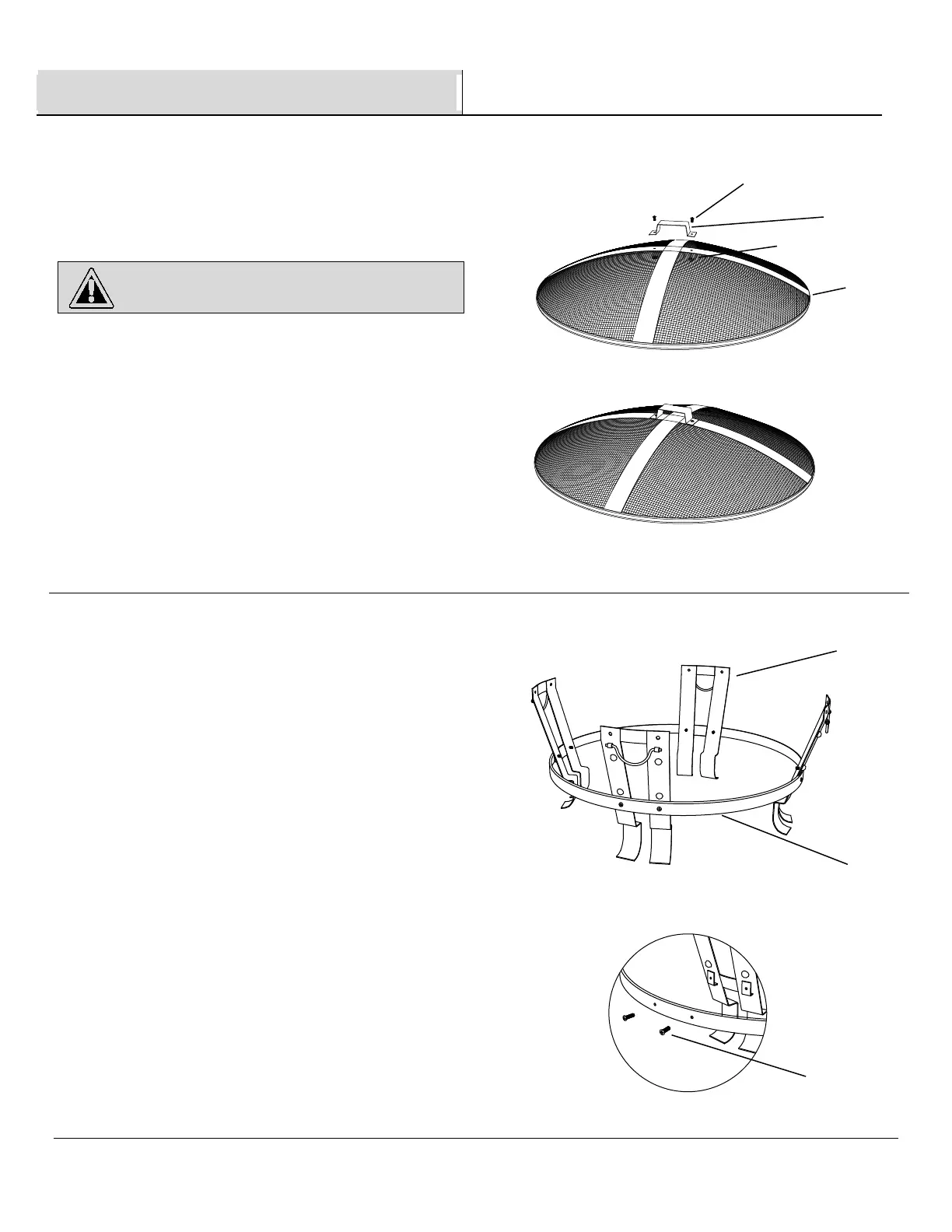

Assembling the mesh cover
□ Attach the handle (A) to the mesh cover (B) using
M6 x 10 mm bolts (AA) and M6 nuts (CC).
CAUTION:
Wear gloves during assembly.
2
Assembling the stand
□ Attach the stand (F) to the lower smaller ring (G)
using M6 x 16 mm bolts (BB).
□ Do not tighten the bolts at this step.
G
BB
Assembly
CC
F
B
A
AA
