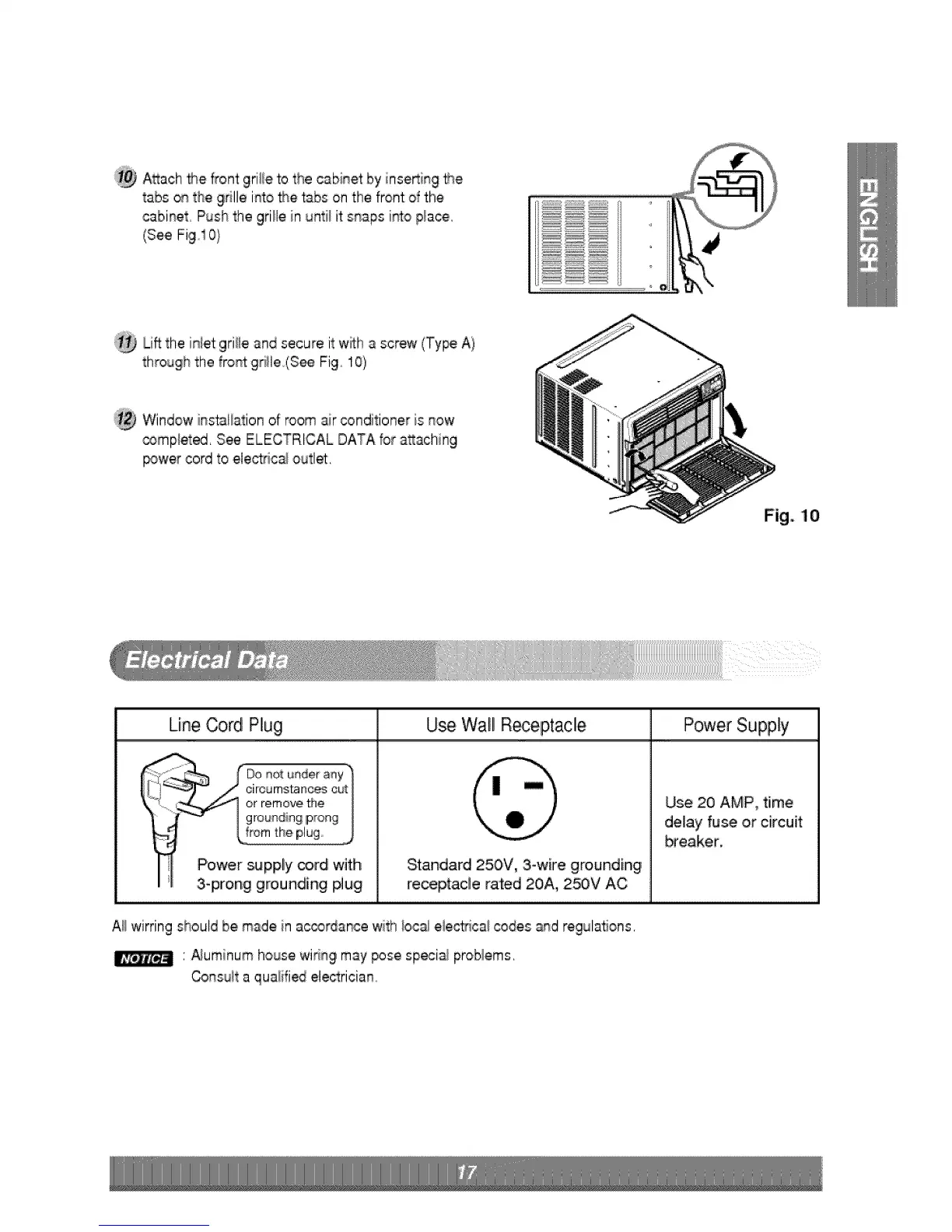

:_ A_ach _e front gri!le to the ,cabinetby inse_ing _e
tabs on the grille into '_e tabs on thie front of the
cabinet, Push the grille in unti_it snaps into p_ace
(See Fig,1O)
Lift:the inie'tgrille and secure it with a screw (Ty_ A)
through the fro_ gd_le.(S_ Fig. 1O)
Window ilnstaliationof room air conditioner is now
completed, See ELECTRICAL DATA for attaching
_wer cord to elec_ica_outlet,
Fig. 1O
Line Cord Plug Use Wall Receptaclle
Standard 250V 3-wire grounding
receptacle rated 20,A, 250V AC
Ali wirring should be made in accordance v_ith_oca_e,lectrica_codes and regulations,
' _uminum house widn9 may pose speci_ proNems,
Consuit a qualified electrician
Power Supply
Use 20 AMP, time
delay fuse or circuit
_eaker.
