HAMPTON BAY PANTRY - Sliding Panel

7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
INTERNAL USE
Cabinet Assembly
2
Attaching the bottom and top panel
NOTE: Identification

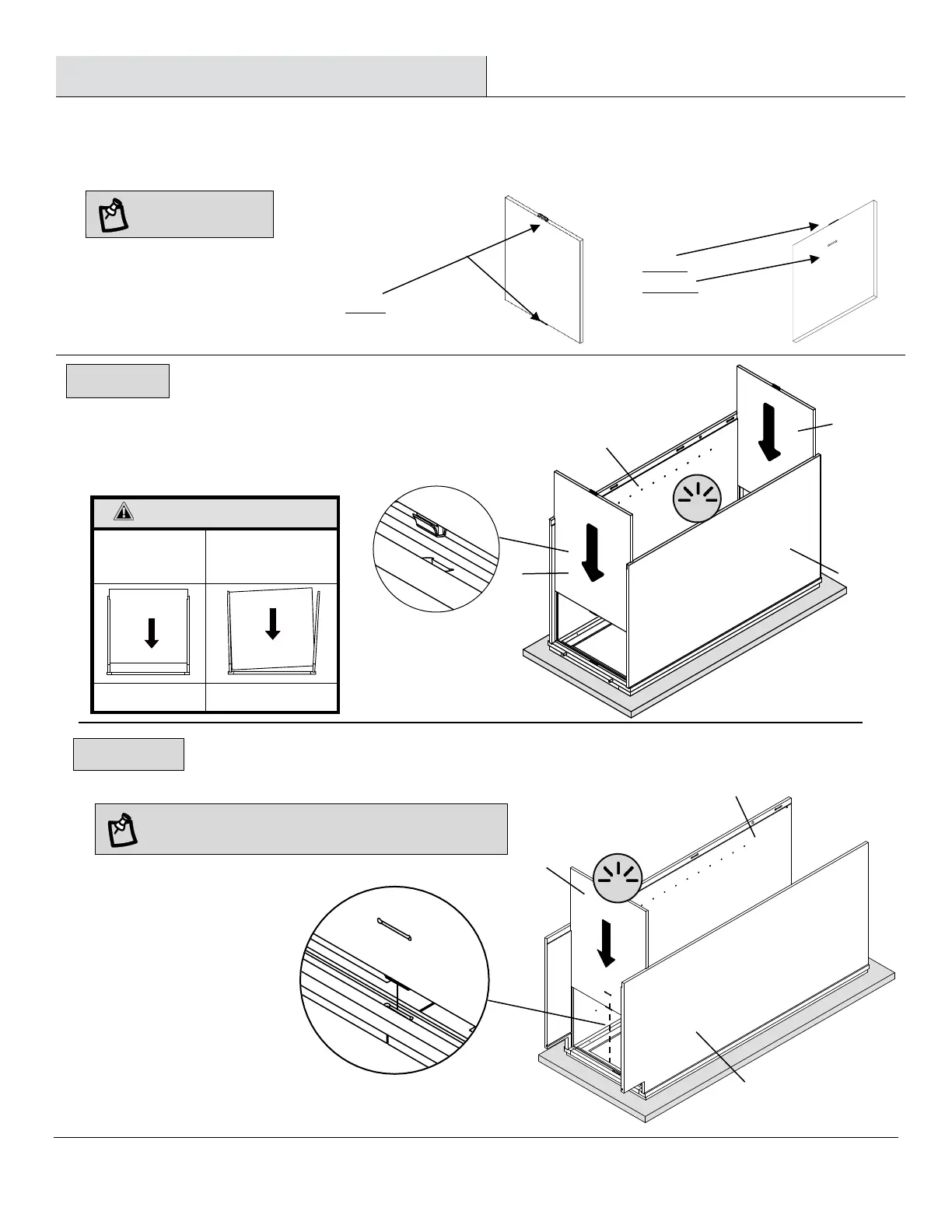

 Slide the Top and bottom panel (E) into grooves in the sides (B). Use
both hands to firmly press the panel (E) down at all locations with
connectors to ensure they lock together tightly.
SLIDING PANEL
Bottom/top/
middle panel
slides vertically.
Bottom/top/middle
panel slides
unevenly and tilting.
RIGHT
WRONG
 Repeat these steps for the bottom panel (I) and sides (G) of the Base Cabinet
NOTE: Make sure the female connector at the bottom
panel (I) is facing out.
BASE CABINET
TOP CABINET
The top and bottom
panels (E) of TOP
CABINET are identical
and have:
2 male connectors.
The bottom panel (I)
of BASE CABINET has
- 1 male connector
- 1 female connector
for Toekick.




I
G
G
Click
E
B
B
E
Click
