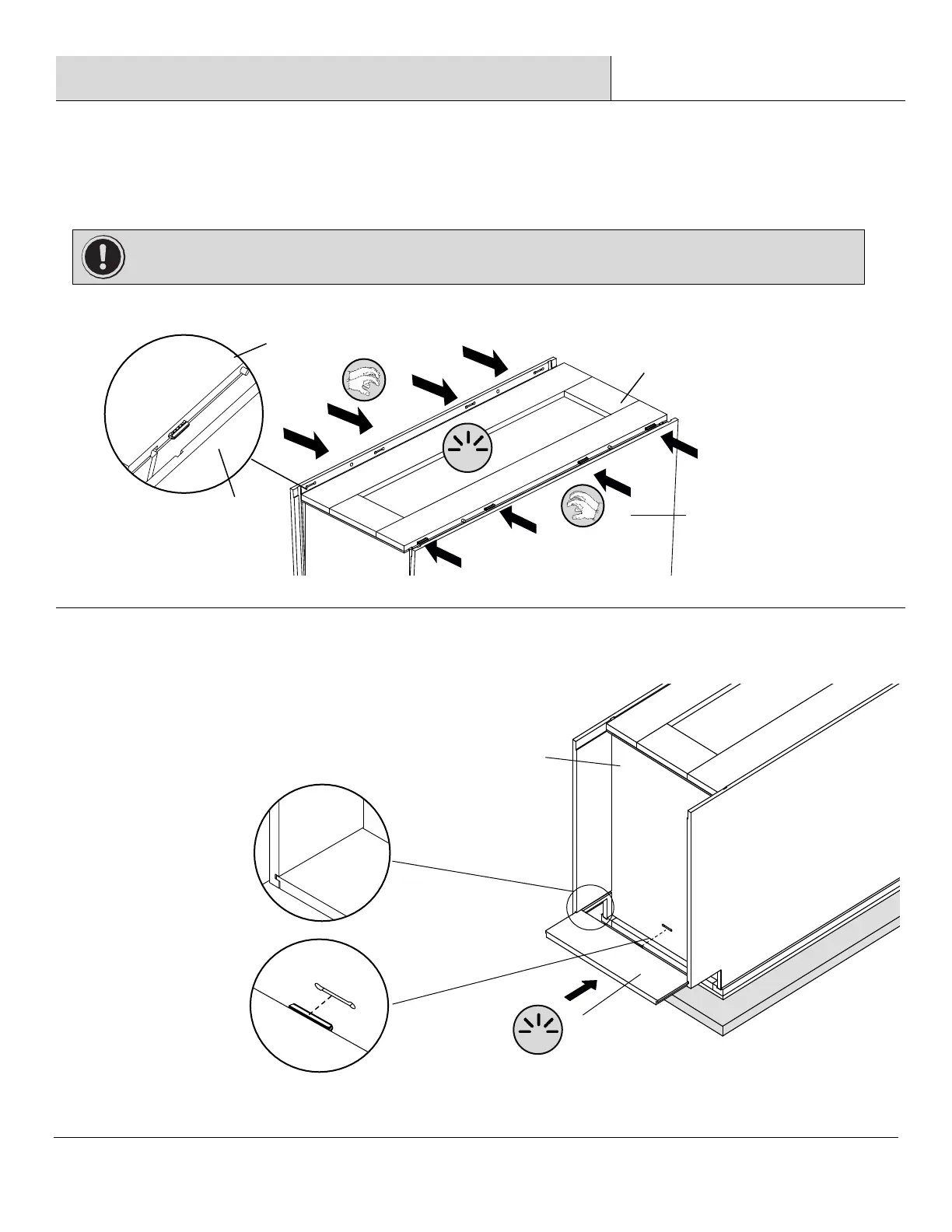

Cabinet Assembly (Continued)
4
Attaching the side panels to bottom panel.
IMPORTANT: Use your hands to grab the 2 side panels (B/G) inward at all locations with connectors to ensure they
lock together with (C/H) tightly.
 Install the two side panels (B/G) to the back panel (C/H) by: aligning the wooden dowels & female connectors on the back panel
(C/H) to the holes & male connectors on side panels (B/G).
5
Attaching the toe kick for the bottom cabinet
 Slide the toe kick (J) into grooves in the bottom (I), make sure the
male connector on toe kick (J) is aligned with female connector on
the bottom panel (I).
 Use both hands to firmly press toe kick (J) to ensure connectors
they lock together tightly.
B
C
B
C
J
I
Click
Click
