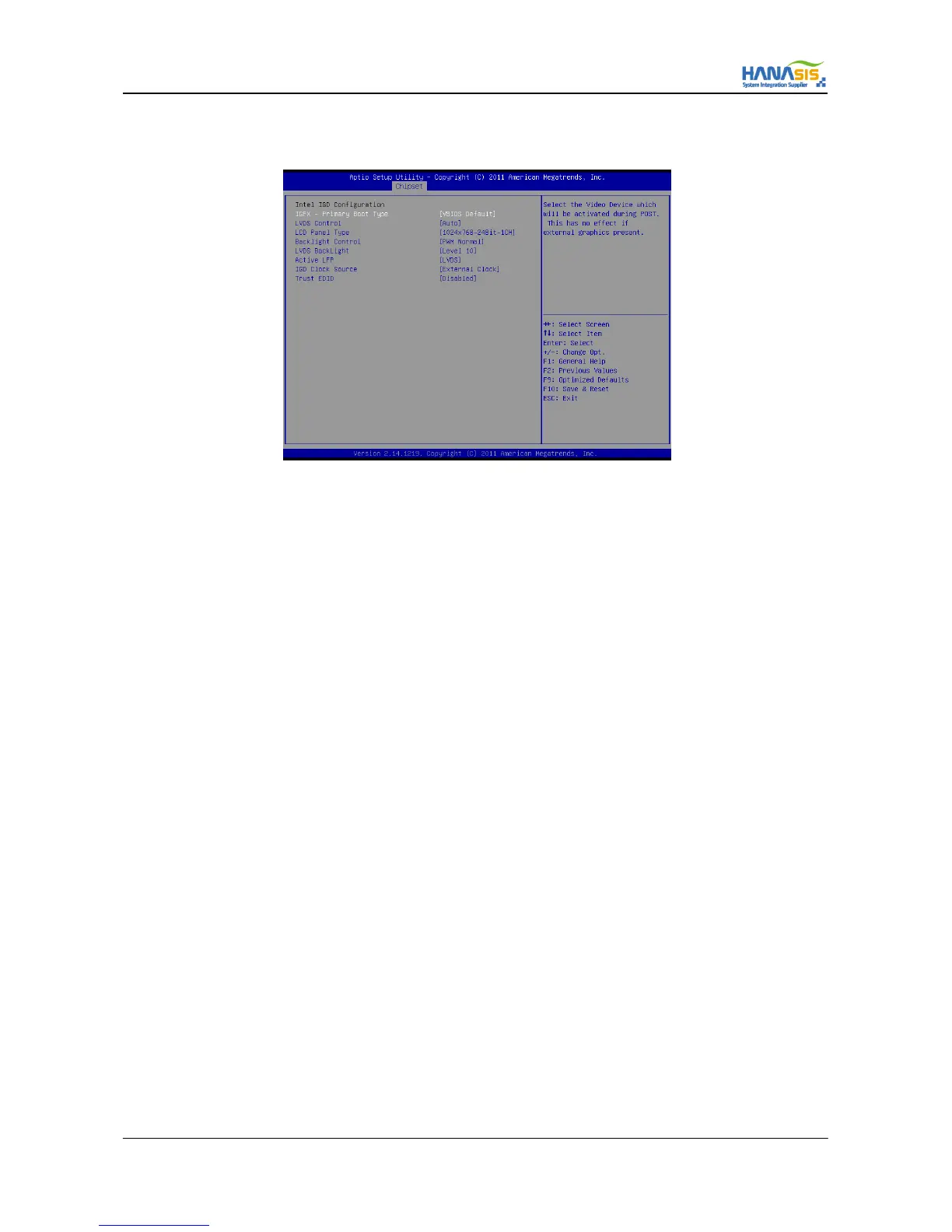

3.5 Chipset Screen
3.5.1 IGFX – Primary Boot Type
Use this to select primary internal graphics boot display. Configuration options : [VBIOS Default], [CRT] and [LFP].
The default value is [VBIOS Default].
3.5.2 LVDS Control
Use this to enable/disable or detect the LVDS. Configuration options : [Auto], [Enabled] and [Disabled]. The default value is [Auto].
3.5.3 LCD Panel Type
Use this to select panel type. (Resolution, Color Bit and Channel)
3.5.4 Backlight Control
Use this to adjust panel backlight brightness.
3.5.5 LVDS Backlight
Use this to adjust panel backlight brightness level. The default value is [Level10].
3.5.6 Active LFP
Use this to select the active LFP configuration. Configuration options : [No LVDS], [LVDS] and [EDP]. The default value is [LVDS].
3.5.7 IGD Clock Source
Use this to select the clock source.
3.5.8 Trust EDID
When some SSUs(Server Switch Units) return invalid EDID information, Please enable it. For these, turn this switch off.
