8 Selection software

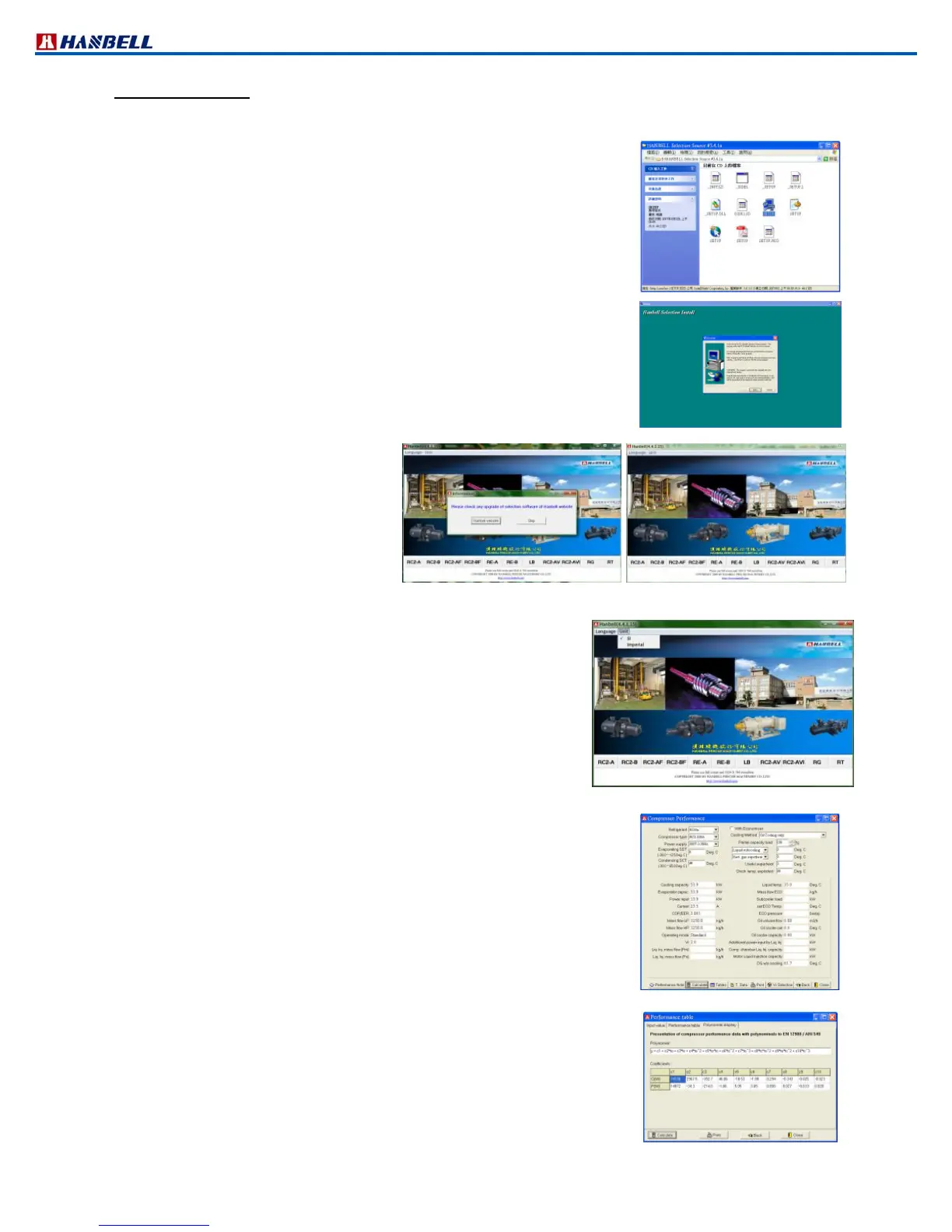

Selection software installation procedure
Step:
1. This compressor model selection software is suitable for the operating system
of Windows98, NT or the above edition (Windows ME, 2000, XP, 7, 8, 8.1, 10)
Systematic demand: The magnetic disc space should be at least 300MB.
2. Best resolution of browser please use the whole screen 800x600 degree.
3. Before installing this software, please close all the works and browser windows
firstly.
4. To the selection software files, please move the cursor to “setup.exe” and
double click.
5. And then it will present 「
「「
「welcome」
」」
」window, please select “next”
Then, 「
「「
「users information」
」」
」windows appear, please select “next” again
and then the windows appear 「
「「
「choose the purpose position」
」」
」
Finally please choose the file position, click the “next” button. (Default
recommends)
6. The software will decompress automatically.
ESP Operating Procedure:
Step:
1. Before operating our selection software,
please check any upgrade of selection
software at Hanbell website
2. Enter the main window and it will present
products of 「
「「
「RC2A」
」」
」, 「
「「
「RC2B」
」」
」, 「
「「
「RC2
AF」
」」
」 , 「
「「
「RC2BF」
」」
」 , 「
「「
「REA」
」」
」, 「
「「
「REB」
」」
」,
「
「「
「LB」
」」
」, 「
「「
「RC2AV」
」」
」, 「
「「
「RC2AVI」
」」
」, 「
「「
「RG」
」」
」, 「
「「
「RT」
」」
」 button of six series of Hanbell compressors.
3. After selecting「
「「
「RC2A」
」」
」, will present several function buttons:
(3.1) choose the unit, 「
「「
「SI」
」」
」or「
「「
「Imperial」
」」
」. (default unit is SI)
(3.2) 「
「「
「PERFORMANCE」
」」
」button shows the performance sheet of the
compressor
The above window is the operating mode of a compressor, just keyin the
following condition and then click the「
「「
「Calculate」
」」
」button.

 Refrigerant type
 With economizer (yes/no)
 Compressor model
 Oil cooler or liquid injection
 Power supply (default is 380V 3 50Hz)
 Partial load percent (%)
 Evaporating SST (˚C,˚F)(default is 0 ˚C)
 Condensing SCT (˚C,˚F)( default is 40 ˚C)
Showed the calculated performance data in the middle of the window.
In the lower part of the window, there are several kinds of buttons:
「
「「
「Calculate」
」」
」: Must click this key, to calculate the value.
「
「「
「Tables」
」」
」：Can calculate the coefficient of performance by means of polynomial.
「
「「
「T.Data」
」」
」：The technical data is the same with function key of technical data
「
「「
「Print」
」」
」： Copying the calculated performance data
「
「「
「Vi selection」
」」
」：After calculating, different Vi value can be chose by clicking this
button.
(3.2.1) Click「
「「
「Tables」
」」
」button and the window will appear right one (default
window), it can calculate the coefficient of performance using polynomial.
(3.2.2) Click the polynomial display button and then「
「「
「Calculate」
」」
」. Presentation
of compressor performance data using polynomial calculation.
