Handicare AP-300 - Hand Control and Display Symbols; AP-450 Lift Display Symbols

23

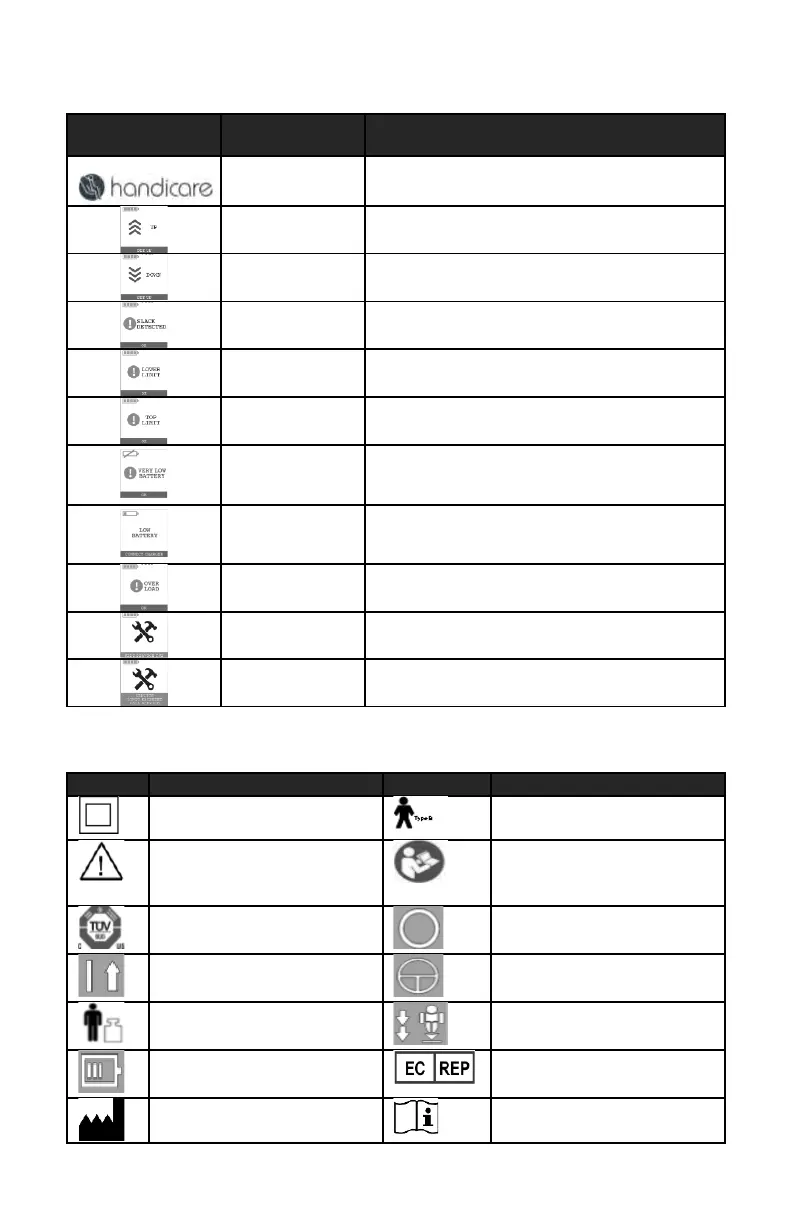

Hand Control Icons
Display Image
Details
Comments
Boot Up Icon
Lift is turning On by pressing any button of Hand
Control.
Up motion Icon
Lift is going up.
Real-time battery percentage also shown.
Down motion
Icon
Lift is going down.
Real-time battery percentage also shown.
Slack/Loose strap
Icon
Strap is slack/loose.
Real-time battery percentage also shown.
Lower Limit Icon
Lower limit reached.
Real-time battery percentage also shown.
Upper Limit Icon
Upper limit reached.
Real-time battery percentage also shown.
Battery Very Low
Icon
Battery is critically low.
Unit will lower but not raise.
Real-time battery percentage also shown.
Battery Low Icon
Battery is low.
Unit will still function.
Real-time battery percentage also shown.
Overload Icon
Lift is overloaded.
Real-time battery percentage also shown.
Service Due Icon
Lift has accumulated at least 1500 post PM cycles.
Service Limit
Exceeded
Lift has surpassed recommended cycles without
servicing
AP-450 Lift Display Symbols
Symbol
Definition
Symbol
Definition
Class II equipment
Type B applied part
Caution risk of danger or
Attention, consult
accompanying Documents
Refer to instructions
manual/booklet
Certified by TUV
Off Power
On Power
On/Off
Body Weight
EMERGENCY DOWN
Status LED’s for battery level
and system error indication
Authorized Representative in
European Community
Manufacturer
Refer to Instructions, Manual,
Booklet
