Lift Features

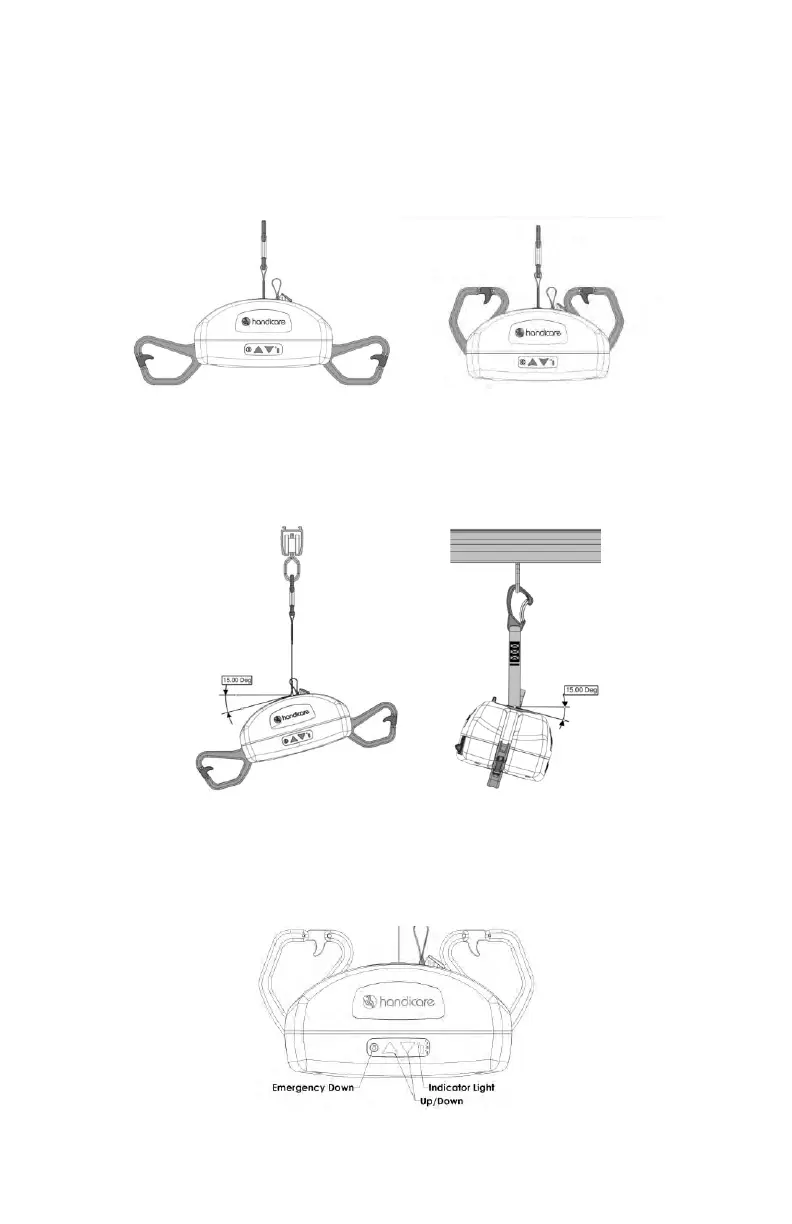

Pivoting Hooks
The AP-450 Ceiling lift has hooks that can be turned upwards for storage and transport. The
hooks must always be in the “DOWN” position when performing a lift. (Figure 5).
Figure 5: Left – Hooks down for lifting. Right – Hooks up for storage.
Tilt Control
The AP-450 is equipped with a tilt sensor that activates once the lift tilts past a certain angle,
restricting upward movement until the lift is adjusted. Tilt should be avoided as much as possible
during the lifting/transferring process.
Figure 6: Two Direction Tilt Sensor
Front Cover Membrane
Along with the hand control, the lift can be controlled with the membrane on the front cover of
the lift. The membrane includes Up/Down and Emergency Down buttons, as well as the indicator
light.
Figure 7: Front Cover Membrane
