Track assembly
6 MINIVATOR 2000 INSTALLATION MANUAL

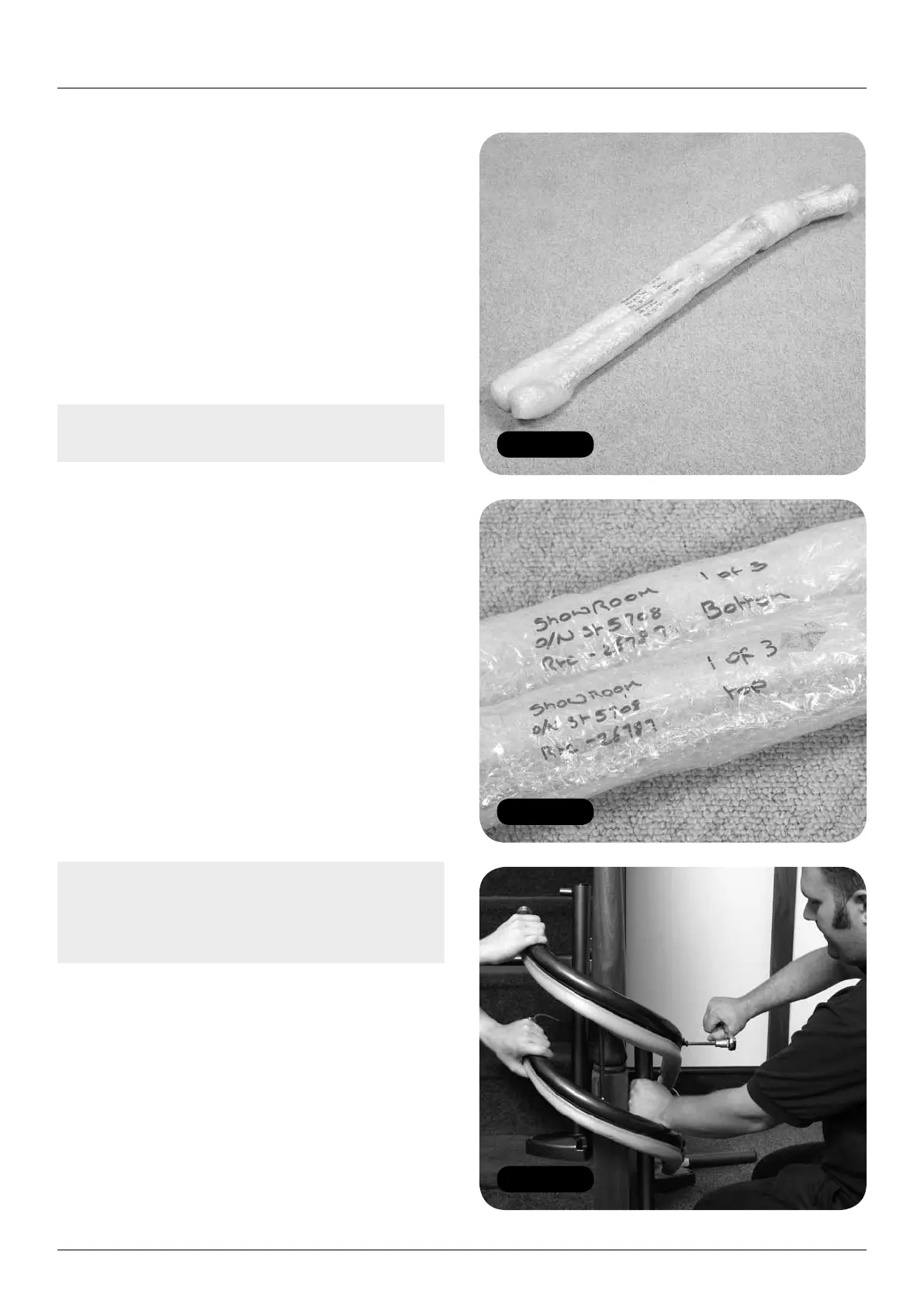

Figure 6
Figure 7
Figure 8
5 In the drawing shown in Appendix 4 the first
section is actually a straight section with a
gradient decrease section manufactured as a
single piece of track. The straight section (2)
has 44 teeth (44 S) and it is 484mm long.
The gradient decrease section (3) has 13
teeth (13 GD R665) and it is bent on a 665mm
radius. The protective packaging that the track
is delivered in will be marked to indicate the
track section or sections that it contains and
whether or not it is a top track or bottom track
section (Figures 6 and 7).
Note: Do not remove the blue rack protection
cover at this stage.
6 Unpack the correct section of track and
align the corresponding hole with the second
stanchion i.e. DO NOT FIT A BOLT IN TO
THE FIRST STANCHION AT THIS TIME.
7 Using an M10 bolt from the fitting kit, fix the
first section of track to the second stanchion
(Figure 8). In Appendix 4 this would be foot 12.
8 Repeat step 6, referring to the drawing for
detail, until the first track joint is reached.
9 Push the cable pull through the track section
from the bottom to the top.
10 Find the next section of track that is required.
In the example shown in Appendix 4 this
would be section 4, a 119 tooth, 1308mm
long straight section.
Note: To reduce the installation time required
some of the track may be delivered pre-
assembled. This will be marked on the
packaging.
11 Fit the two sections together ensuring that the
cable pull through is not trapped.
12 Use an alignment tool to align the holes
(Figure 9).
13 Connect the two sections of track together
using the supplied M10 bolts and nuts. To
avoid over tightening track bolts it is advised
that these bolts only be hand tightened to a
torque not exceeding 15Nm (Figures 10/11).
